Technical
Input Power
Rated input current (A)
Rated Output Current /Voltage/Duty Cycle
MMA Output (A)
No load loss (W)
Power factor

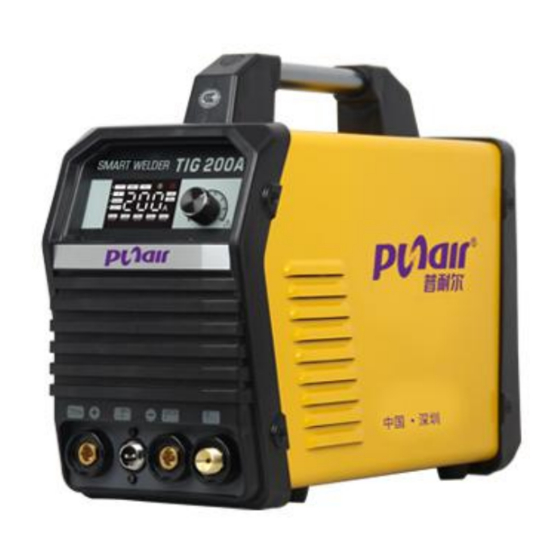

TIG200A
Top Features
High current range of 200 amps highly fit for the precision welding
MMA current range of 170 amps provides the ability to weld the 3.2 electrode
Multi-function: Continuous and Spot TIG,MMA process
Convenient LED operational interface. Automatically matching welding parameter
Overheat,over-current and over-voltage detection,anti-shock and anti-sticking functions
IP21S classification to ensure reliability in harsh and demanding environmental conditions
Parameters
220V(±15%)/1Ph/50HZ/60HZ
26
8-200A/18V/60%
30-170
40
≥0.7
1
Smart Welder-TIG Series
Technical
Efficiency (%)
Insulation grade
Housing protection grade
Net Weight (kg)
Dimensions H×W×D (mm)
Parameters
≥80
F
IP21S
6.25
400 x 159 x 300
Advertisement
Related Manuals for Punair TIG Series
Summary of Contents for Punair TIG Series
- Page 1 Smart Welder-TIG Series TIG200A Top Features High current range of 200 amps highly fit for the precision welding MMA current range of 170 amps provides the ability to weld the 3.2 electrode Multi-function: Continuous and Spot TIG,MMA process ...
- Page 2 Smart Welder-TIG Series Function description ①current adjustment knob Plate thickness indicator ②Press to switch functions Post Flow Digital ammeter Pre Flow Argon welding torch interface Current adjustment indicator Negative output terminal TIG welding light The welder controls the socket Manual welding indicator light...
- Page 3 Smart Welder-TIG Series INSTALLATION INSTRUCTION Long connecting cable can affect the ARC start character and stability of welding performance, so please use the recommended cable length, and in order to reducing the voltage down, please use the large cable face: 1.
