Summary of Contents for BURR KING BBA20

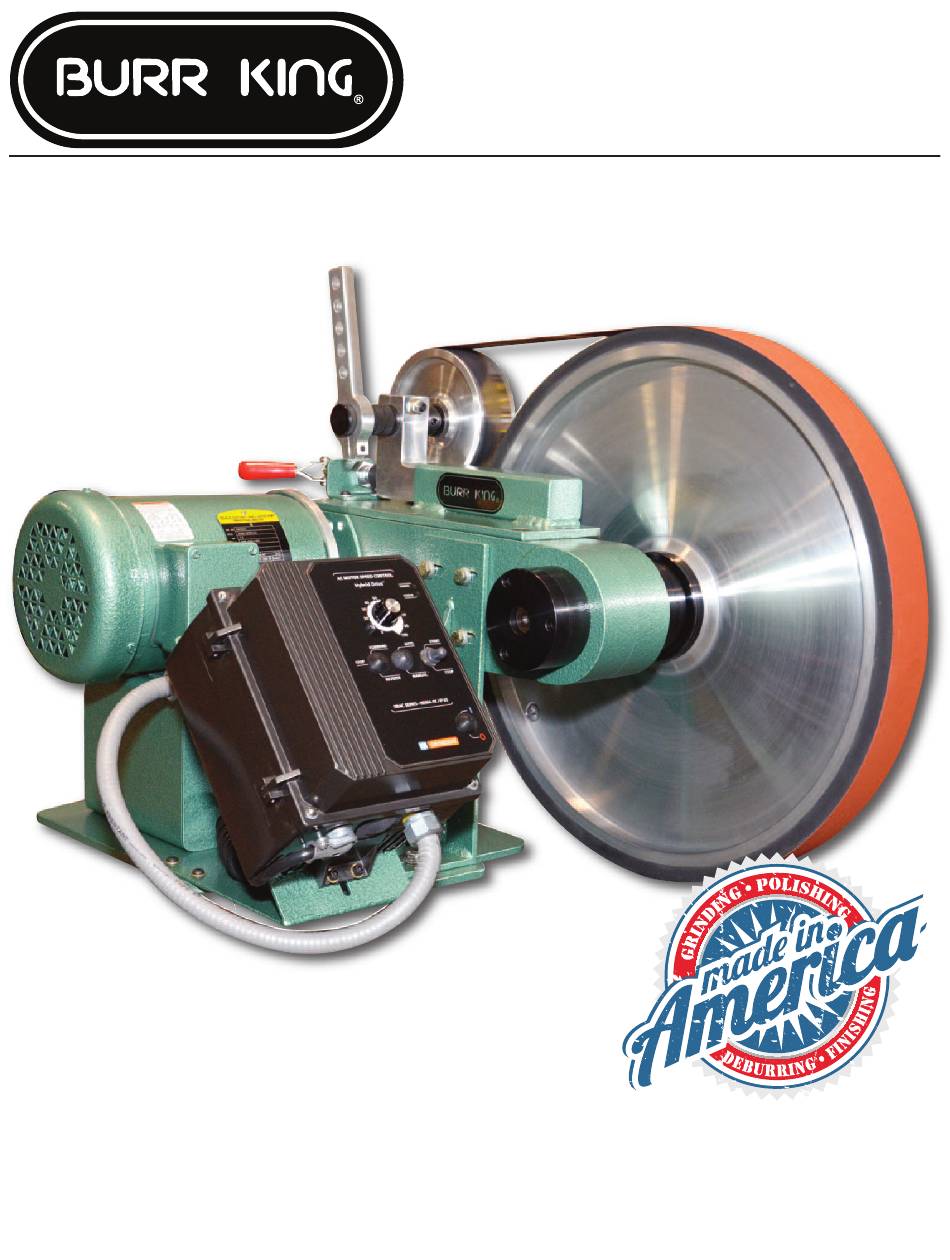

- Page 1 BURR KING MFG. CO., INC 1220 Tamara Lane Warsaw, MO 65355 www.burrking.com (660)438-8998 • Fax (660)438-8991 BBA20 I NSTRUCTION ANUAL M odel 98930 Show n BBA20 20” C ONTACT HEEL RINDER 10/ 2022...
- Page 2 Burr King BBA20 Congratulations on your purchase of a Burr King grinder. Please take a moment to complete and submit your product war- ranty registration card. Doing so will validate your machine’s warranty period and ensure prompt service if needed.
- Page 3 (660)438-8998 • Fax (660)438-8991 October 2022 LETTER OF AUTHENTICITY This letter is to certify that all Burr King Belt grinders, Disc grinders, Polishing machines Vibra King Chambers and Bowls are manufactured and assembled in the United States of America. (Tariff number 847990 criterion A)
- Page 4 *Motors, speed controllers, and certain other accessories are warranted by their respective manufacture. To receive warranty service on these items you must contact a brand label service center that supports the product in need of service. Burr King Manufacturing Company; Inc. will assist you in locating a service center.
- Page 5 BBA20 Important Safety Instructions OPERATOR, and OPERATING AREA SAFETY WARNING! WHEN USING ELECTRIC TOOLS, BASIC SAFETY PRECAUTION SHOULD ALWAYS BE FOLLOWED TO REDUCE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY. READ AND SAVE ALL INSTRUCTIONS FOR FUTURE REFERENCE Subject equipment includes Grinders, buffers, polishers, and other rotating equipment. Serious injury or death may occur if minimum safety precautions are not understood, and obeyed by operators and those other persons who may be in the immediate vicinity of the subject equipment.
- Page 6 King Manufacturing Companies standard warranty policy is summarized as follows for contact wheels. 1 year from date of purchase if mounted on a Burr King machine purchased on the same date or 90 days if purchased as a spare or replace- ment part.
- Page 7 Companies standard warranty policy is summarized as follows for contact wheels. 1 year from date of pur- chase if mounted on a Burr King machine purchased on the same date or 90 days if purchased as a spare or replacement part.
- Page 8 (660)438-8998 • Fax (660)438-8991 Variable Speed Controller Instruction Manual Addendum Congratulations on the purchase of your new Burr King. Your machine has been configured with a variable speed controller also know as a VFD (variable frequency drive) Your VFD operates on 120 volt single phase power.
- Page 9 Burr King has worked tirelessly with KB to develop a solution that solves the age old issues of ghost tripping with GFCI circuits. Please note that multiple configures don’t always return the optimal results. Depending on many factors, when using the controller during GFCI operation, you may notice increased audible motor noise.
- Page 10 NOTE: With all the variables, it is still possible that your controller may not work properly with the GFCI protected outlet. The final resort is to purchase an approved GFCI outlet. The outlet can be purchased thru Burr King Manufacturing. The part number is 9950-1.
- Page 11 15. Contact Wheel: The contact wheel is now ready to be mounted to the shaft of the BBA20. Remove contact wheel from the shipping container and mount to the shaft of the BBA20. The wheel is stamped with a part number and that number should be facing you as you gently slide the wheel on to the shaft.
- Page 12 Burr King’s legendary 960-272 Knifemaker’s Grinder. Your new BBA20 may be fixed or variable speed, single of three phase and have a motor other than a 1.5 HP motor. This manual focuses on the SKU 98930. The 98930 is a 1.5 HP, variable speed, 120 volt, single phase machine.
- Page 13 Functional operating instructions for the BBA20 Belt Grinder The BBA20 was fully tested and verified to comply with requirements prior to shipping from the factory. No adjustments should be necessary. You should perform the following steps: 1. Machine securely bolted to its table, pedestal, and/or floor point connect the AC power to its source.
- Page 14 Do not reach inside the safety guards while the machine is running. To do so is hazardous. Do not use fluids in your finishing process unless your BBA20 is designed for liquid operation (NEMA 4, 4X). To do so may create an electrical safety hazard.
- Page 15 MODEL BBA20 FOOTPRINT 20.00 21.61 9.79 20.51 SIDE VIEW FRONT VIEW 29.32 MOUNTING HOLE PATTERN 7.75 7.25 .39 THRU SEPTEMBER 2022 BOTTOM VIEW *Footprint for 98930 shown your machine may vary...
- Page 16 MODEL BBA20 EXPLODED VIEW 48 49 41 50 48 41 42 33 56 44 9 52 12 SEPTEMBER 2022 98930 Shown...
- Page 17 MODEL BBA20 PARTS LIST *BOM for 98930 shown your machine may vary ITEM NO. PART NUMBER DESCRIPTION QTY. ITEM NO. PART NUMBER DESCRIPTION QTY. 1054 PLATE-BASE SPRING-BELT TENSION 99-0025 SUPPORT-MOTOR 7-0017 SET SCREW 1/2-13 x 1 CP 150B-1725C MOTOR-1.5 HP 3PH 56C 99-0075 SHIM 002-.010 (TO FIT)
