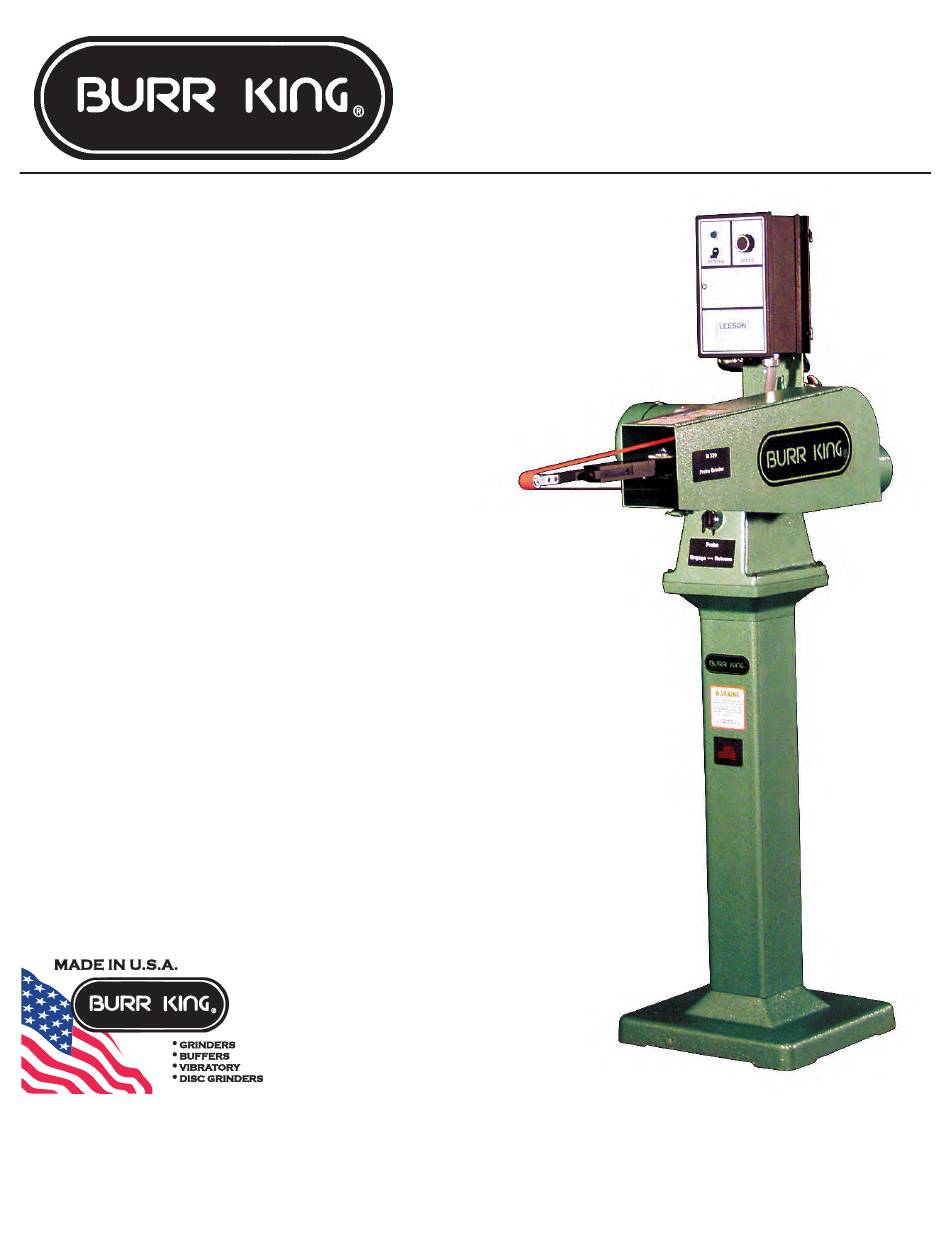

- Page 1 BURR KING MFG. CO., INC 1220 Tamara Lane Warsaw, MO 65355 www.burrking.com (660)438-8998 • 800-621-2748 Fax (660)438-8991 ODEL NSTRUCTION ANUAL Model 16110 with optional pedestal ODEL ROBE RINDER...
- Page 2 *Motors, speed controllers, and certain other accessories are warranted by their respective manufactures. To receive warranty service on these items you must contact a brand label service center that supports the product in need of service. Burr King Manufacturing Company; Inc. will assist you in locating a service center.
- Page 3 FAX (660) 438-8991 August 29, 2007 LETTER OF AUTHENTICITY This letter is to certify that all Burr King Belt grinders, Disc grinders, Polishing machines Vibra King Chambers and Bowls are manufactured and assembled in the United States of America. Tariff number 847990 criterion A)
- Page 4 BURR KING MFG. CO., INC. 1220 TAMARA LANE WARSAW MO 65355 WWW.BURRKING.COM (660) 438-8998 (800) 621-2748 FAX (660) 438-8991 February 2005 OPERATOR, and OPERATING AREA SAFETY Subject equipment includes Grinders, buffers, polishers, and other rotating equipment. Serious injury or death may occur if minimum safety precautions are not understood, and obeyed by operators and those other persons who may be in the immediate vicinity of the subject equipment.
- Page 5 Manufacturing Companies standard warranty policy is summarized as follows for contact wheels. 1 year from date of purchase if mounted on a Burr King machine purchased on the same date or 90 days if purchased as a spare or replacement part. Our warranty does not apply to wheels that are mounted on products not manufactured by Burr King Manufacturing Company, Inc.
- Page 6 Noise levels produced by various Burr King grinders and polishers, as measured at the Burr King factory, range from 80 to 93 decibels. Product operators and persons in the immediate product vicinity should be protected from excessive noise does levels as prescribed in OSHA regulation 29, piece 1910.95 titled “Occupational Noise Exposure”.
- Page 7 Operating instructions for the Model 720 belt grinder February 2007 Picture 1: Shown, a model 720 with optional 4 inch diameter wheel, variable speed, with remote control console. Note guard door is closed and latched. The model 720 belt grinder is a two wheel path belt grinder that uses a 2 x 72-inch continuous loop abrasive belt.
- Page 8 720. 5. Note the air controls that are mounted either in the base of the model 720 or in an attached console. The function of each control is described by control labeling ( see picture 3). With these controls you can retract the front wheel to remove and install abrasive belts, adjust the speed of probe extension, and adjust the speed of probe retraction.
- Page 9 The model 720 is available in fixed and variable belt speed models. The drive wheel of the fixed speed model turns at 3450 RMP which is a standard electric motor speed. Using nose wheels smaller than 1 ½ in diameter is not recommended on fixed speed models as the resultant nose wheel rpm may exceed the speed rating of the nose wheel bearings thus shortening wheel life.
- Page 10 Do not reach inside the safety guards while the machine is running. To do so is hazardous. Do not use fluids in your grinding process unless your model 720 is designed for liquid operation (NEMA 4, 4X). To do so may create an electrical safety hazard.
- Page 11 BURR KING 3 TAMARA LANE WARSAW, MO. 65355 MODEL 720 PROBE GRINDER MOTOR HP AND CONFIGURATIONS VARY, CALL FACTORY 02-21-07 ITEM PART NUMBER DESCRIPTION QTY. 7200 FRAME, MAIN 7203 GLIDE, DELRIN 1443 ARM, WHEEL MOUNT MOTOR, MODEL 120/220/1PH/1.5HP WHEEL, CONTACT 1.5 X 2.0 SIMULATION...
