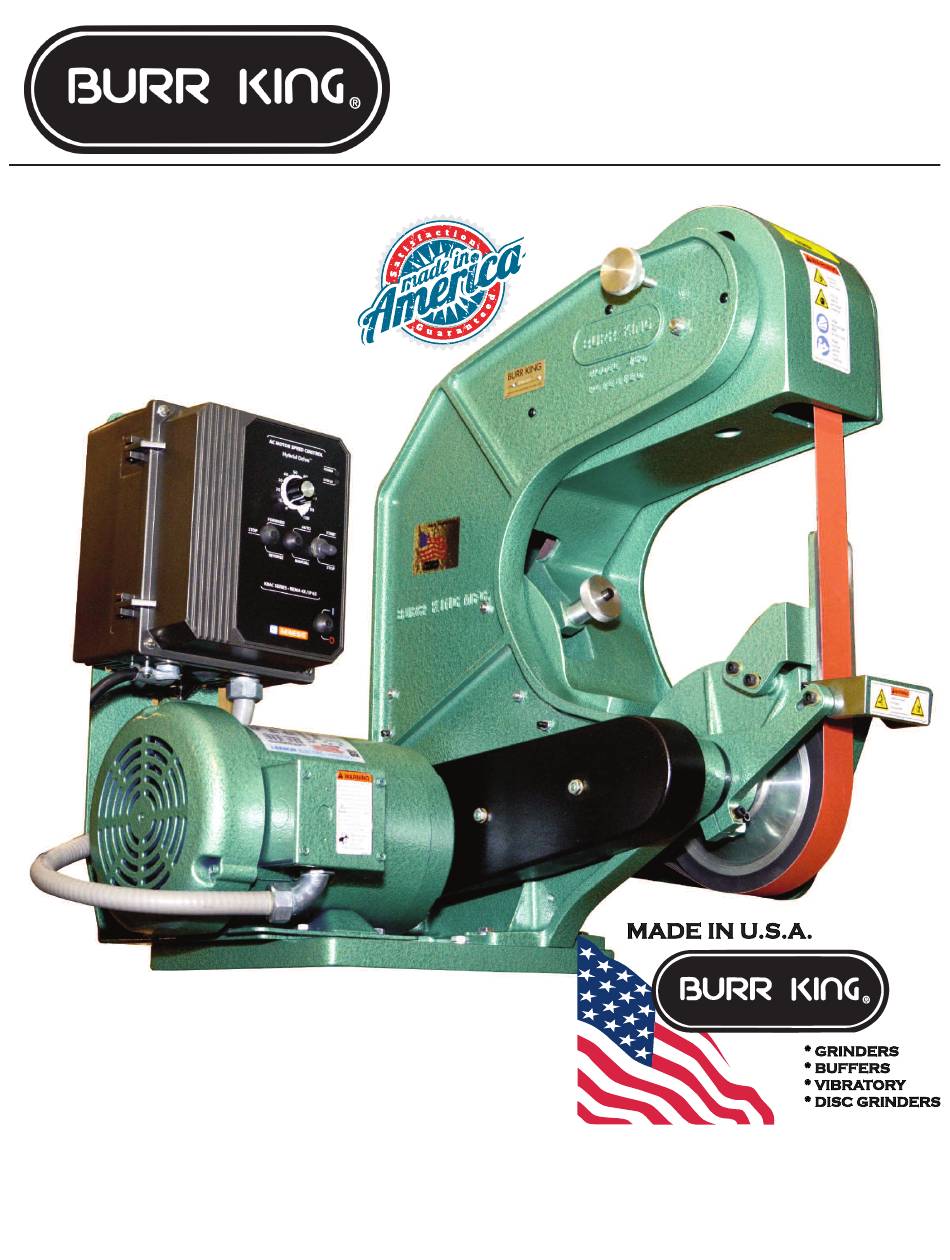

- Page 1 BURR KING MFG. CO., INC 1220 Tamara Lane Warsaw, MO 65355 www.burrking.com (660)438-8998 • 800-621-2748 Fax (660)438-8991 ODEL NSTRUCTION ANUAL Model 72110 Shown ODEL HREE HEEL RINDER...
- Page 2 *Motors, speed controllers, and certain other accessories are warranted by their respective manufactures. To receive warranty service on these items you must contact a brand label service center that supports the product in need of service. Burr King Manufacturing Company; Inc. will assist you in locating a service center.
- Page 4 BURR KING MFG. CO., INC. 1220 TAMARA LANE WARSAW MO 65355 WWW.BURRKING.CO (660) 438-8998 s (800) 621-2748 FAX (660) 438-8991 February 2005 OPERATOR, and OPERATING AREA SAFETY Subject equipment includes Grinders, buffers, polishers, and other rotating equipment. Serious injury or death may occur if minimum safety precautions are not understood, and obeyed by operators and those other persons who may be in the immediate vicinity of the subject equipment.
- Page 5 Manufacturing Companies standard warranty policy is summarized as follows for contact wheels. 1 year from date of purchase if mounted on a Burr King machine purchased on the same date or 90 days if purchased as a spare or replacement part. Our warranty does not apply to wheels that are mounted on products not manufactured by Burr King Manufacturing Company, Inc.
- Page 6 Noise levels produced by various Burr King grinders and polishers, as measured at the Burr King factory, range from 80 to 93 decibels. Product operators and persons in the immediate product vicinity should be protected from excessive noise does levels as prescribed in OSHA regulation 29, piece 1910.95 titled “Occupational Noise Exposure”.
- Page 7 Operating instructions for the Model 760 belt grinder The model 760 belt grinder is a three wheel path belt grinder that uses either a 1 1/2 x 60 inch or a 2 x 60 inch continuous loop abrasive belt. When fit with a model 1400, 1401, 1402, 1411 or 1412 internal grinding attachment (optional) the belt width ranges from 1/2 to 2 inches (depending on the internal grinding attachment model in use), and the belt length changes to 72 inches.
- Page 8 Functional operating instructions for the model 760 belt grinder The model 760 was fully tested and verified to comply with requirements prior to shipping from the factory. You should perform the following steps: 1. With the machine securely bolted to its table, pedestal, and/or floor point connect the AC power to its source.
- Page 9 Do not mix alloys in your grinding. To do so may create an explosion/fire hazard. Do not use stone or vitreous wheels on the model 760. To do so will create an operator safety hazard. Do use eye, hand, face, arm, leg, feet and body protection that is adequate to protect against flying debris, forcibly ejected work pieces, broken abrasive belts, etc.
- Page 10 760 prior to mid 1999 was shipped with wheels that are 1.75 inches wide. Currently, model 760 machines are shipped with wheels that are 2.0 inches wide. The 1.5 and 2.0 inch wheels may be interchanged and/or mixed; however, if they are mixed their widths must be taking into account when performing this alignment.
- Page 11 BURR KING MODEL 760 PARTS LIST 1220 TAMARA LANE WARSAW, MO. 65355 61 66 65...
- Page 12 * NOTICE: BOM PROVIDED IS FOR SKU 70100 - SOME ITEMS MAYBE MODEL 760 DIFFERENT ON YOUR MACHINE. CALL FACTORY WITH YOUR MACHINE BURR KING SKU TO VERIFY PART FITMENT PARTS LIST 1220 TAMARA LANE MAIN BODY LIST ITEM 39 LIST - 745/QUICK CHANGE ITEM 32 LIST - 712/TRACKING ASSEMBLY WARSAW, MO.
- Page 13 MAG STARTER BURR KING PARTS LIST 1220 TAMARA LANE WARSAW, MO. 65355...
- Page 14 BURR KING 1220 TAMARA LANE WARSAW, MO. 65355 MAG STARTER ITEM NO. PART NUMBER DESCRIPTION QTY. MB-4C BRACKET, MOUNTING, STARTER MOTOR CALL FACTORY FOR PART NUMBER WASHER, 5/16 SAE ZINC PLTD BOLT, 5/16-18x3/4 HEX HEAD WASHER, 1/4 AN SCREW, 1/4-20 X 3/4 ALLEN HEAD...
-
Page 15: Single Phase
VARI SPEED BURR KING SINGLE PHASE 1220 TAMARA LANE WARSAW, MO. 65355 3/4-1 HP 1.5-3 HP... - Page 16 VARI SPEED BURR KING ITEM NO. PART NUMBER DESCRIPTION QTY. 1220 TAMARA LANE MB-4C BRACKET, MOUNTING, STARTER WARSAW, MO. 65355 941-3 BRACE, MB4 SUPPORT 5-0032 WASHER, 1/4, LOCK, SPLIT, PLTD WASHER, 5/16 SAE ZINC PLTD SCREW, 1/4-20 X 3/4 ALLEN HEAD...
-
Page 17: Line Drawing
M760 BURR KING LINE DRAWING 1220 TAMARA LANE WARSAW, MO. 65355 11.25 22.25 8.75 NOTE: - ALL DIMENSIONS .375 ARE IN INCHES 6.175 (3) PLCS TOP VIEW MOUNTING PATTERN 25.50 9.75 12.25 SIDE VIEW FRONT VIEW...
