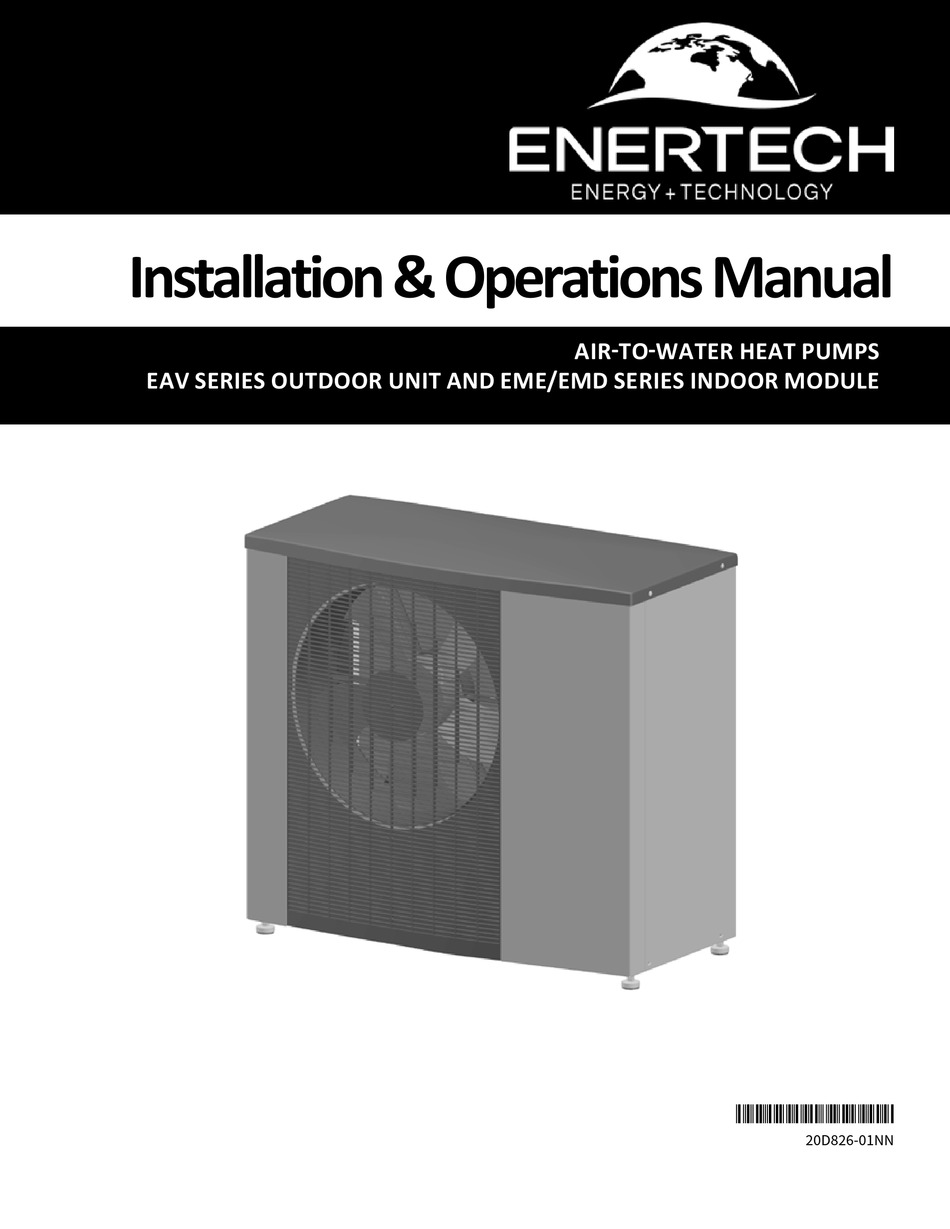

- Page 1 Installation & Operations Manual AIR-TO-WATER HEAT PUMPS EAV SERIES OUTDOOR UNIT AND EME/EMD SERIES INDOOR MODULE 20D826-01NN 20D826-01NN...
-
Page 2: Table Of Contents
Section 1: Unit Nomenclature Model Nomenclature - EAV Series Unit ..............................4 Model Nomenclature - EME/EMD Series Unit ............................4 Section 2: Installation Introduction Inspection ........................................5 Pre-Installation Steps ....................................5 Section 3 - Installation Considerations Advantage Operating Envelope ................................. 6 Refrigerant Circuit - Cooling Mode ................................ - Page 3 Heating Zones ......................................71 Diagram HTGCLG-5: Heating/Cooling - Multiple Fan Coils - No Radiant (All fan coils are Enertech MPH series) ........72 Diagram HTGCLG-6:Heating/Cooling - Multiple Fan Coils - No Radiant (at least one fan coil has Y/W inputs)* ........73 Heating/Cooling - Controls to be used when a Buffer Tank is installed (at least one fan coil is smaller than 2 tons) ......
-
Page 4: Section 1: Unit Nomenclature Model Nomenclature - Eav Series Unit
1 = 208/230V, 60Hz, 1Ph (Residential) Unit Capacity (Nominal MBTUH): PROPRIETY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ENERTECH GLOBAL, LLC. 000 = All Sizes ANY REPRODUCTION IN PART OR AS A WHOLE, WITHOUT WRITTEN CONSENT, IS PROHIBITED. -
Page 5: Section 2: Installation Introduction
Unit Protection and Storage Enertech Global has set forth this policy to ensure installations Protect units from damage and contamination due to plastering of Enertech Global systems are done safely and properly. The... -
Page 6: Section 3 - Installation Considerations Advantage Operating Envelope
Section 3 - Installation Considerations Advantage Operating Envelope Operating Range (Heating Mode) Supply Temperature Supply Temperature Safety Buffer Return Temperature ‐20 Outdoor Temperature ( Operating Range (Cooling Mode) Supply Temperature Return Temperature Outdoor Temperature ( EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 7: Refrigerant Circuit - Cooling Mode
Section 3 - Installation Considerations EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 8: Refrigerant Circuit - Heating Mode
Section 3 - Installation Considerations EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 9: Refrigerant Circuit - Vapor Injection Heating Mode
Section 3 - Installation Considerations EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 10: Refrigerant Circuit - Active Defrost Mode
Section 3 - Installation Considerations EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 11: Refrigerant Circuit - Passive Defrost Mode
Section 3 - Installation Considerations EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 12: Eav Series Outdoor Unit Labels
Section 3 - Installation Considerations EAV Series Outdoor Unit Labels Thermistor, Outdoor Air Coil Electrical Connection Load Out to Indoor Module Connection Piping Connections Label Thermistor Air Coil Condensate Drain Pan (BT16) Connection Load In from Indoor Module Connection Condensate Drain Pan... -
Page 13: Eav Series Outdoor Unit Controls
Section 3 - Installation Considerations EAV Series Outdoor Unit Controls Compressor Control (TCB Board) Thermistor, Suction-Evap (Heating) (BT84) Thermistor, Load Out to Indoor Module (BT12) Thermistor, Vapor Injection Line (BT81) Vapor Injection Pressure Transducer (BP11) L E K Thermistor, Load In from... -
Page 14: Eav Series Outdoor Unit Refrigerant Circuit
Section 3 - Installation Considerations EAV Series Outdoor Unit Refrigerant Circuit Solenoid Valve Refrigeration Strainer Connection, Fluid to Indoor Unit Check Valve Brazed Plate Heat Exchanger EEV, Subcooler L E K Connection, Fluid from Indoor Unit Compressor Service Port, Filter Drier... -
Page 15: Eme/Emd Indoor Module Cabinet Details
EM Indoor Module Cabinet Details - Front Right Side Power Supply (High Voltage) Out to Hydronic Zones Out to Hot Water Tank In from Outdoor Unit Out to Outdoor Unit To Remove Panel Remove (3) screws EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 16: Eav Outdoor Unit Side Panel Removal
When removing panels, pay special attention to the cabinet insulation. Interlocking insulation extends behind the front plastic fan grate. If needed, remove left corner panel and front plastic fan grate to remove insulation. EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... - Page 17 Immersion Heater Bypass Valve Water Solenoid Valves Circulation Pump Flow Meter Flush Valves Expansion Tank Y-Strainer EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual...
-
Page 18: Unit Placement
This manual describes installation and service procedures for implementation by Enertech trained specialists. This is an original manual. It may not be translated without the approval of Enertech. We reserve the right to make design modifications without prior notice. Balance Point Temperature The balance temperature is the outdoor temperature when the heat pump’s stated output is equal to the building’s input... -
Page 19: Care
• Ensure that the heat pump cannot be damaged during cause condensation, which can lead to moisture damage on the transportation. roof, floor, furniture, and valuable personal property. EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 20: Installation Area
Notice the location of the controls and the compressor towards the right side of the unit. See the illustration below for further details. Note: “Free Space” is in inches. Figure 2: Minimum Clearance Requirement EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 21: Assembly
Do not place the unit directly on the lawn or other non-solid surface. See illustration below. Figure 5: Protection from Ice/Snow Figure 3: Placing Outdoor Unit Figure 4: Snow Stand (available in 12” and 18” models) EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 22: Condensation
400 lbs so lift accordingly using plenty of help as needed. stretch possible is used. Recommended installation for proper draining of condensation. Front View Back View Condensate Drain Figure 6: Condensate Draining EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 23: Overview
Therefore, air vent, pressure reducing valve, and backflow preventer. Enertech recommends that fan coils two tons and larger are In addition, an automatic air vent should be located at the used with variable speed heat pumps. A buffer tank is required highest point in the piping system. -
Page 24: Components Needed For Enertech Recommendations
Based electric heat in the fan coil. upon Enertech lab testing, draws of 5 gpm for a sustained period from the water heater will cause the supply temperature at the fixture to drop. -
Page 25: Section 4: Dimensional And Physical Data Outdoor Unit Weight And Dimensional Data
Note: All dimensions are in inches. EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual ◊ ENERTECH GLOBAL, LLC ... -
Page 26: Indoor Unit Weight And Dimensional Data
Note: All dimensions are in inches. EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual ... -
Page 27: Hot Water Capacities‡ And Tank Dimensions
* First hour rating (in gallons per hour) is the amount of hot water a fully heated tank can deliver in one hour. ** Recovery is the volume (in gallons) that can be heated in one hour from initial water temperature on the cold line to the temperature rise specified by the manufacturer. Enertech uses a 60 F temperature rise. -
Page 28: Section 5: Electrical Data
This will ensure that no adverse effects occur, such as light dimming and/or shortened compressor life. 3. All fuses class RK-5. 4. Min/Max Voltage: 208/230/60 = 187-252 EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 29: Section 6: Unit Piping Installation Outdoor Application
Load out of Outdoor unit and into Indoor Module Load In to Outdoor unit from Indoor Module Figure 7: Outdoor Unit Installation Overview EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 30: Pipe Connections
1-5/8” Insulation included with Flex Tubing kit. 12 feet total. Figure 9b: Stainless Steel Flex Tube Installation with Required Backup Wrench Figure 9a: Flex Tubing and Tubing Insulation EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 31: Piping Connections
Separator or Bu er Tank From Hydraulic Valve Closed Separator or Bu er Tank From Outdoor Unit To Outdoor Unit Figure 10b: Flow Paths - Heating or Cooling EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 32: Preparation
Under normal operating conditions the home owner does not need to have access to the controller. Start-up and Inspection EAV communicates with the Enertech indoor module/control 1. Communication cable, terminal block (X22:1-4) must be module, which means that all settings and measurement values connected. -
Page 33: Load Piping
They help remove any micro- to each manifold/zone/circuit or distribution device. Enertech bubbles still remaining after purging and filling. The expansion recommends zone valves have a CV rating of 8.9 or higher to... -
Page 34: Piping Diagram - Piping Between Outdoor Unit And Indoor Module
Other methods, such as Link-Seal hydrostatic seals are acceptable, as well. Foundation or Wall End of Pipe Sleeve Must Be a Minimum of 1” Beyond Wall EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 35: Piping Diagram - Indoor Module With Hydraulic Separator
9. Always check local code requirements to ensure that the installation meets current regulatory standards. REGULATORY STANDARDS. Figure 12b: Piping Diagram - Indoor Module with Hydraulic Separator OPTIONAL NON-PRESSURIZED EAV - EME/EMD Rev. A Models Enertech Global FLOW CENTER Installation and Operations Manual... -
Page 36: Piping Diagram - Indoor Module With Buffer Tank
ALWAYS CHECK LOCAL CODE REQUIREMENTS TO ENSURE THAT THE INSTALLATION MEETS CURRENT REGULATORY STANDARDS. Figure 12c: Piping Diagram - Indoor Module with Buffer Tank OPTIONAL EAV - EME/EMD Rev. A Models NON-PRESSURIZED Enertech Global Installation and Operations Manual FLOW CENTER... -
Page 37: Piping Diagram - Indoor Module With Backup Boiler
Figure 12d: Piping Diagram - Indoor Module with Backup Boiler IN THE PREVIOUS DRAWING. 6. BOILER MAY HAVE INTERNAL PUMP (EXTERNAL PUMP SHOWN). 7. BOILER MANUFACTURER REQUIREMENTS AND LOCAL CODE REQUIREMENTS SUPERCEDE ANY RECOMMENDATIONS IN THIS DOCUMENT EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 38: Anti-Scald Valve Piping Connections
PHYSICAL INJURY IN THE FORM OF SCALDING OR BURNS. AN ANTI-SCALD VALVE MUST BE INSTALLED AT THE HOT WATER TANK OUTLET WITH THE VALVE SETTING PROPERLY ADJUSTED TO PREVENT SCALDING OR BURNS. EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 39: System Accessories Selection Table
Differential bypass valve ADBV4A Use on hydronic side of hydraulic separator Air Handler(s) See Notes Review Enertech price books for MPH Series air handers Radiant Tubing/Accessories See Notes Review Enertech price books for Infloor products Optional elect. or gas wtr htr... -
Page 40: Flow Rates And Piping Sizing
• Enertech recommends “Home Run” style piping (see Figure Example: 12e) to help facilitate air removal, but also for ease of access System includes a model 060 heat pump with one 3 ton fan coil to the zone valves. -
Page 41: Piping Diagram - Flow Rates And Piping Sizing
Figure 12f: Diagram for Example on Previous Page LEGEND FIELD FIELD ΔP PRESSURE DIF. PRESSURE EAV - EME/EMD Rev. A Models 3-WAY FLUSH WYE STRAINER Enertech Global REDUCING VLV BYPASS VALVE VALVE Installation and Operations Manual AUTOMATIC ISOLATION BALL PRESSURE BACK-FLOW AIR VENT... -
Page 42: Piping Diagram - Flushing Outdoor Unit Heat Exchanger And Piping
ADAPTERS IF USING GARDEN HOSES. “OFF” TO “OFF” TO THE TOP THE TOP FLUSHING HOSES (MUST FLOW IN DIRECTION OF STRAINER) Figure 13a: Flushing Outdoor Unit Heat Exchanger and Piping EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 43: Piping Diagrams - Flushing Hot Water Tank
LOAD IN NOTE: SWITCH HOSES TO OPEN DIRECTION OF NORMAL FLOW. CLOSED FLUSHING FROM LOOP LOOP HOSES FIELD FIELD Figure 13b: Flushing Hot Water Tank FLUSH VALVE < EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 44: Piping Diagram - Flushing Piping Between Indoor Module & Hydraulic Separator
DHW IN LOAD LOAD IN CLOSED FROM FLUSHING LOOP LOOP HOSES FIELD FIELD Figure 13c: Flushing Piping Between Indoor Module & Hydraulic Separator FLUSH VALVE < EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual OPTIONAL NON-PRESSURIZED... -
Page 45: Piping Diagram - Flushing Piping In Indoor Module
THE BOTTOM DHW IN LOAD LOAD IN CLOSED FROM FLUSHING LOOP LOOP HOSES FIELD FIELD Figure 13d: Flushing Piping in Indoor Module FLUSH VALVE < EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual OPTIONAL NON-PRESSURIZED FLOW CENTER... -
Page 46: Piping Diagram - Flushing Piping On The Other Side Of Hydraulic Separator, Step 1
LOAD OUT DHW OUT COLD DHW IN LOAD LOAD IN CLOSED Figure 13e: Flushing Piping on the Other Side of Hydraulic Separator, Step 1 LOOP FIELD FLUSH VALVE EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual <... -
Page 47: Piping Diagram - Flushing Piping On The Other Side Of Hydraulic Separator, Step 2
CLOSED LOAD OUT DHW OUT Figure 13f: Flushing Piping on the Other Side of Hydraulic Separator, Step 2 COLD DHW IN LOAD LOAD IN LOOP FIELD EAV - EME/EMD Rev. A Models Enertech Global FLUSH Installation and Operations Manual VALVE... -
Page 48: Piping Diagram - Flushing Zone 1 Radiant Floor Piping
“OFF” TO THE HOSES BOTTOM CLOSED LOAD OUT DHW OUT Figure 13g: Flushing Zone 1 Radiant Floor Piping COLD DHW IN LOAD LOAD IN LOOP FIELD FLUSH VALVE EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 49: Piping Diagram - Flushing Zone 2 Radiant Floor Piping
“OFF” TO THE HOSES BOTTOM CLOSED LOAD OUT DHW OUT Figure 13h: Flushing Zone 2 Radiant Floor Piping COLD DHW IN LOAD LOAD IN LOOP FIELD FLUSH VALVE EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 50: Piping Diagram - Flushing Air Handler (Fan Coil)
FLUSHING “OFF” TO THE HOSES BOTTOM CLOSED LOAD OUT DHW OUT Figure 13i: Flushing Air Handler (Fan Coil) COLD DHW IN LOAD LOAD IN LOOP FIELD FLUSH VALVE EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 51: Piping Diagram - Flushing Hydronic Piping System
CLOSED FLUSHING “OFF” TO THE HOSES BOTTOM CLOSED LOAD OUT DHW OUT Figure 13j: Flushing Hydronic Piping System COLD DHW IN LOAD LOAD IN LOOP FIELD FLUSH EAV - EME/EMD Rev. A Models Enertech Global VALVE Installation and Operations Manual... -
Page 52: Piping Diagram - Flushing Boiler Piping
BOILER IF THE RIGHT APPLICABLE CLOSED SYSTEM PUMP LOAD OUT DHW OUT Figure 13k: Flushing Boiler Piping COLD DHW IN LOAD LOAD IN LOOP FIELD FLUSH VALVE EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual <... -
Page 53: Piping Diagram - Final Position Of Valves
“OFF” TO FLUSH PORT “OFF” TO DHW IN FLUSH PORT LOAD LOAD IN OPEN CLOSED FROM Figure 13l: Final Position of Valves LOOP LOOP FIELD FIELD FLUSH VALVE < EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 54: Section 7: Water Quality & Antifreeze Load Side Antifreeze
Natural Resources or your local municipality can direct you to the proper testing agency. Please see Table 3 for guidelines. Also, once the system has been flushed and filled, Enertech recommends the use of Fernox F1 (Enertech P/N: F-57880) water treatment products in order to keep the system clean and running smooth for years to come. -
Page 55: Water Quality Table
4. Saltwater applications (approx. 25,000 ppm) require secondary heat exchangers due to copper piping between the heat exchanger. the table. Secondary heat exchangers are required for pool or other applications not meeting the 5. Filter for maximum of 600 micron size. requirements shown above. 4. Saltwater applications (approx. 25,000 ppm) require secondary heat exchangers due to copper piping Table 3: Water Quality Table between the heat exchanger. 5. Filter for maximum of 600 micron size. EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 56: Antifreeze Characteristics
LOOP ANTIFREEZE MUST BE NON-FLAMMABLE. NEVER OPERATE WITH HYDRONIC LOOP FLOW RATES LESS THAN SPECIFIED. CONTINUOUS OPERATION AT LOW FLOW OR NO FLOW MAY CAUSE SEVERE DAMAGE AND MAY VOID WARRANTY. EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 57: Specific Gravity Table
ANTIFREEZES AND VAPORS. USE ONLY IN A WELL VENTILATED AREA. DO NOT SMOKE WHEN HANDLING FLAMMABLE SOLUTIONS. FAILURE TO OBSERVE SAFETY PRECAUTIONS MAY RESULT IN FIRE, INJURY, OR DEATH. NEVER WORK WITH 100% ALCOHOL SOLUTIONS. EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 58: Antifreeze Charging
This is a warranty requirement. Table 6 provides guidelines for determining the correct amount of antifreeze. Enertech recommends using the 20 year Extreme Annual Temperature shown in the ASHRAE Fundamentals Handbook, Environment Canada, or local weather data. - Page 59 In most areas of North America, 25% to 30% is sufficient for burst protection. In Northern U.S. and some Canadian climates, 35% or more must be used. Enertech recommends 25% or higher concentration, depending upon location. Lower concentration provides better heat transfer and lower viscosity, but may not provide enough burst protection.
-
Page 60: Section 8: Field Wiring Electrical Connections
EAV terminal block X22 and the indoor module/control module • Connect the flushing pump to the indoor module/control module. Figure 15: Outdoor Unit with Snow Stand (available in 12” and 18” models) EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 61: Communication
(max Communication minal block X22:1– 4, as shown in Contr ol module EAV communicates with Enertech indoor modules/control modules by connecting a 3-conductor, shielded cable (max area VVM 310 / VVM 500 v7568R4 , join terminal block X23 with... -
Page 62: Eav Outdoor Unit And Eme/Emd Indoor Module Communication Wires
NOTE: USE THE 2 INSULATED CONDUCTORS FOR A & B NOTE: USE THE UNINSULATED CONDUCTOR FOR GND CONNECTION Figure 17: Connection between Indoor Module and Outdoor Unit EAV - EME/EMD Rev. A Models AV/EM Models IOM Enertech Global Enertech Global Installation and Operations Manual... -
Page 63: Line And Low Voltage
Surge Protection Due to the extensive use of digital controls within the EME/EMD, Enertech recommends the use of Type 1 or Type 2 surge protective devices (SPD). The system may be protected as part of a whole house surge protector or the branch circuit can be protected using an SPD such as the Compressor Defender (Enertech P/N CD1-024R). - Page 64 THE AQUASTAT IS SET ABOVE THE LOAD LEAVING TEMPERATURE, THE SYSTEM MAY NOT BE ABLE TO SATISFY THE DEMAND. THE HOT WATER SETTINGS OF THE EAV ARE DESCRIBED IN SECTION 9. EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual...
-
Page 65: Hydro-Connect Zone Panels
If When only radiant zones are calling (HEAT call), the water there are only fan coils (no radiant), Enertech recommends the temperature supplied to the floor is determined by the EWC UZ4 zone panel. Both zone controls support most 24 VAC radiant set point (or outdoor reset curve). -
Page 66: Zone Controls
5. For Multi-Aqua and non-Enertech fan coils. Uses EWC zone panel. Does not require a master zone. System may switch back and forth between heating and cooling. For more than 3 zones, use part # AZZXM-2 two zone expansion panel. -
Page 67: Thermostats
** A floor sensor is recommended for zones that have both radiant floor and forced air heating. When the fan coil calls for heating, the heat pump controls will increase the leaving water temperature to 120°F. *** GeoComfort, Hydron Module, or TETCO EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 68: Diagram Htg-1: Taco Zvc406 - Radiant Heating Only
Section 8: Field Wiring Diagram HTG-1: Taco ZVC406 Radiant Heating Only (Enertech part # ATEZVCA) Diagram HTG-1: Taco ZVC406 - Radiant Heating Only Powered from Transformer A Powered from Transformer B THERMOSTATS (24VAC) EM Indoor Module ZONE 6 PRIORITY WHITE... -
Page 69: Diagram Htgclg-1: Heating/Cooling - One Fan Coil (Cooling Or Heating & Cooling) Up To 5 Radiant Heating Zones
Section 8: Field Wiring Diagram HTGCLG-1: Heating/Cooling - One Fan Coil (Cooling or Heating & Cooling) Up to 5 Radiant Heating Zones*** EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... - Page 70 Section 8: Field Wiring Diagram HTGCLG-2: Heating/Cooling - One Fan Coil with Duct Zoning (Cooling or Heating & Cooling) Up to 5 Radiant Heating Zones*** EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual...
-
Page 71: Diagram Htgclg-3: Heating/Cooling - A-Coil With Fossil Furnace Backup (A-Coil Cooling Or Heating & Cooling) Up To 5 Radiant Heating Zones
Section 8: Field Wiring Diagram HTGCLG-3: Heating/Cooling - A-Coil with Fossil Furnace Backup (A-Coil Cooling or Heating & Cooling) Up to 5 Radiant Heating Zones EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 72: Diagram Htgclg-5: Heating/Cooling - Multiple Fan Coils - No Radiant (All Fan Coils Are Enertech Mph Series)
Section 8: Field Wiring Diagram HTGCLG-5: Heating/Cooling - Multiple Fan Coils - No Radiant (All fan coils are Enertech MPH series) K4 K5 EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 73: Diagram Htgclg-6:Heating/Cooling - Multiple Fan Coils - No Radiant (At Least One Fan Coil Has Y/W Inputs)
Section 8: Field Wiring Diagram HTGCLG-6:Heating/Cooling - Multiple Fan Coils - No Radiant (at least one fan coil has Y/W inputs)* K4 K5 EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 74: Heating/Cooling - Controls To Be Used When A Buffer Tank Is Installed (At Least One Fan Coil Is Smaller Than 2 Tons)
Section 8: Field Wiring Heating/Cooling - Controls to be used when a Buffer Tank is installed (at least one fan coil is smaller than 2 tons) EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 75: Section 9: On-Board Controls Outdoor Air Temperature (Oat)
Floors in bathrooms Floors in hallways, secondary rooms Table 8: Max Temperatures Through Various Types of Flooring Heating Curves Outdoor Temperature °F Figure 21: Heating Curves (Outdoor Temperature Reset) EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 76: Outdoor Control Box
Outdoor Control Box Control Board Transformer Breaker Transformer Compressor Crankcase Heater Relay Field Low Voltage Connections to Indoor Unit (X22) Line Voltage Figure 22: Outdoor Unit Control Box EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 77: Indoor Module Controls
Section 9: On-Board Controls Indoor Module Controls Field Wiring and RS-485 Connection Companion Board (ACB) Actuator - Sensor Board (ASB) Figure 23: Indoor Module Controls EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 78: Sensors
Screens from the Startup Wizard are shown on the next page. EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... - Page 79 Please open ALL zone 5 min circuit until it is void of all air. 5 min valves and press NEXT. Step 7 Step 8 Step 9 EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual 3.10.1.9 3.10.1.10...
- Page 80 Please wait: 5 min 3.10.1.13 3.10.1.14 3.10.1.15 Step 13 Step 14 Step 15 3.10.1.17 3.11.0.1.1 3.10.1.16 Step 16 Step 17 Step 18 EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual 3.11.0.1.1 Update Button 3.12.0.1.1 Reset Button...
- Page 81 3.10.1.13 3.10.1.14 3.10.1.15 3.10.1.17 3.11.0.1.1 Update Button 3.12.0.1.1 Reset Button Step 19 Step 20 Step 21 3.12.0.1.1 Reset Button 3.10.1.17 3.11.0.1.1 Update Button 3.12.0.1.1 Reset Button Step 22 EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual...
- Page 82 (Advanced Passcode) Additional settings are available when the advanced passcode is entered. It is not recommended for homeowners/building owners enter this mode without a qualified technician on site. The passcode is 001. EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual...
- Page 83 Heat Economy ON: Electric immersion heat is not used (not 3.1.1 After Code (note: le name is 3.1.0.BMP) 3.1.1 Aux Heat Delay recommended) 3.4.1 Heat Min Temp 3.4.2 H 3.3.1 Heat Setpoint 3.4.0 EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual...
- Page 84 (HHEAT call) setpoint is always set to 120°F leaving fluid temperature. • Cool Setpoint: Leaving fluid temperature used when cooling call is received (Default 45°F, minimum allowable 42°F). 3.4.3 Cool Setpoint 3.5.0 3.5.1 Aux EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual...
- Page 85 (not recommended). • Hot Water Deadband: Temperature difference from setpoint to minimum temperature the tank can drop to 3.7.2 Load Pump Max Speed 3.7.3 before heat pump is engaged. EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual...
- Page 86 Delta Temp is set at 8 deg. F and the entering temperature is 90 deg. F, the pump speed will increase/decrease RPM to attempt to deliver 98 deg. F leaving fluid temperature to the system. EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual...
-
Page 87: Pump Start
DHW to hydronic heating/cooling. rate allows less than 5.0 GPM, it will attempt to increase the minimum flow percentage until 5.0 GPM is achieved. This will overwrite the previous minimum setting. EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 88: Troubleshooting
(there is no time limit), an alarm will be displayed, and the control will not attempt to operate the compressor. The power must be cycled to reset the unit. EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 89: Section 10: Wiring Diagrams Eav Outdoor Unit Wiring Diagram
Section 10: Wiring Diagrams EAV Outdoor Unit Wiring Diagram EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 90: Eme Indoor Module Wiring Diagram
Section 10: Wiring Diagrams EME Indoor Module Wiring Diagram (Electric Immersion Heater) EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 91: Emd Indoor Module Wiring Diagram (Dual Fuel)
Section 10: Wiring Diagrams EMD Indoor Module Wiring Diagram (Dual Fuel) EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 92: Section 11: Equipment Startup Form
Condensate Drain Insulation Condensate Drain, Thickness Note: Check the connections, main voltage and low voltage before the machine is started, to prevent damage to the heat pump electronics. EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 93: Section 12: Troubleshooting Thermistor And Pressure Transducer Connections
Figure 24: Thermistor and Pressure Transducer Connection 1.739 0.891 1.469 0.785 1.246 0.691 BP11 1.061 0.607 BP11 0.908 0.533 BP11 0.779 0.469 0.672 0.414 Chapter 8 | Disturbances in comfort NIBE F2120 EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 94: Thermistor Legend
0.87 0.27 0.81 0.25 0.75 0.24 0.70 0.22 0.66 0.21 0.62 0.20 0.58 0.19 0.54 0.17 0.50 0.16 0.46 0.15 0.41 0.14 0.35 0.13 0.29 0.11 0.23 0.10 EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 95: Outdoor Unit Led Status
Continuous Light CPU running incorrectly Not Lit Control board without power Green Continuous Light Control board power on N-RELAY Not lit No function COMPR. ON Not lit No Function EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... - Page 96 Led on Full is Pump Speed 0%, Led Off is Pump Speed PWM 0 Yellow Off to On 100%. Yellow • LED’s 11 & 12 are driven at the same speed. EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual...
-
Page 97: Indoor, Outdoor, And Inverter Alarms Tables
Suct - Evap Thermistor fault - Open circuit or short Open/Short Sensor for 1 sec Lockout w E Heat Power Cycle circuit on sensor input --------------- CONTINUES --------------- EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... - Page 98 Lockout w E Heat Power Cycle PFC over temperature Lockout w E Heat yes Repeated PFC over temperature faults Lockout w E Heat Power Cycle --------------- CONTINUES --------------- EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual...
-
Page 99: Warranty Order & Claim Form
Lockout w E Heat None Config file missing - Incorrect inverter size Lockout w E Heat None Config charge error - Incorrect inverter size Lockout w E Heat None EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... -
Page 100: Warranty Registration Form
How would you rate your overall satisfaction with your installing geothermal contractor? 1 (Very Dissatisfied) 10 (Very Satisfied) MAIL THIS FORM TO: EMAIL THIS FORM TO: FAX THIS FORM TO: ENERTECH GLOBAL LLC WARRANTY@ENERTECHGEO.COM ENERTECH GLOBAL LLC 2506 SOUTH ELM STREET 618.664.4597 GREENVILLE, IL 62246 REGISTER ONLINE AT: warranty-registration.enertechgeo.com... -
Page 101: Revision Table
Section 13: Warranty and Revision Table Revision Table Date Description of Revision Page 14MAR2021 Minor layout changes made. Various 02MAR2021 Minor layout changes made. Various 14DEC2020 Initial draft created EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual... - Page 102 This Page Intentionally Left Blank EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual...
- Page 103 This Page Intentionally Left Blank EAV - EME/EMD Rev. A Models Enertech Global Installation and Operations Manual...
- Page 104 MEMBER Enertech Global is continually working to improve its products. As a result, the pricing, design and specifications of each product may change without notice and may not be as described herein. For the most up-to-date information, please visit our website, or contact our Customer Service department at info@enertechgeo.com.
