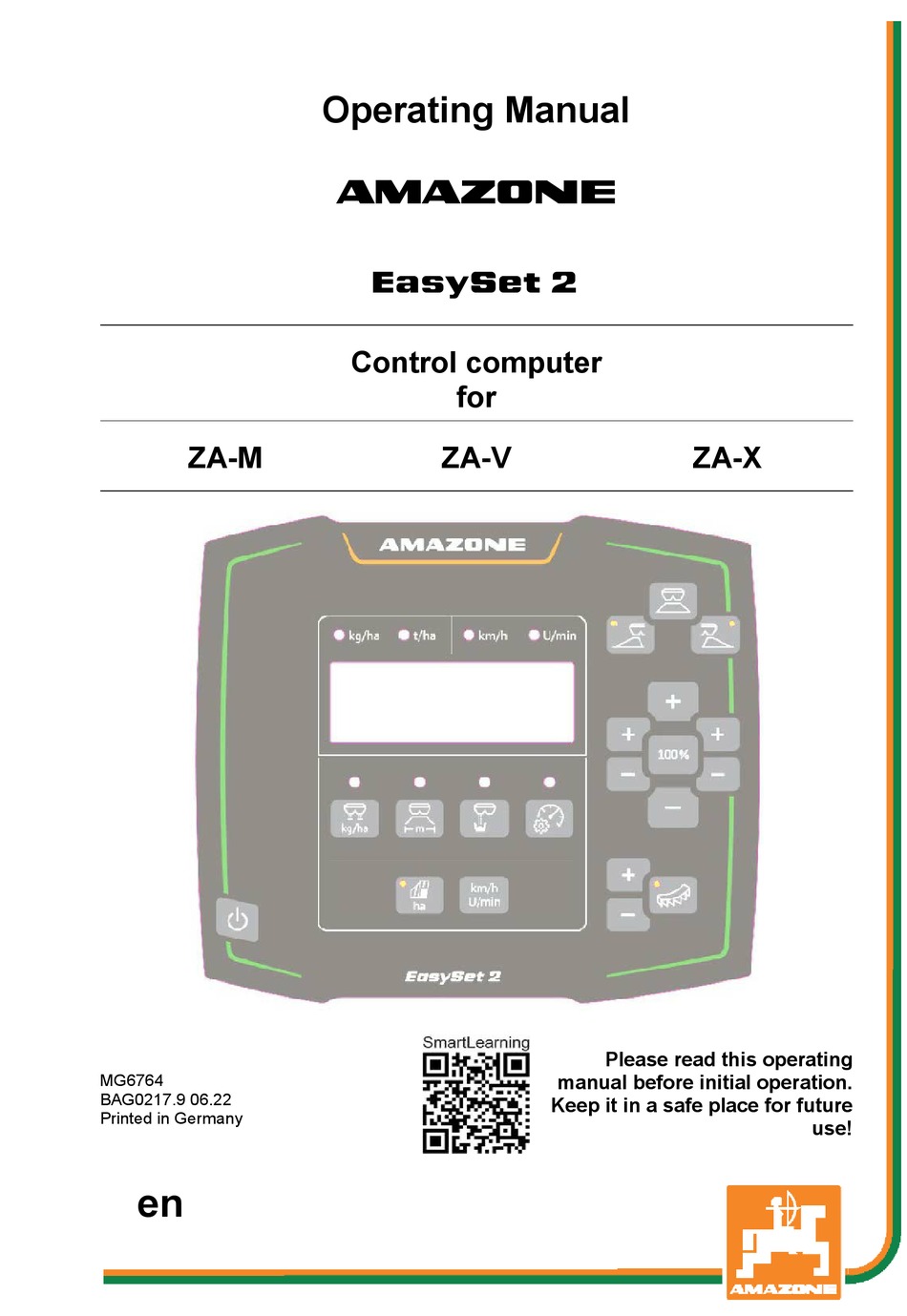

- Page 1 Operating Manual EasySet 2 Control computer ZA-M ZA-V ZA-X Please read this operating manual before initial operation. MG6764 BAG0217.9 06.22 Keep it in a safe place for future Printed in Germany use!
- Page 2 EasySet 2 BAG0217.9 06.22...
-
Page 3: Table Of Contents
Spreading slug pellets and fine seeds ................... 20 Displaying the area efficiency ....................21 Performing residual emptying ....................21 Connection ....................22 EasySet 2 configuration ................23 5.1.1 Calibrating the shutters ......................24 Error messages ........................28 Overview ..................... 30... -

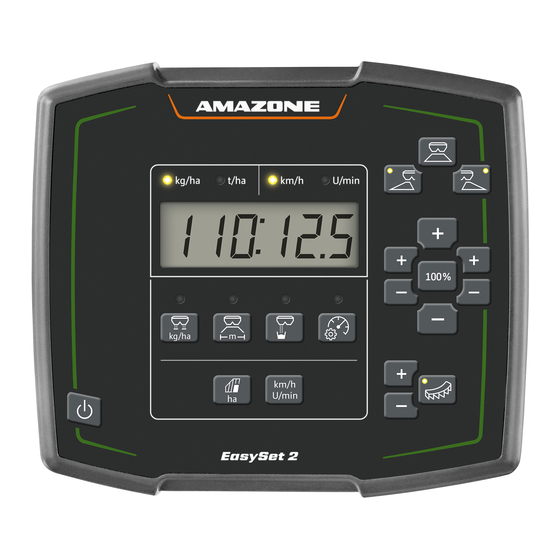

Page 4: Product Description
Some with LED light for showing the acti- vated function (4) Display with LED lights Display • Display for showing a maximum of 6 char- acters LED lights above the display show the units • of the displayed value. EasySet 2 BAG0217.9 06.22... -
Page 5: Adjustment Buttons
+/- buttons. By pressing and holding the +/- buttons, the val- ue changes rapidly. Set values are automatically saved. Go back from the Setting menu to the work display using the 100% button. EasySet 2 BAG0217.9 06.22... -
Page 6: Buttons For Operation
Lower rate Raise limiter electrically Activate limiter Lower limiter electrically LEDs (if equipped) show the selected function. • By pressing and holding the +/- buttons, the value changes rap- • idly. • Set values are automatically saved. EasySet 2 BAG0217.9 06.22... -
Page 7: Preparing The Easyset2
The total area efficiency is shown for 2 sec- onds. Enter spread rate Select the spread rate setting. The spread rate is shown in kg/ha. → Enter the spread rate. Save the value and go back to the work display. EasySet 2 BAG0217.9 06.22... -
Page 8: Entering Working Width
The determined fertiliser calibration factor overwrites the value from the setting chart. Realistic calibration factors for fertiliser (0.7 to 1.4): 0.7 for urea • 1.0 for calcium ammonium nitrate (CAN) • 1.4 for fine, heavy PK fertilisers • EasySet 2 BAG0217.9 06.22... - Page 9 Close the left shutter as soon as enough spreading material has been col- lected. Fertiliser: Fill the collection bucket ο completely. ο Slug pellets and fine seeds: Collect approx. 5 kg. The theoretically spread fertiliser quantity is → shown in kg. EasySet 2 BAG0217.9 06.22...
- Page 10 Terminate the calibration. → The new calibration factor will be displayed. By switching off the device, the calibration will be discarded. Save the value and go back to the work display. EasySet 2 BAG0217.9 06.22...
- Page 11 Collected fertiliser quantity [kg] ZA-M: Calibration factor = 2.2 x Time [s] Collected fertiliser quantity [kg] ZA-V: Calibration factor = 0.65 x Time [s] Collected fertiliser quantity [kg] ZA-X: Calibration factor = 1,89 x Time [s] EasySet 2 BAG0217.9 06.22...
-
Page 12: Simulated Speed / Distance Sensor
Press until the distance sensor display reaches 250 (pulses). Press until the display changes from 250 (pulses) to 12 (km/h). The desired speed can now be entered. → Speed simulator active → Speed-proportional metering not active → EasySet 2 BAG0217.9 06.22... - Page 13 Press until the speed simulator display reaches 30 (km/h). Press until the display changes from 30 (km/h) to 250 (pulses). → The pulses per 100 m can now be entered. → Speed-proportional metering active → Speed simulator not active EasySet 2 BAG0217.9 06.22...
-
Page 14: Calibrating The Distance Sensor (Pulses Per 100 M)
Entering the pulses per 100 m Select the distance sensor. The pulses per 100 m will be displayed. → Enter the pulses per 100 m, if known. Save the value and go back to the work display. EasySet 2 BAG0217.9 06.22... -
Page 15: Setting The Simulated Speed
Otherwise, the correct spread rate will not be achieved. Select the simulated speed. If the distance sensor display (values greater than 250) first switches to simulated speed, see page 12. Enter the value for the simulated speed. EasySet 2 BAG0217.9 06.22... -
Page 16: Using The Easyset2
When the implement accelerates → within 6 seconds, the shutters are opened again. "SPEED" display If the implement accelerates after → more than 6 seconds, the shut- ters remain closed. Press the button again if necessary. Error message E50 EasySet 2 BAG0217.9 06.22... - Page 17 This improves the overlap and therefore the ferti- liser distribution between the area inside the field and the headland area. EasySet 2 BAG0217.9 06.22...
-
Page 18: Performing Boundary Spreading
Display ON for 5 seconds after opening the shutter. Then it switches back to the Work display. If the shutters are opened when the limiter is activated, an signal tone is issued. This also indicates boundary spreading. EasySet 2 BAG0217.9 06.22... - Page 19 Before boundary spreading / ditch spreading, reduce the rate on the boundary side. 2. Actuate the tractor control unit. Activate the limiter for boundary spreading. → The LED shows the activated limiter. EasySet 2 BAG0217.9 06.22...
-
Page 20: Spreading Slug Pellets And Fine Seeds
The LED shows which shutter is open on one side. Reach the set simulated speed as quickly as possible. Maintain the simulated speed while spreading slug pellets or fine seeds. EasySet 2 BAG0217.9 06.22... -
Page 21: Displaying The Area Efficiency
Open the left / right shutter for residual emptying. The display is continuously illuminated. → Close the left / right shutter after residual emptying. → The display flashes. Switching off the device terminates the emptying function. EasySet 2 BAG0217.9 06.22... -
Page 22: Connection
(3) Equipment for installing the EasySet in the tractor cab (4) Implement plug to connect the implement to the EasySet. Store the control computer in a dry place when you remove it from the tractor cab. EasySet 2 BAG0217.9 06.22... -
Page 23: Easyset 2 Configuration
(2). 00 – No boundary spreading • • 01 – Hydraulically operated limiter with po- sition sensor 02 – Electrically operated limiter • Save boundary spreading device mode. EasySet is automatically switched off. → EasySet 2 BAG0217.9 06.22... -
Page 24: Calibrating The Shutters
The round steel must touch the shutter o- pening (4) and must not rest on the bottom plate (3)! 5. Close the right shutter manually until the shutter touches the round steel. To do so, pull the right motor back towards the front. EasySet 2 BAG0217.9 06.22... - Page 25 Confirm the calibration of the left shutter. → EasySet then switches itself off automa- tically and the calibration is finished. 11. Remove the round steel. 12. Attach the motor to the shutter again. 13. Install the maintenance flaps. EasySet 2 BAG0217.9 06.22...
- Page 26 Confirm the calibration of the left shutter. Confirm the calibration for the right shutter. EasySet then switches itself off automa- → tically and the calibration is finished. 8. Connect the motor and shutter again with the pin and locking clip. EasySet 2 BAG0217.9 06.22...
- Page 27 Confirm the calibration of the left shutter. Confirm the calibration for the right shutter. EasySet then switched itself off automatical- → ly and the calibration is finished. 8. Connect the motor and shutter again with the pin and locking clip. EasySet 2 BAG0217.9 06.22...
-
Page 28: Error Messages
E50 / Warning With the safety func- 5 s continuous Open the shutter SPEED tion, the shutters only tone when the forward open when a forward speed is reached. speed signal is avail- able after 6 seconds. EasySet 2 BAG0217.9 06.22... - Page 29 Risk of crushing fingers in the elec- trically actuated shutters. There may not be anybody else work- ing on the shutters when they are opened and closed. 3. Before working on the bottom group, switch off the control computer. EasySet 2 BAG0217.9 06.22...
-
Page 30: Overview
Target rate on Target rate on the left the right higher/lower higher/lower 1. Area efficiency Activate / deactivate limiter 2. 6 seconds → area 0 On / Off 1. Limiter tilt 2. Change the setting values EasySet 2 BAG0217.9 06.22... - Page 31 Overview EasySet 2 BAG0217.9 06.22...
