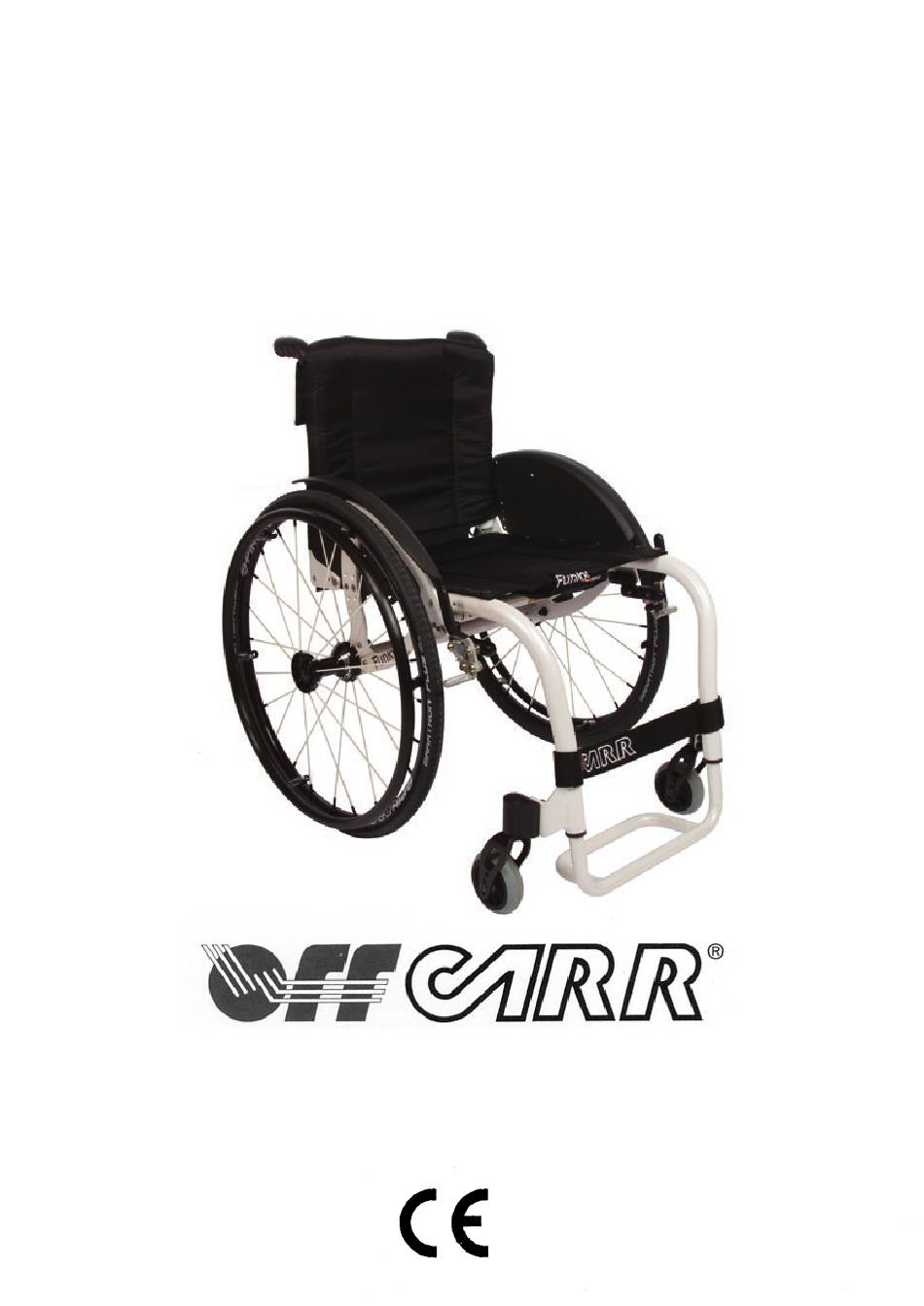

- Page 1 INSTRUCTION MANUAL FENICE OFF CARR S.r.l. Via Dell’Artigianato II, 29 35010 Villa del Conte (PD) Italy Tel. +39 049 9325733 Fax +39 049 9325734 offcarr@offcarr.com - www.offcarr.com...
-
Page 2: Table Of Contents
INDEX ....................4 INTRODUCTION 1.1 D ..........................4 ESCRIPTION 1.2 F ..........................5 EATURES ..................6 PREPARATION FOR USE 2.1 B ....................6 REST OPENING FOLDING 2.2 R ..................7 EAR WHEELS ASSEMBLY AND RELEASE 2.3 T ......................7 YRE PRESSURE CHECK 2.4 C ...................... - Page 3 Thanks for choosing an OFF CARR wheelchair. Since 1982 OFF CARR listens and responds to the customers' needs by developing highly innovative and technologic solutions, always aimed to reduce daily mobility problems, with special attention to product style and to improve customers' life quality.
-
Page 4: Introduction
Description FENICE is an aluminium rigid frame wheelchair. Other details are made with composite materials, such as carbon fibre, titanium, aluminium or steel alloys. Various frame colours are available and can be combined with various coloured anodized accessories and details sets. -
Page 5: Features
The brake devices (14) are available in standard or scissor model and are adjustable to counterbalance different wheel sizes and different wheel setups. The wide and complete range of accessories available, allows a complete customisation of FENICE both aesthetically and functionally. Features Aluminium rigid frame... -
Page 6: Preparation For Use
2. Preparation for use The preparation for use of these devices must be performed by qualified personnel both to evaluate the suitability of the product and to provide the correct instructions to the user. 2.1 Back-rest opening/folding OPENING Pull on the back-rest until the rear locks •... -
Page 7: Rear Wheels Assembly And Release
2.2 Rear wheels assembly and release FENICE wheelchairs are normally shipped with the rear wheels aside. It is possible to assemble or release the wheels as follows: • ensure the brakes are released; • insert the axle into the wheel by holding down the button;... -
Page 8: Checking The Brakes
2.4 Checking the brakes To check the correct functioning and the efficiency of the parking brakes act as following: • activate the brake (Fig. P, S, U); • check if the wheels are blocked. Fig. O Fig. P Pushing brake “OFF” Pushing brake “ON”... -
Page 9: Setting Up
3. Setting up The wheelchair is shipped in the setup chosen on the order form. The selected options in the order form should ensure the best possible setup to match the customer needs. Considering potential setup restrictions it is still possible to perform other adjustment to better fit the user’s needs. - Page 10 By changing the seat depth 1-acting on the screws “A” and “B” that fix SHS holder to the frame: • unscrew completely and remove the screws “A” and “B”; • change the rear axle position moving the SHS holder; • fix the “A” and “B” screws. Operations on the SHS holder have always to be performed symmetrically (both...
-
Page 11: Rear Seat Height Adjustment
Rear seat height adjustment The rear seat height can be adjusted by acting on the “A” and “B” screws that fix the SHS holder to the frame: • unscrew without removing the “B” screw; • completely unscrew and remove the “A”... -
Page 12: Front Castor Replacement
Changing the fork shaft (different length): • remove the protection cap; • unscrew the “G” nut; • unscrew the “M” nut and the “L” washer; • replace the shaft; • insert the new shaft and fix the “G” and “M” nuts, being careful to the correct positioning of the “L”... -
Page 13: Real Wheel Camber Adjustment
The rear wheel camber is fixed according with the choice on the order form. However is possible to change it if required. On FENICE wheelchairs it is possible to change the wheel camber by replacing the rear bushes as follow: remove the rear wheels (see par.2.2);... -
Page 14: Front Fork Support Plate Asdjustment
Back-rest tilt adjustment FENICE wheelchair allows 4 backrest tilt positions; they can be set as follows: • unscrew completely and remove the “S” screws;... -
Page 15: Backrest Height Adjustment
Backrest height adjustment The backrest height will be chosen during assembly according to the order form selection. It is however possible to change it over time. If the wheelchair is equipped with pushing handles is possible to move them up or down of a few centimetres as shown: remove the upholstery cover and open the tension belts •... -
Page 16: Backrest Tension Adjustment
3.11 Backrest tension adjustment The backrest tension can be adjusted by acting on the velstraps: remove the upholstery cover of the backrest; • • adjust the upholstery tension by opening or closing the velstraps under the upholstery; • put the upholstery cover back in position, referring to the rear side of the backrest and eventually place on the seat the length of cover in excess. -
Page 17: Brake Setup And Maintenance
If the rear wheel position has been changed from its original one, it is necessary to proceed with the brake adjustment. FENICE wheelchair can be equipped with classic pushing or pulling brakes or scissor brakes. -
Page 18: Anti-Tip Devices
4. Anti-tip devices FENICE wheelchair can be equipped with left and/or right anti-tip devices. Never use the anti-tip wheels as transit wheels. 5.1 Use of the revolving anti-tip device When not in use the anti-tip wheel is positioned under the frame: To activate the anti-tip device it is necessary to push it downwards and rotate it to the back until it is locked in the correct position. -
Page 19: Adjustment Of The Anti-Tip Device
“B” screw and fix it properly. • 5. Unbalancing system On FENICE wheelchair it is possible to assemble the unbalance pedal. It may be necessary to help assistants to overcome steps or to facilitate the movement on gravel. -
Page 20: Armrests
6. Armrests FENICE wheelchair can be equipped with “L” model tip-up detachable armrests. The armrests are not designed to lift up the wheelchair both with and without user. Usually the armrest is 22 cm height from the seat. On FENICE the L type... -
Page 21: Cushion
7. Cushion According to the order form setup, FENICE wheelchair can be equipped with a cushion. 8. Spoke Guards Spokes guards on real wheels prevent the user from putting accidentally hands or fingers between the spokes of the wheels. They can be attached to the spokes with velstraps or clips (it depends on the model). - Page 22 and it depends from the specific configuration of the wheelchair. • The wheelchair should be used only for the transport of a person and not of objects in general. • Avoid wheeling the wheelchair without the supervision of an attendant. •...
-
Page 23: Warning To Reduce The Risks Associated With Misuse Of The Wheelchair
10. Warning to reduce the risks associated with misuse of the wheelchair Be careful not to wrap the tubes of the crossbar with the fingers to avoid being pinched between the frame and the crossbar. Do not use the brakes to slow down the speed of the wheelchair. They are designed only as parking devices. -
Page 24: Maintenance, Inspections And Controls
11. Maintenance, inspections and controls Weekly: Check the tyre pressure. Each tyre shows on the lateral bands the maximum pressure for which they are designed. A flat tyre affects the efficiency of brakes and the agility of the wheelchair. ... -
Page 25: Cleaning Instructrion
12. Cleaning instruction Cleaning and disinfection procedure have to be performed by qualified personnel. Use appropriate eye/facial protection and protective gloves, during cleaning and disinfection procedure. In case of contamination with blood or body fluid, the wheelchair has to be cleaned first and then disinfected as follow: Note: Most of the time is convenient and more effective to remove seat and back-rest upholstery from the frame before to proceed with the cleaning and disinfection of either frame... -
Page 26: Technical Service
13. Technical service For any problems, fault or breakage please inform immediately the authorized dealer supplying the following indications: a) model b) serial number c) fault description d) any reference or order number, if available, recorded on the order form. Every component of the wheelchair is available as spare part. -
Page 27: Packaging, Shipping And Delivery
Contact your dealer for a complete wheelchair disposal. OFF CARR s.r.l. reserves the right to make improvements and/or changes on its products, at any time without prior notice, with respect of the device features, suitability, certifications, warranty contract and availability of spare parts according to the terms of law.
