- Page 1 User's Manual of EKEC series AC electric vehicle charging pile...
-
Page 2: Table Of Contents
preface Safety precautions Product brief introduction Technical standard Mechanical and electrical installation internal structure diagram Installation EKEC4 series electric vehicle AC charging pile Quick Rapid debugging Indicator and working status description RS485 communication description Warranty Agreement... -
Page 3: Preface
Preface This product is designed and manufactured according to the IEC61851 & SAEJ1772 international standards. Operating Environment: The operating environment of this charging station :Altitude ＜ 2000m,-40℃ ~45℃，relative humidity ＜ 85%. If you need to use in more harsher environments please provide us the special instructions . Safety recautions and dangers Safety precautions: Please comply with the safety instructions and legal notes. -
Page 4: Product Brief Introduction

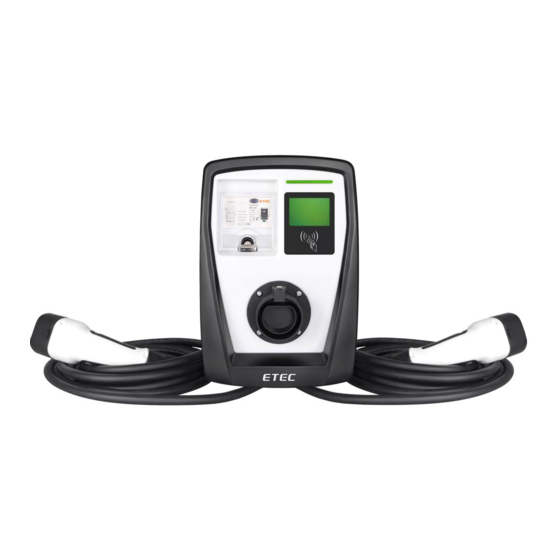

Product description 1.1 Product brief introduction This product is a single or three-phase AC charging pile, which is mainly used for AC charging of electric vehicles. The equipment adopts industrial design principles. The protection level of the whole machine reaches IP55, with good dustproof and waterproof functions, and can be safely operated and maintained outdoors. -
Page 5: Mechanical And Electrical Installation
2 Mechanical and electrical installation 2.1 Internal structure drawing 16/32A RCCB(Type B) Contactor Digital E Meter BLU(N/C) GRE(CHG) RED(ERR) PLUG Current adjustment Surge Arrester Type2 2.2 Installation A、Overall dimension and installation size EKEC1 B、 Drill 4xø6 35mm counterbore holes on the wall with the size of the mounting holes, insert the expansion screw plastic tube, and then screw in the M4x30 self-tapping screws from the internal mounting holes of the charging pile. -
Page 6: Ekec4 Series Electric Vehicle Ac Charging Pile
EKEC4 Series AC EV Charging Station Product description 1.1 Technical date Cable type Socket type Model specification EKEC4-C-T1/T2-1P EKEC4-C-T1/T2-3P EKEC4-S-T1/T2-1P EKEC4-S-T1/T2-3P Technical date Power mode 1P+N+PE 3P+N+PE 1P+N+PE 3P+N+PE Operation voltage AC230V±10%50Hz AC400V±10%50Hz AC230±10%50Hz AC400V±10%50Hz Output current 10A、16A、20A、25A、32A、63A Output voltage AC230V±10%50Hz AC400V±10%50Hz AC230±10%50Hz... -
Page 7: Quick Rapid Debugging
3 Fast Debugging 3.1 Inspect before operation Before operation, please check carefully and make sure the following items : The installation position of the AC charging station must convenient for operation and maintenance. The AC charging station and its accessories must be correctly connected and installed firmly. Reasonable selection of the protection switch for the AC input end. -
Page 8: Indicator And Working Status Description
3.4 Indicator light and working status description State Controller LED Color LED State PE、CP、PP state Remark Code state Power self-check failed!Please turn Power self detect failed Fault--1# 5Hz flashing the power back Blue CP disconnection Ready 1Hz flashing RFID Blue Waiting for IC card 2Hz flashing Waiting... -
Page 9: Rs485 Communication Description
Communication function RS485 Communication description(Modbus-RTUmodel , Baud rate: 38400, fixed , address: 1-255default : 255(Broadcast address )) Register address Data description (power failure protection) Read and write Type of data Defaults number (Device address number) Read and write 16-bit integer DLB maximum starting current Read and write 16-bit integer... -
Page 10: Warranty Agreement
4 Warranty Agreement 1) The warranty period of this product is 36 months (it is subject to the barcode information of the product). During the warranty period, if the product has malfunction or damage under normal use according to the manual, we can provide free maintenance for you.
