Summary of Contents for TECALEMIT TEC 3000X

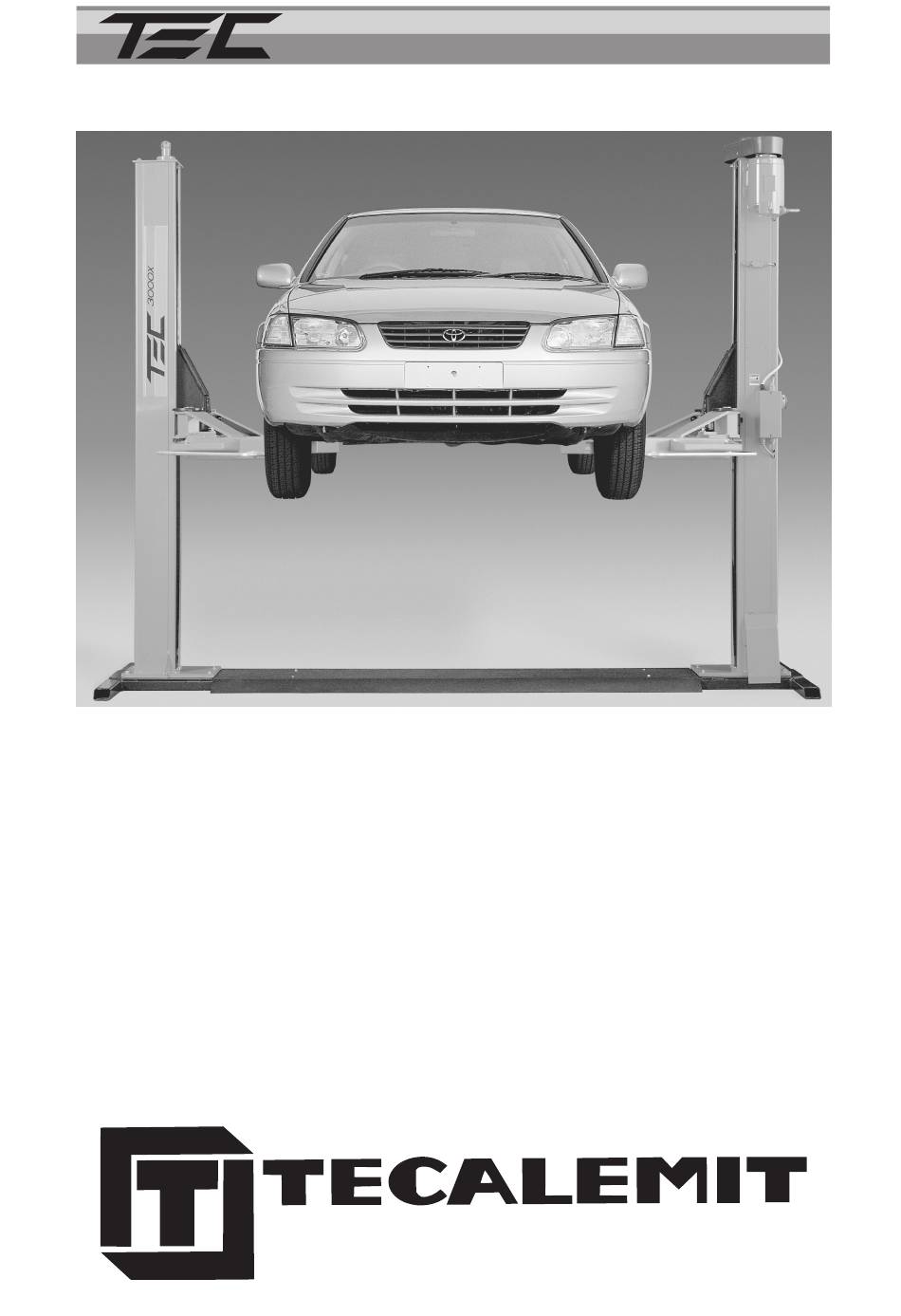

- Page 1 3000X Screw Hoist Installation, Operation and Maintenance instructions...
- Page 2 Toyota Landcruiser 80 series. Always keep the lifting pads clean and in good condition. TEC3000X Statutory Design Approvals and Use only Tecalemit approved lifting accessories. References This hoist is designed for raising vehicles. Do not use it for any other purpose.
- Page 3 Installation Instructions 5. Drill and fit four hold-down bolts. The bolts must be 16 By following these instructions carefully, your new hoist can be mm thread diameter and fitted in accordance with the assembled quickly to give safe, smooth and efficient operation manufacturer’s instructions: and an extended, trouble-free life.
- Page 4 Fig.2 IMPORTANT: 17. Fit the tool trays to 2 of the lifting arms with the M6 x 16 Link must be seen from screws and Ø19 x 2 mm thick flat washers. the top when installed. Do the screws up snug tight only, (over tightening will distort the tray).
- Page 5 Safety Interlock Mechanism � � � Three Phase Electrical Circuit ����� ��������� ��� ���� � ����� � � ����� � � ��� � � ������ ��� ���� ���� ��� ����� � ����� ����� � ��� ������ ������ ����� �� ��� ��...
- Page 6 Operating Instructions 2. Check the vee belt tension. Individual belt deflection must be less than 10 mm when pressed firmly in mid-span with your To raise hoist thumb. Note: read the safety precautions on page 2 before using. Every 3 months 1.
- Page 7 Inspection Procedure To Re-assemble Column 1. Thoroughly clean the inside of the column where the rollers Lift screw and sliders travel, then smear with grease. Thoroughly wash the screw to remove all dirty oil. Inspect the 2. Refit the carriage and position it about 500 mm up from the outside diameter and top and bottom flanks of the thread for bottom.
- Page 8 Fault Diagnosis Problem Symptom Possible Cause Remedy 1. Hoist motor won’t a. No Noise at all from 1.No power. a. Check supply for good connection. run. motor. b.Check supply fuses. c.Check operation of isolator switch. 2.Chain tension switch a.Tighten chain if loose. activated.
- Page 9 2. Carriage is bent or a. Visual check of carriage for damage. misaligned due to external b. Carriage should not be repaired except by Tecalemit damage. factory. Replace carriage if necessary. 3. Screw is bent causing a. This condition will not impair the function of the hoist carriage to oscillate.
- Page 10 Part No. Description Qty. Item Part No. Description Qty. Item 1 Phase 3 Phase 1 Phase 3 Phase V18347 V18655 Drive cover V16749 Catch bar SMA 1204.10 Screw M4 x 10L cheese hd GPS12.65 Spring pin WWA1003.10 Washer 3/16” flat V18653 Reservoir CMA006.40...
- Page 12 IMPORTANT Notes: TEC 3000X 3 tonne screw hoist A simple daily visual check will ensure this hoist is operationally safe The hoist is operationally safe while a gap exists between the lift nut and the safety nut. If the lift nut is allowed to wear to the extent that the two nuts completely close up, then the safety nut becomes the lifting nut.
