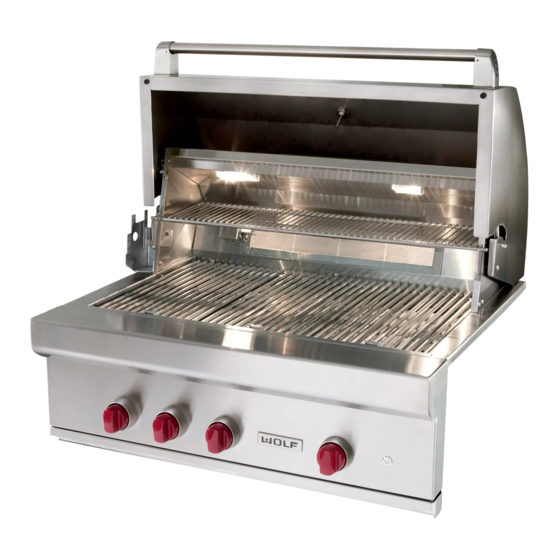

- Page 1 INSTALLATION GUIDE Outdoor Gas Grills...
-
Page 2: Table Of Contents
Important Note Wolf Outdoor Gas Grills ......3 To ensure the safe and efficient use of Wolf equipment, please take note of the following types of highlighted Safety Instructions . -
Page 3: Wolf Outdoor Gas Grills
Wolf Outdoor Gas Grills wolfappliance.com Outdoor Grill Installation Read this entire installation guide prior to installation and Record the model and serial numbers before installing the save for the local inspector’s reference. The homeowner outdoor product. Both numbers are listed on the product should keep this installation guide for future reference. -
Page 4: Safety Instructions
• WHAT TO DO IF YOU SMELL GAS: qualified installer, service agency or the gas supplier. Shut off gas supply to the appliance. • Warranty service must be performed by Wolf factory • Extinguish any open flame. • certified service. -
Page 5: Location Considerations
Locating the Grill Built-In Applications IMPORTANT NOTE: This gas appliance is designed and Wolf outdoor grills and the burner module are designed for certified for outdoor use only. Do not operate the outdoor easy placement into a built-in enclosure. For outdoor... -
Page 6: Outdoor Grill Specifications
Outdoor Grill Specifications Overall Dimensions OUTDOOR GRILL Model OG36 shown 30" (762) OVERALL DEPTH 27" (686) OVERALL HEIGHT " " (318) (64) TO GRILLING CLEARANCE SURFACE FOR OPEN HOOD " (705) OVERALL WIDTH GRILL CART Model CART36 shown 12" (305) "... - Page 7 Outdoor Grill Specifications wolfappliance.com Outdoor Grill Built-In Installation NON-COMBUSTIBLE ENCLOSURE COMBUSTIBLE ENCLOSURE WITH LINER " " (21) (21) OPENING OPENING FOR LINER FOR GRILL COUNTERTOP COUNTERTOP OVERHANG OVERHANG " (64) min 12" (305) min TO NON-COMBUSTIBLE REAR SURFACES TO COMBUSTIBLE REAR SURFACES FOR HOOD CLEARANCE "...
- Page 8 Outdoor Grill Specifications Overall Dimensions Built-In Installation (Burner Module) BURNER MODULE AND SIDE BURNER NON-COMBUSTIBLE OR COMBUSTIBLE ENCLOSURE 30" (762) " OVERALL DEPTH (14) OPENING " (273) MODULE OVERALL HEIGHT COUNTERTOP OVERHANG TOP VIEW 13" " (705) (330) 12" (305) min TO COMBUSTIBLE OVERALL REAR SURFACES WIDTH...
-
Page 9: Outdoor Grill Installation
Electrical Requirements INSTALL THE POWER TRANSFORMER Wolf outdoor grills and the burner module have a power ELECTRICAL GROUNDING: The outdoor gas grill is transformer for the lights and igniters which is concealed equipped with a 3-prong grounding plug for protection against shock hazard. - Page 10 Connect the outdoor product to the gas supply line. The OPEN POSITION gas supply line must be of adequate size to properly service all gas appliances. Wolf recommends the use of a minimum " ID commercial type flex hose from the (13) gas supply line to the outdoor product connection.
- Page 11 Do not use a replacement regulator other than that speci- device and a cylinder connection device compatible with fied by Wolf. Use only gas piping that is approved for use the connection for outdoor cooking appliances. with natural and LP gases.
- Page 12 PORTABLE LP CONNECTION WITH TANK LP GAS CONNECTION One of the many features of the Wolf grill cart is the Install the pressure regulator and hose assembly supplied pull-out shelf for easy access to the LP gas cylinder. It is...
- Page 13 Have a dealer check the LP gas cylinder for deterioration recommended by the Wolf. Do not attempt to repair the when the tank is filled in accordance with regulations. cylinder valve if it should become damaged. The Immediately replace the cylinder if any deterioration is cylinder must be replaced.
- Page 14 Outdoor Grill Assembly Install Grill to Cart Wolf outdoor products are produced fully assembled and Wolf portable grill carts are available to fit Wolf outdoor tested in the factory and require no major assembly in the grill models OG30, OG36 and OG42.
- Page 15 Outdoor Grill Installation wolfappliance.com Install Side Burner to Cart Wolf model SB13 side burner can be installed on the right 4) Remove rear screws and bracket. Refer to illus 3. side of any Wolf portable grill cart. For ease of installation,...
- Page 16 Outdoor Grill Installation Install Side Burner to Cart REMOVE REAR PANEL, DOOR AND DRIP TRAY INSTALL SHROUD 1) Removing rear panel and door of grill cart will provide 1) Push plastic bushing supplied with side burner through easier access for installation. Remove rear panel by access hole from inside cart.
- Page 17 Outdoor Grill Installation wolfappliance.com Install Side Burner to Cart 8) Remove alignment tool and tighten two remaining INSTALL SHROUD 10-32 machine screws to slots just below the upper 4) Place shroud alignment tool (provided) with lip placed screws. in gap between grill and side burner shroud as shown in illus 9.
- Page 18 Outdoor Grill Installation Install Side Burner to Cart IMPORTANT NOTE: For natural gas installations, the gas 3) Compress bar clamp until hole in bullnose aligns with line connection must be made before installing the side threaded hole in shroud. Alignment and placement of burner.
- Page 19 Outdoor Grill Installation wolfappliance.com Install Side Burner to Cart ALIGNMENT TIPS ELECTRICAL CONNECTION IMPORTANT NOTE: There can be minimal variation in the 1) Depending on the serial number of the grill, there may manufacturing process of these outdoor products, so the be one or two connectors near the front of the grill just alignment tool will not be precise in all applications.
- Page 20 Outdoor Grill Installation Install Side Burner to Cart GAS LINE CONNECTION (LP GAS) GAS LINE CONNECTION (NATURAL GAS) 1) Connect 2-stage LP gas regulator to flare tee at 1) Split high pressure natural gas line into two lines, one location shown. Connect flare swivel connector to one to attach to outdoor grill natural gas regulator and one end of flare tee.
- Page 21 AUXILIARY HARNESS (IF APPLICABLE) at rear of grill. Attach one of 4-pin connectors to 4-pin If you purchased a Wolf outdoor grill with serial number connector attached to grill. Attach other 4-pin connec- listed below, you will have received an auxiliary harness. If tor to 4-pin connector from transformer.
- Page 22 If the outdoor grill still does not operate properly, contact Wolf factory certified service. Do not attempt All burners light properly, individually and with adjacent to repair the grill yourself. Wolf is not responsible for burners lit. service required to correct a faulty installation.
-
Page 23: Service Information
Wolf Appliance, Inc. ©Wolf Appliance, Inc. all rights reserved. Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc. - Page 24 WOLF APPLIANCE, INC. P. O. BOX 44848 MADISON, WI 53744 WOLFAPPLIANCE.COM 800.222.7820 816975 REV-A 3/ 2011...
