ALI M001S Installation Manual

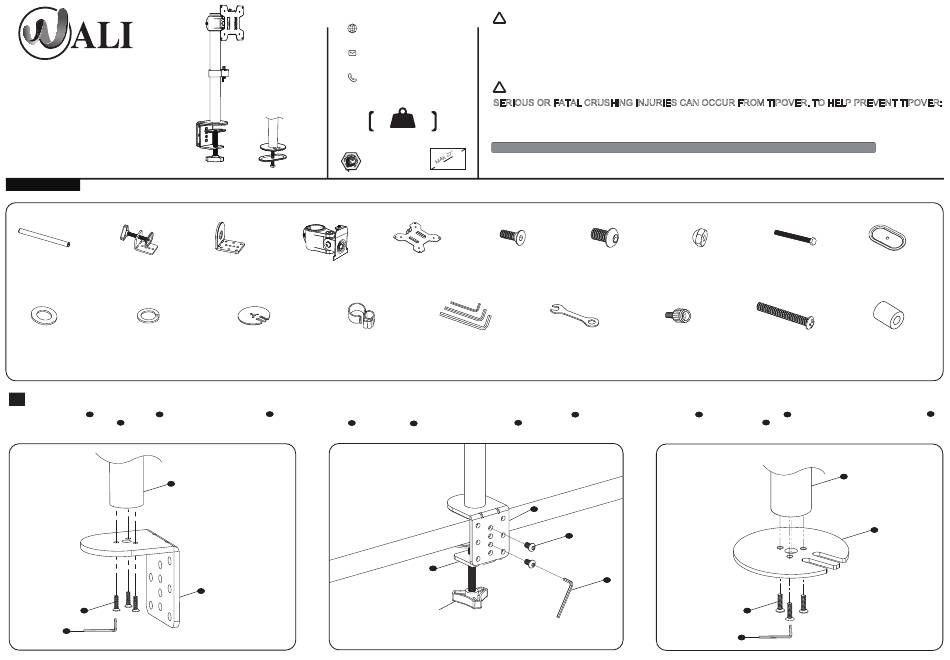

INSTALLATION MANUAL
Single Monitor Desk Mount
M001S

Supplied Parts List

Pole C-Clamp
a (x1) b (x1)
M10 Washer Spring Washer
k (x1) l (x1)
1

Option A : Clamp Installation

1. Connect Pole a and C-Clamp Brace c from the bottom using M5x14 Bolt f and a c
tighten with Allen Key 3mm o . o
a
f
o
