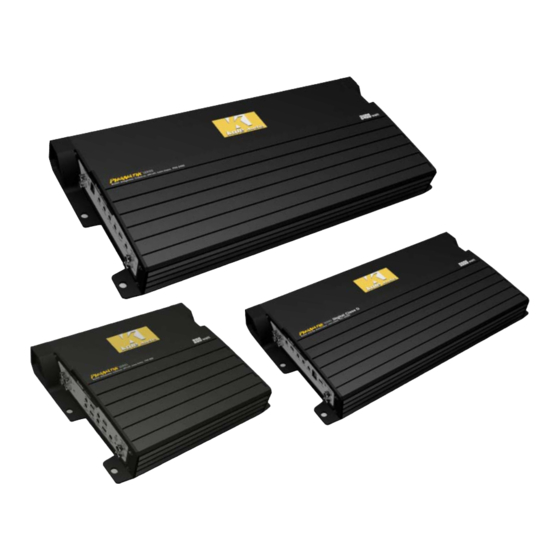

- Page 2 PHAnATIK SERIES Yes it a play on words! But the meaning is the same “Intense Uncritical Devotion” you won’t believe your eyes and ears when you power this bad boy up! The stunning good looks with Diamond Cut heat sink and Ebony color will bring you back to the trunk time and again! AMPLIFIERS New Hyper Bass...
- Page 3 Class A/B Common Features: • Stylized Sloping End Panels • Shinny Jet Black Heatsink with Diamond Cut Ribs • MOSFET transistor outputs • MOSFET Power Supply • PWM Circuitry • Full Selectable Crossover HI/Full/Low • Three Way Protection Circuit • 2-Ohm Stable Stereo •...
- Page 4 SERIES AMPLIFIERS The Kole KX series amps are designed and built with the Competition (SPL) enthusiast in mind. The top vent is designed to accelerate cooling to enable the amps to produce what they were designed for: extreme bass reproduction using the KX series unique proprietary power supply design.
- Page 5 • Bridging Synchronization • Variable Low Pass 50Hz-150Hz • Variable Subsonic Filter 15Hz-40hz • Variable Subwoofer EQ @ 45Hz • Phase Switch 0-180 Model 4ohm RMS KX1-2000D 1 KX1-3000D 1 KX1-4000D 1 1200 KX1-5500D 1 1700 Top Vent For Accelerated Cooling •...
- Page 6 AMPLIFIERS Chrome End Caps Leaving No Visible Connections Remote Dash Mount Bass Knob Control SERIES...
- Page 7 Kole Audio QX Series amplifiers are elegantly appointed with chrome endcaps, but functionality has not been overlooked, as evidenced by the abundance of thermal dispelling aluminum and air circulating channels on both sides of the heat sink. All this, along with our proprietary power supply design for extreme bass reproduction, keeps the...
-
Page 8: Common Features
What's cool? The Kole Audio KMX subwoofers. A revolutionary design in a direct-coupled aluminum dust cap increases thermal transfer from the voice coil by 50%. At the same time, the newly designed dust cap lowers the resonant frequency of the subwoofer, thereby extending the low-end. - Page 9 The MFW Series of subwoofers are designed especially for those who want big sound in a little space. The flat, compact construction of the MFW's means less volume displacement by the speaker itself, allowing these speakers to operate in spaces as small as 1.0 cubic feet, with a flat response down to around 35 Hz, and delivering tremendous punch from a sealed enclosure.
- Page 10 SUBWOOFERS Need some serious BASS, you want the edge in looks compared to your competition? And you’re on a budget…look no further, the KW2 series woofers bring you everything in a complete woofer to show and tell. Check out the sleek basket and massive motor structure, all encased by a smooth black contemporary color finish.
- Page 11 SUBWOOFERS A new woofer with out this world curves and performance. The KW1 series of woofers are perfect for that budget minded person, but still offers great performance factors. Excellent bang for the buck theory with a large 70 oz motor structure and awesome PP injected cone with laser etched logo.
- Page 12 KPS-694N 6x9” 4 Way Speakers 380 Watts • 40 oz Magnet • 1.5” Voice Coil • SPL 92dB • Imp. 4 Ohm • Multi Faceted Injection Molded Cone • Flush Rubber Magnet Cover KPS-683N 6x8” 3 Way Speakers 260 Watts •...
- Page 13 TWEETERS KB-1 2-Way Mount Tweeter 200 W • Niobium Rare Earth Ferroelectric Transducer Magnet • Polypropylene Diaphragm • 100 Watts R.M.S. • Freq. Resp. 5KHz-25KHz KB-4 4-way Mount Tweeter 250W • Niobium Rare Earth Ferroelectric Transducer Magnet • Polypropylene Diaphragm •...
- Page 14 CAPCELL TO CAP OR TO CELL… THAT IS THE QUESTION! Often called a “power cap” or “stiffening cap”, some people prefer caps over secondary batteries. A second battery is great for high power systems, but should be accompanied by an upgraded alternator that can efficiently charge both batteries.
- Page 15 C-6D • Digital power capacitor with auto control turn on/off circuitry • 6 Farad • 24 Volts DC • Digital display • Blue light strips • Digital voltage display • Square black chrome case • Charging/discharging signal blue flash LEDs •...
