We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance's aesthetic and functional qualities.
For further information on the product: www.smeg.com
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
tuo prodotto tra le
migliori offerte di Forni
Contents

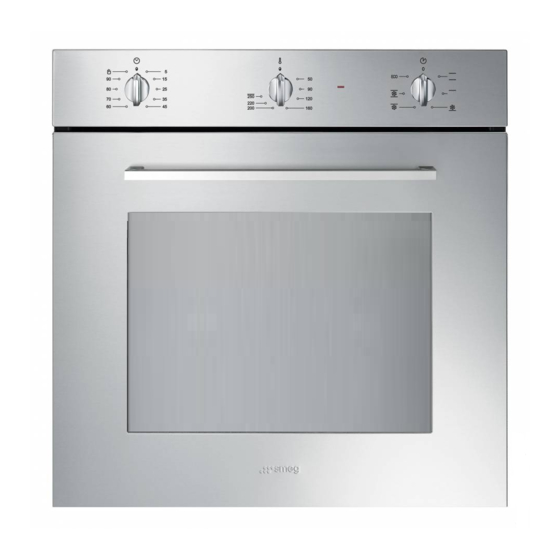

Smeg SF465
o cerca il
34
34
35
35
35
36
36
36
37
37
38
39
40
42
42
42
43
44
46
49
49
49
49
49
49
50
50
51
54
56
58
58
58
59
33
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Smeg SF465
Summary of Contents for Smeg SF465
-
Page 1: Table Of Contents
4.10 Extraordinary maintenance 5 Installation 5.1 Electrical connection 5.2 Cable replacement 5.3 Positioning We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance's aesthetic and functional qualities. For further information on the product: www.smeg.com... -
Page 2: Instructions
Instructions 1 Instructions • Do not try to repair the appliance yourself or without the intervention 1.1 General safety instructions of a qualified technician. • If the power supply cable is Risk of personal injury damaged, contact technical • During use the appliance and its support immediately and they will accessible parts become very hot. -
Page 3: Manufacturer Liability
Instructions 1.4 Disposal For this appliance This appliance must be disposed of • Ensure that the appliance is switched off separately from other waste before replacing the bulb. (Directives 2002/95/EC, 2002/ • Do not rest any weight or sit on the open 96/EC, 2003/108/EC). -
Page 4: Identification Plate
Instructions Our appliances are packed in non- 1.7 How to read the user manual polluting and recyclable materials. This user manual uses the following reading • Consign the packing materials to the conventions: appropriate selective collection centres. Instructions Plastic packaging General information on this user Danger of suffocation manual, on safety and final... -
Page 5: Description
Description 2 Description 2.1 General Description Multifunction models Multifunction models Models with pizza plate 1 Control panel 5 Fan 2 Oven light 6 Rack/tray support frames 3 Seal 7 Pizza plate 4 Door Frame shelf... -
Page 6: Control Panel
Description 2.2 Control panel Multifunction models Models with pizza plate... -
Page 7: Other Parts
Description 2.3 Other parts 1 Minute minder knob It allows you to use the minute minder timer Shelves or to perform manual cooking. The appliance features shelves for 2 Temperature knob positioning trays and racks at different heights. The insertion heights are indicated This knob allows you to select the cooking from the bottom upwards (see 2.1 General temperature. -
Page 8: Available Accessories
Description 2.4 Available accessories Oven tray Some models are not provided with all accessories. Rack Useful for collecting fat from foods placed on the rack above. Deep tray Useful for collecting fat from foods placed on the rack above and for cooking pies, pizzas and baked desserts. - Page 9 Description Pizza spatula Self-cleaning panels For easily placing the pizza on the pizza plate. Useful for absorbing small grease residues. Pizza plate cover The oven accessories intended to come into contact with food are made of materials that comply with the provisions of current legislation.
-
Page 10: Use
3 Use Improper use Risk of damage to enamelled 3.1 Instructions surfaces High temperature inside the oven • Do not cover the bottom of the oven during use cavity with aluminium or tin foil sheets. Danger of burns • If you wish to use greaseproof paper, place it so that it will not interfere with the •... -
Page 11: Using The Accessories
3.3 Using the accessories Tray rack The tray rack has to be inserted into the tray. Racks and trays In this way fat can be collected separately Racks and trays have to be inserted into the from the food which is being cooked. side guides until they come to a complete stop. -
Page 12: Using The Oven
For cooking use the special pizza function 3.4 Using the oven Switching the oven on To switch the oven on: 1. Select the cooking function using the function knob. 2. Select the temperature using the temperature knob. 3. Select cooking with the minute minder or manual cooking using the timer knob. - Page 13 Functions list Fan + bottom The combination of the fan with just the lower heating element allows Using the grill and the lower heating cooking to be completed more element in combination is rapidly. This system is particularly suitable for cooking on recommended for sterilising or for a single shelf, as it provides low finishing off the cooking of foods...
-
Page 14: Cooking Advice
Lower element Pizza The heat coming just from the The operation of the fan, combined bottom allows you to complete the with the grill and the lower heating cooking of foods that require a element, ensures consistent cooking higher bottom temperature, without even with complex recipes. - Page 15 Advice for cooking with the Grill and the Advice for defrosting and proving Fan with grill • Place frozen foods without their • Meat can be grilled even when it is put packaging in a lidless container on the into the cold oven or into the preheated first shelf of the oven.
- Page 16 Cooking information table Runner Temperature Food Weight (Kg) Function position from Time (minutes) (°C) the bottom Lasagne 3 - 4 Static 220 - 230 45 - 50 Pasta bake 3 - 4 Static 220 - 230 45 - 50 Roast veal Turbo 180 - 190 90 - 100...
-
Page 17: Cleaning And Maintenance
Cleaning and maintenance 4 Cleaning and maintenance 4.4 Food stains or residues Do not use metallic sponges or sharp 4.1 Instructions scrapers as they will damage the surfaces. Use ordinary non-abrasive products with Improper use the aid of wooden or plastic utensils if Risk of damage to surfaces necessary. -
Page 18: Cleaning The Door Glazing
Cleaning and maintenance 2. Grasp the door on both sides with both 4.6 Cleaning the door glazing hands, lift it forming an angle of around The glass in the door should always be kept 30° and remove it. thoroughly clean. Use absorbent kitchen roll. -
Page 19: Cleaning The Inside Of The Oven
Cleaning and maintenance 4.8 Cleaning the inside of the oven 3. Clean the external glass panel and the panels previously removed. Use For the best oven upkeep, clean it regularly absorbent kitchen roll. In case of after having allowed it to cool. stubborn dirt, wash with a damp sponge Take out all removable parts. - Page 20 Cleaning and maintenance Removing racks/trays support frames Removing self-cleaning panels and racks/trays support frames Removing the guide frames enables the sides to be cleaned more easily. This Removing the guide frames enables the operation should be performed each time sides to be cleaned more easily. This the automatic cleaning cycle is used (on operation should be performed each time some models only).
- Page 21 Cleaning and maintenance Regeneration of self-cleaning panels On pizza models only: (catalytic cycle) Remove in sequence the pizza plate cover The regeneration cycle of the self-cleaning (1) and the base (2) on which it is placed. panels is a cleaning method through The base has to be lifted a few millimetres, heating suitable for removing small grease then pulled outwards.
-
Page 22: Vapor Clean: Assisted Oven Cleaning (On Some Models Only)
Cleaning and maintenance Cleaning the pizza plate 4.9 Vapor Clean: assisted oven cleaning (on some models only) The pizza plate should be washed separately according to the following Vapor Clean is an assisted instructions: cleaning procedure which The stone must be cleaned after every use. facilitates the removal of dirt. - Page 23 Cleaning and maintenance Preliminary operations • Spray a water and washing up liquid solution inside the oven using a spray Before starting the Vapor Clean function: nozzle. Direct the spray against the side • Completely remove all accessories from walls, upwards, downwards and inside the oven.
-
Page 24: Extraordinary Maintenance
Cleaning and maintenance End of the Vapor Clean cycle 4.10 Extraordinary maintenance 4. Open the door and wipe away the less Removing and replacing the oven seal stubborn dirt with a microfibre cloth. To remove the oven seal: 5. Use an anti-scratch sponge with brass •... - Page 25 Cleaning and maintenance Replacing the internal light bulb 4. Slide out and remove the light bulb. Live parts Danger of electrocution • Unplug the appliance. 1. Completely remove all accessories from inside the oven. 2. Remove the rack/tray support frames. 3.
-
Page 26: Installation
Installation 5 Installation Fixed connection Fit the power line with an omnipolar circuit 5.1 Electrical connection breaker in compliance with installation regulations. Power voltage The circuit breaker should be located near Danger of electrocution the appliance and in an easily reachable position. -
Page 27: Positioning
Installation 5.3 Positioning Position of the power cable Heavy appliance Crushing hazard • Position the appliance into the cabinet cutout with the help of a second person. Pressure on the open door Risk of damage to the appliance • Never use the oven door to lever the appliance into place when fitting. - Page 28 Installation Fastening bushings Appliance overall dimensions (mm) 1. Remove the bushing covers inserted on the front of the appliance. 2. Mount the appliance into the recess. 3. Secure the appliance to the piece of furniture using screws. 4. Cover the bushings with the previously removed covers.
- Page 29 Installation Mounting under worktops (mm) Make sure that the piece of furniture rear/bottom part has an opening of approx. 60 mm.
- Page 30 Installation Mounting into a column (mm) Make sure that the piece of furniture top/rear part has an opening approx. 35-40 mm deep.
