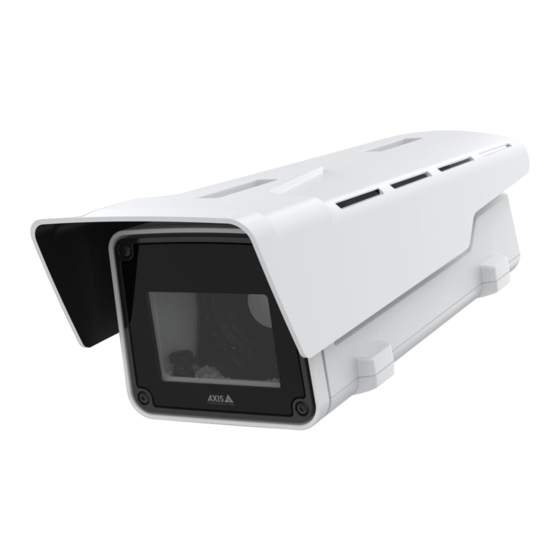

AXIS Q1656-LE Box Camera
AXIS Q1656-LE Box Camera
AXIS Q1656-BE Box Camera
AXIS Q1656-BLE Box Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q1656-BE and is the answer not in the manual?

Questions and answers

Related Manuals for Axis Q1656-BE

Summary of Contents for Axis Q1656-BE

  • Page 1 AXIS Q1656-LE Box Camera AXIS Q1656-LE Box Camera AXIS Q1656-BE Box Camera AXIS Q1656-BLE Box Camera User Manual...

  • Page 2: Table Of Contents

    AXIS Q1656-LE Box Camera Table of Contents Get started ..........

  • Page 3: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 4: Verify That No One Has Tampered With The Firmware

    Verify that no one has tampered with the firmware To make sure that the device has its original Axis firmware, or to take full control of the device after a security attack: 1. Reset to factory default settings. See Reset to factory default settings on page 60.

  • Page 5: Installation

    AXIS Q1656-LE Box Camera Installation Installation To watch this video, go to the web version of this document. help.axis.com/?&piaId=65234&section=get-started Installation video for the device.

  • Page 6: Configure Your Device

    AXIS Q1656-LE Box Camera Configure your device Configure your device Replace the lens 1. Stop all recordings and disconnect power from the product. 2. Disconnect the lens cable and remove the standard lens. 3. Attach the new lens and connect the lens cable.
  • Page 7 AXIS Q1656-LE Box Camera Configure your device • To lock the current exposure settings, select Hold current. Optimize IR illumination Depending on the installation environment and the conditions around the camera, for example external light sources in the scene, you can sometimes improve the IR illumination if you manually adjust the intensity of the LEDs.
  • Page 8 AXIS Q1656-LE Box Camera Configure your device • Increase the light level in the scene. • Mount the camera so that objects move toward it or away from it rather than sideways. Maximize the details in an image Important If you maximize the details in an image, the bitrate will probably increase and you might get a reduced frame rate.
  • Page 9 Use corridor format to better utilize the full field of view in a long and narrow area, for example a staircase, hallway, road, or tunnel. 1. Depending on your device, turn the camera or the 3-axis lens in the camera 90° or 270°.
  • Page 10 AXIS Q1656-LE Box Camera Configure your device Verify the pixel resolution To verify that a defined part of the image contains enough pixels to, for example, recognize license plates, you can use the pixel counter. ABC 123 1. Go to Video > Image and click 2.

  • Page 11: View And Record Video

    AXIS Q1656-LE Box Camera Configure your device Show an image overlay You can add an image as an overlay in the video stream. 1. Go to Video > Overlays. 2. Select Image and click 3. Go to the Images tab.

  • Page 12: Set Up Rules For Events

    AXIS Q1656-LE Box Camera Configure your device Reduce bandwidth and storage Important Reducing the bandwidth can result in loss of details in the image. 1. Go to Video > Stream. 2. Click in the live view. 3. Select Video format H.264.
  • Page 13 This example explains how to set the camera to trigger white light when it detects an object in night mode. The image becomes bright and colored. Make sure that AXIS Object Analytics is running: 1. Go to Apps > AXIS Object Analytics.
  • Page 14 Provide visual indication of an ongoing event You have the option to connect the AXIS I/O Indication LED to your network camera. This LED can be configured to turn on whenever certain events occur in the camera. For example, to let people know that video recording is in progress.
  • Page 15 8. Create a second rule and select the same Condition as in the first rule. 9. In the list of actions, select Toggle I/O while the rule is active, and then select the port the AXIS I/O Indication LED is connected to.
  • Page 16 If you update the overlay text it will be automatically updated on all video streams dynamically. Record video when a PIR detector senses motion This example explains how to connect an Axis PIR detector to the camera, and set up the camera to start recording when the detector senses motion.
  • Page 17 AXIS Q1656-LE Box Camera Configure your device 1. Set up the stream profile to include audio, see Add audio to your recording on page 18. Turn on audio detection: 1. Go to System > Detectors > Audio detection. 2. Adjust the sound level according to your needs.

  • Page 18: Audio

    AXIS Q1656-LE Box Camera Configure your device 7. Click Save. Audio Add audio to your recording 1. Go to Video > Stream > Audio and include audio. 2. If the device has more than one input source, select the correct one in Source.

  • Page 19: The Device Interface

    AXIS Q1656-LE Box Camera The device interface The device interface To reach the device interface, enter the device’s IP address in a web browser. Note Support for the features and settings described in this section varies between devices. Show or hide the main menu.

  • Page 20: Video

    AXIS Q1656-LE Box Camera The device interface Video Click to play the live video stream. Click to freeze the live video stream. Click to take a snapshot of the live video stream. The file is saved in the ‘Downloads’ folder on your computer. The image file name is [snapshot_YYYY_MM_DD_HH_MM_SS.jpg].
  • Page 21 AXIS Q1656-LE Box Camera The device interface • Refresh: Click to refresh the still image in the live view. Click to show the live view at full resolution. If the full resolution is larger than your screen size, use the smaller image to navigate in the image.
  • Page 22 AXIS Q1656-LE Box Camera The device interface Electronic image stabilization (EIS) : Turn on to get a smoother and steadier image with less blur. We recommend you to use EIS in environments where the device is mounted in an exposed location and subject to vibrations due to, for example, wind or passing traffic.
  • Page 23 AXIS Q1656-LE Box Camera The device interface Saturation: Use the slider to adjust the color intensity. You can for example get a grayscale image. Contrast: Use the slider to adjust the difference between light and dark. Brightness: Use the slider to adjust the light intensity. This can make objects easier to see. Brightness is applied after image capture, and doesn’t affect the information in the image.
  • Page 24 AXIS Q1656-LE Box Camera The device interface WDR: Turn on to make both bright and dark areas of the image visible. Local contrast : Use the slider to adjust the contrast of the image. A higher value makes the contrast higher between dark and light areas.
  • Page 25 • Move the slider towards Dark to increase the threshold for the IR-cut filter. The camera changes to night mode later. IR light If your device doesn’t have built-in illumination, these controls are only available when you have connected a supporting Axis accessory.
  • Page 26 AXIS Q1656-LE Box Camera The device interface • Flicker-free 60 Hz : The camera adjusts the aperture and gain automatically, and uses the shutter speed 1/60 s. • Flicker-reduced : This is the same as flicker-free, but the camera might use shutter speeds faster than 1/100 s (50 Hz) and 1/120 s (60 Hz) for brighter scenes.
  • Page 27 AXIS Q1656-LE Box Camera The device interface Lock aperture : Turn on to keep the aperture size set by the Aperture slider. Turn off to allow the camera to automatically adjust the aperture size. You can, for example, lock the aperture for scenes with permanent light conditions.
  • Page 28 Zipstream: A bitrate reduction technology, optimized for video surveillance, that reduces the average bitrate in an H.264 or H.265 stream in real time. Axis Zipstream applies a high bitrate in scenes where there are multiple regions of interest, for example in scenes with moving objects.
  • Page 29 AXIS Q1656-LE Box Camera The device interface Include: Turn on to use audio in the video stream. Source : Select what audio source to use. Stereo : Turn on to include built-in audio as well as audio from an external microphone.

  • Page 30: Audio

    AXIS Q1656-LE Box Camera The device interface Privacy masks : Click to create a new privacy mask. The maximum number of masks depend on the complexity of all masks combined. Each mask can have maximum 10 anchor points. Privacy masks: Click to change the color of all privacy masks, or to delete all privacy masks permanently.

  • Page 31: Recordings

    AXIS Q1656-LE Box Camera The device interface Audio clips Add clip: Click to add a new audio clip. Click to play the audio clip. Click to stop playing the audio clip. The context menu contains: • Rename: Change the name of the audio clip.

  • Page 32: Apps

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/applications. You need a license code and the Axis product serial number to generate a license key.
  • Page 33 AXIS Q1656-LE Box Camera The device interface Note The system uses the date and time settings in all recordings, logs and system settings. Network IPv4 Assign IPv4 automatically: Select to let the network router assign an IP address to the device automatically. We recommend automatic IP (DHCP) for most networks.
  • Page 34 One-click cloud connection One-click cloud connection (O3C) together with an O3C service provides easy and secure internet access to live and recorded video from any location. For more information, see axis.com/end-to-end-solutions/hosted-services. Allow O3C: • One-click: The default setting. Press and hold the control button on the device to connect to an O3C service over the internet.
  • Page 35 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 36 When configured without a CA certificate, server certificate validation is disabled and the device tries to authenticate itself regardless of what network it is connected to. When using a certificate, in Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).
  • Page 37 To install test firmware or other custom firmware from Axis on the device, you need a custom-signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 38 AXIS Q1656-LE Box Camera The device interface A rule defines the conditions that must be met for the product to perform an action. The list shows all the currently configured rules in the product. Note You can create up to 256 action rules.
  • Page 39 RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both MD5 and SHA-256 hash keys, we recommend using SHA-256 due to stronger security over MD5. For more information on how to configure an SFTP server with an Axis device, go to the AXIS OS Portal.
  • Page 40 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management systems (VMS).
  • Page 41 AXIS Q1656-LE Box Camera The device interface Connect: Turn on or off the MQTT client. Status: Shows the current status of the MQTT client. Broker Host: Enter the hostname or IP address of the MQTT server. Protocol: Select which protocol to use.
  • Page 42 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share, since each device gets its own folder.
  • Page 43 AXIS Q1656-LE Box Camera The device interface Ignore: Turn on to stop storing recordings on the network share. Retention time: Select how long to keep recordings, to limit the amount of old recordings or to comply with regulations regarding data storage. If the network storage becomes full, old recordings are removed before the selected time period has passed.
  • Page 44 Delete user: Delete the user. You can’t delete the root user. By creating an ONVIF user, you automatically enable ONVIF communication. Use the username and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com. ONVIF media profiles An ONVIF media profile consists of a set of configurations that you can use to change media stream settings.
  • Page 45 Network speaker pairing Network speaker pairing allows you to use a compatible Axis network speaker as if it is connected directly to the camera. Once paired, the speaker acts as an audio out device where you can play audio clips and transmit sound through the camera.
  • Page 46 AXIS Q1656-LE Box Camera The device interface Clear fields: Click to clear all fields. Connect: Click to establish connection to the network speaker. I/O ports Use digital input to connect external devices that can toggle between an open and closed circuit, for example PIR sensors, door or window contacts, and glass break detectors.

  • Page 47: Maintenance

    Severity: Select which messages to send when triggered. CA certificate set: See the current settings or add a certificate. Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page. Maintenance Restart: Restart the device.
  • Page 48 The device interface Note All Axis device firmware is digitally signed to ensure that you only install verified firmware on your device. This further increases the overall minimum cybersecurity level of Axis devices. For more information, see the white paper “Signed firmware, secure boot, and security of private keys”...

  • Page 49: Learn More

    Capture modes What capture mode to choose depends on the requirements for the frame rate and resolution of the specific surveillance setup. For specifications about available capture modes, see the product’s datasheet at axis.com. Remote focus and zoom The remote focus and zoom functionality allows you to make focus and zoom adjustments to your camera from a computer. It is a convenient way to ensure that the scene’s focus, viewing angle and resolution are optimized without having to visit the camera’s...

  • Page 50: Overlays

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to older MPEG formats.
  • Page 51 AXIS Q1656-LE Box Camera Learn more Bitrate control Bitrate control helps you to manage the bandwidth consumption of your video stream. Variable bitrate (VBR) Variable bitrate allows the bandwidth consumption to vary depending on the level of activity in the scene. The more activity, the more bandwidth you need.

  • Page 52: Applications

    Actual average bitrate Applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications.

  • Page 53: Security

    AXIS Object Analytics AXIS Object Analytics is an analytic application that comes preinstalled on the camera. It detects objects that move in the scene and classifies them as, for example, humans or vehicles. You can set up the application to send alarms for different types of objects. To find out more about how the application works, see the user manual.

  • Page 54: Specifications

    AXIS Q1656-LE Box Camera Specifications Specifications Product overview 9 10 Weather shield Wiper Window Light sensor IR illumination LED Optical unit Spring loaded thumb screw (4x) Cable cover Intrusion alarm sensor 10 IK10 tool 11 Safety wire 12 Intrusion alarm magnet...

  • Page 55: Led Indicators

    AXIS Q1656-LE Box Camera Specifications NOTICE TICE TICE Do not lift the product in the cable cover. 13 I/O connector 14 RS485/422 connector 15 Power connector 16 Status LED 17 Network connector (PoE) 18 microSD card slot 19 Audio out...

  • Page 56: Sd Card Slot

    This product supports microSD/microSDHC/microSDXC cards. For SD card recommendations, see axis.com. microSD, microSDHC, and microSDXC Logos are trademarks of SD-3C LLC. microSD, microSDHC, microSDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.
  • Page 57 AXIS Q1656-LE Box Camera Specifications 1 Tip 2 Ring 3 Sleeve Electret power if selected Ground Unbalanced microphone (with or without electret power) or line Ground Balanced microphone (with or without phantom power) Balanced microphone (with or without phantom or line, “hot” signal power) or line, “cold”...
  • Page 58 AXIS Q1656-LE Box Camera Specifications Example DC ground DC output 12 V, max 50 mA I/O configured as supervised input I/O configured as output Configurable I/O Configurable I/O Power connector 2-pin terminal block for DC power input. Use a Safety Extra Low Voltage (SELV) compliant limited power source (LPS) with either a rated output power limited to ≤100 W or a rated output current limited to ≤5 A.
  • Page 59 AXIS Q1656-LE Box Camera Specifications • Four-wire RS422 full duplex point to point communication Function Notes RS485B alt RS485/422 RX(B) RX pair for all modes (combined RX/TX for 2-wire RS485) RS485A alt RS485/422 RX(A) TX pair for RS422 and 4-wire RS485...

  • Page 60: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 61: Technical Issues, Clues, And Solutions

    3. Go to Maintenance > Firmware upgrade and click Upgrade. When the upgrade has finished, the product restarts automatically. You can use AXIS Device Manager to upgrade multiple devices at the same time. Find out more at axis.com/products/axis-device-manager. Technical issues, clues, and solutions If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support.

  • Page 62: Performance Considerations

    IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).

  • Page 63: Contact Support

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. Contact support Contact support at axis.com/support.
  • Page 64 User Manual Ver. M6.2 AXIS Q1656-LE Box Camera Date: October 2022 © Axis Communications AB, 2021 - 2022 Part No. T10171077...
