Declaration of Conformity
We, Manufacturer/Importer
OvisLink Corp.
5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist.,
New Taipei City 231, Taiwan
Declare that the product

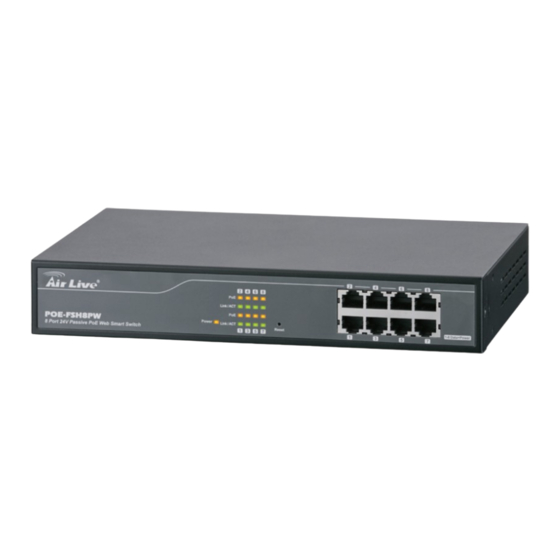

8 Port 24V Passive PoE Web Smart Switch
AirLive POE-FSH8PW
is in conformity with
In accordance with 2004/108/EC Directive and 1999/5 EC-R & TTE Directive
Clause
■
EN 55022:2006+A1: 2007: Class A
■ EN 55024:1998+A1: 2001+A2:2003
■ EN60950-1: 2006+ A11:2009+A1:2010
■ CE marking
Manufacturer/Importer
Signature：
Name：Albert Yeh
Position/ Title : Vice President
Place : Republic of China (Taiwan)
Description
Limits and methods of measurement of radio disturbance characteristics of
information technology equipment. Information technology equipment-
immunity characteristics- limits and methods of measurement.
Safety for information technology equipment including electrical business
equipment
WARNING
Date：2011/08/30
AirLive POE-FSH8PW
8 Port 24V Passive PoE Web Smart Switch
Please make sure your device's PoE port can accept 24V passive PoE power. 12V
passive PoE kit will not work with this switch.
The switch does not include the optional rack mount kit, it must be purchased
separately
It is recommended that you install the switch with an UPS to protect from potential
power surge.
By default, the POE function of each port is disabled. You must enable it by going to
the web management.
!Please do not enable the PoE function on the ports that are not connected to the
passive PoE devices. Enabling PoE power on a port that is connected with PC or
switch can cause damage or fire hazard.
Quick Setup Guide
Advertisement
Related Manuals for Ovislink AirLive POE-FSH8PW
Summary of Contents for Ovislink AirLive POE-FSH8PW
- Page 1 AirLive POE-FSH8PW 8 Port 24V Passive PoE Web Smart Switch Quick Setup Guide Declaration of Conformity We, Manufacturer/Importer OvisLink Corp. 5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist., New Taipei City 231, Taiwan Declare that the product 8 Port 24V Passive PoE Web Smart Switch...
-
Page 2: Regulatory Approvals
■ EN 55022:2006+A1: 2007: Class A EN 55024:1998+A1: 2001+A2:2003 OvisLink Corp. izjavljuje da je ovaj uređaj u Limits and methods of measurement of radio disturbance characteristics of information technology skladu sa neophodnimpreporukama i ostalim equipment. Information technology equipment-immunity characteristics- limits and methods of važnim odredbama Directive 1999/5/EC. -
Page 3: Installation Steps
Installation Steps Figure A Figure B Figure C Passive PoE English Česky Important Information Důležité informace : The default IP address: 192.168.2.1 Tovární IP adresa je : 192.168.2.1 The default username is admin Tovární uživatelské jméno je admin The default password is airlive Tovární... - Page 4 Magyar Bahasa Fontos információ Informasi Penting Az alapértelmezett IP-cím: 192.168.2.1 Standar alamat IP : 192.168.2.1 Az alapértelmezett felhasználói név: admin Standar Username adalah admin Az alapértelmezett jelszó: airlive Standar password adalah airlive Amikor a switchet a gyári csomagból kiveszi, a PoE portok nem adnak feszültséget. Ezt az Secara pabrikan, pada port PoE powernya adalah off.
-
Page 5: Poe Switch
PoE Switch Warning before you install your POE Switch Quick Setup Guide Connect Connect POE-FSH804 PoE Status Link/ACT POWER SPEED PoE Max. 8-Port Fast Ethernet POE Switch PoE Switch Power English Česky We recommend you to plug your switch to a Uninterruptible Power Doporučujeme použít záložní...
