MagniSight EXPLORER Classic MSE-L19 User Manual

Hide thumbs

Advertisement

Quick Links

R
MSE-L19
User's Manual

Advertisement

loading

Related Manuals for MagniSight EXPLORER Classic MSE-L19

Summary of Contents for MagniSight EXPLORER Classic MSE-L19

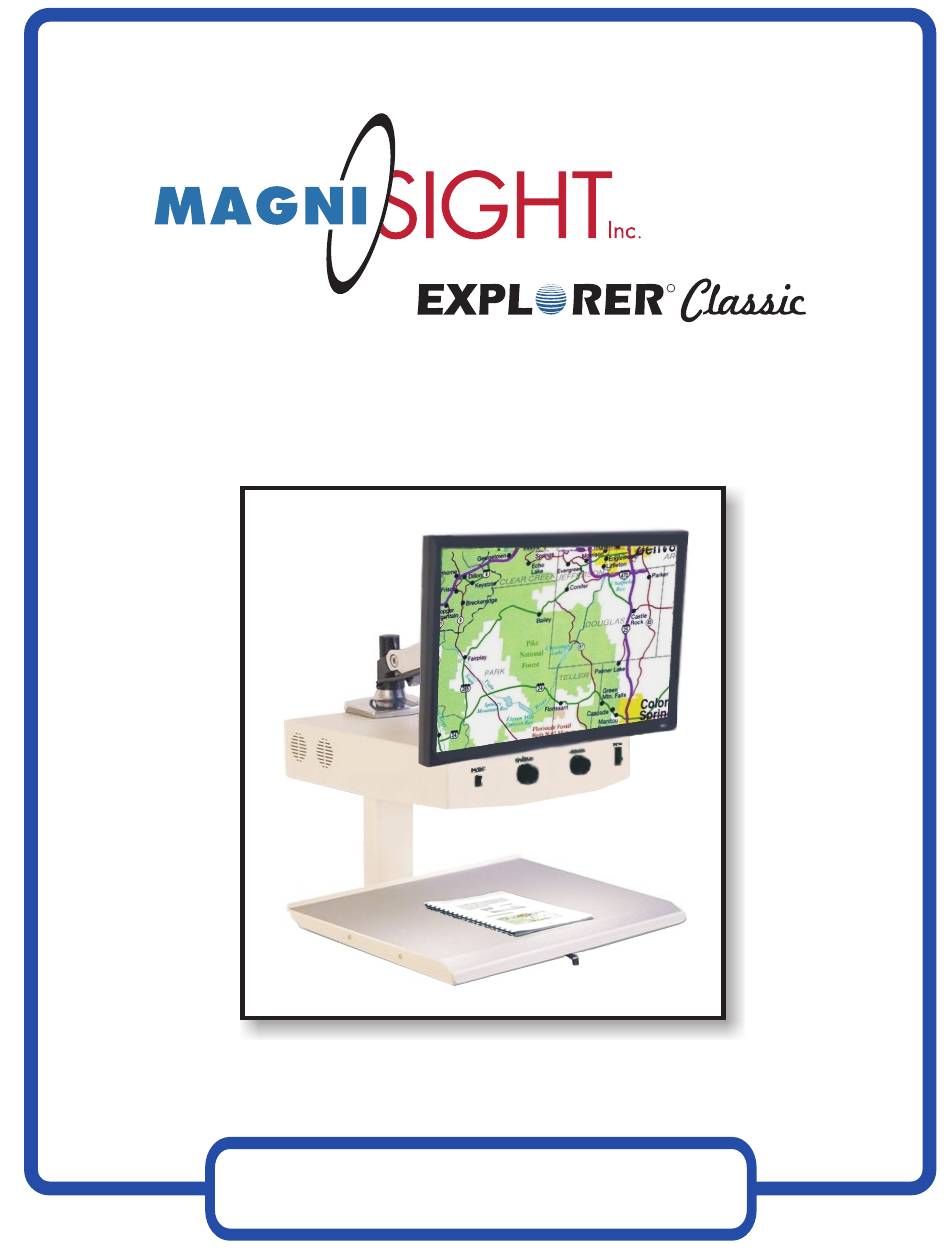

  • Page 1 MSE-L19 User's Manual...

  • Page 2: Table Of Contents

    Table of Contents SECTION 1: Unpacking and Set-Up of System........2 SECTION 2: Features and Operating Instructions......4 Turning ON the System..............4 Selecting Viewing Mode...............4 Adjusting Magnification............... 5 Adjusting Brightness..............6 Using the Viewing Table...............7 SECTION 3: Service and Safety Information........8 FCC Information: Explorer CCTV’s has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 3: Section 1: Unpacking And Set-Up Of System

    Section 1: Unpacking & Set-Up 1. Remove User’s Manual and power cord from top foam compartments and remove the upper foam packaging. IMPORTANT: DO NOT DISCARD packing carton and materials. In the event service or return of the unit is required in the future, the original packaging is REQUIRED to insure no damage occurs in shipping.
  • Page 4 Set-Up (cont’d) Monitor Power Cord DVI Signal Cable Power Cord (to Wall Outlet) CAUTION: THE POWER SUPPLY CORD IS USED AS THE MAIN DISCONNECT DEVICE. ENSURE THAT THE SOCKET- OUTLET IS LOCATED NEAR THE EQUIPMENT AND IS EASILY ACCESSIBLE 5. Next, connect the Monitor Power Cord to the AC OUT jack on the rear panel of the camera.

  • Page 5: Section 2: Features And Operating Instructions

    Section 2: Features & Instructions Turning ON the System Turn the unit ON using the Power Switch located on the right side of control panel of the camera housing. The lighting should illuminate the Viewing Table. If the Lights do not illuminate and the screen does not turn on, please check the power cord connections described in the previous section.

  • Page 6: Adjusting Magnification

    Selecting Viewing Mode (cont’d) By pushing the MODE Control Switch UP or DOWN you cycle through the viewing modes. In most cases, the Full Color mode works well for viewing pictures or color graphics while one of the Black & White or modes may perform better for reading or writing text.

  • Page 7: Adjusting Brightness

    Adjusting Magnification (cont’d) When first learning to use the camera system, place printed material on the Viewing Table and adjust the Size Control to the smallest magnification setting. Then begin turning the Size Control to increase the size of the image until you are able to read the text. Adjusting Contrast The Contrast Control is used to BRIGHTEN or DARKEN the image being viewed.

  • Page 8: Using The Viewing Table

    Using the Viewing Table The Viewing Table (sometimes referred to an X-Y Table) is mounted on a slide mechanism allowing it to move under the camera left to right and also front to back. This assists you in moving the material you are viewing under the camera.

  • Page 9: Section 3: Service And Safety Information

    Service Information Your Unit CONTAINS NO USER SERVICEABLE PARTS. ALL SERVICE MUST BE DONE BY THE FACTORY OR AN AUTHORIZED SERVICE CENTER (where available). In the event of malfunctions or questions, please contact us: MagniSight, Inc. Call (800) 753-4767, or (719)578-8893...
  • Page 10 In the event Service is required, you may be asked to send the unit to MagniSight’s main repair facility. The camera or system MUST BE SHIPPED IN THE ORIGINAL PACKAGING to prevent damage. Please call MagniSight for return information or to order packaging if needed. NOTES...
