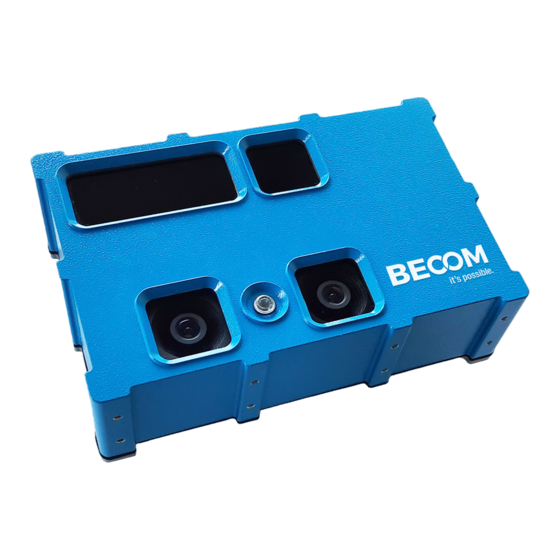

- Page 1 TOREO-P650 Quick Start Guide Version 1...
- Page 2 Quick Start Guide - TOREO-P650 Last change: 1 October 2021/Version 1 BECOM Systems GmbH Gutheil-Schoder-Gasse 17 1230 Wien AUSTRIA office.systems@becom-group.com systems.becom-group.com TOREO-P650 – Quick Start Guide Document No.: 900-308 / A Publication date: October 1, 2021 Subject to change without notice. Errors excepted.
-
Page 3: Table Of Contents
Connecting the power cable ................................. 7 2.1.3 Connecting the Ethernet Cable ..............................9 Evaluation Software ......................................10 Prepare your Network Interface Card (NIC) ..........................10 Start using your TOREO-P650 with ‘BltTofSuite’ ........................10 Optional Accessories ......................................11 4.1.1 Tripod Mounting Kit .................................... 11 4.1.2 Power Supply ...................................... - Page 4 BECOM Systems specifically disclaims any implied warranty of merchantability or fitness for a particular purpose. BECOM Systems takes no liability for any damages and errors causing of the usage of this board. The user of this board is responsible by himself for the functionality of his application.
-
Page 5: Unboxing
Quick Start Guide - TOREO-P650 Last change: 1 October 2021/Version 1 Unboxing 1.1 In the box • TOREO-P650 M12 Ethernet Cable • M12 Power Supply Cable • Single Wire to DC10 Adapter • © BECOM Systems 2021 5 | 16... -
Page 6: Connecting Your Toreo-P650
Last change: 1 October 2021/Version 1 2 Connecting your TOREO-P650 2.1 Connector Overview The TOREO-P650 has two IP67 compliant connectors: An eight pole X-coded M12 connector used for gigabit ethernet communication, and a twelve pole M12 connector for power supply, and IOs. Power Connector b. -
Page 7: Connecting The Power Cable
Quick Start Guide - TOREO-P650 Last change: 1 October 2021/Version 1 TOREO-P650 Figure 2-2: power cable layout Note Use a 24V power supply with at least 90W. If the camera doesn’t come up, please check the power connection and your power supply first. An appropriate power supply can be ordered from BECOM Systems (see chapter 6) 2.1.2... -
Page 8: Figure 2-3: Toreo-P650 Power Cable Connected
Note The power supply connector is protected against wrong polarity, but the ‘TOREO’ will not work in case you don’t use the correct polarity! If the TOREO-P650 doesn’t work, please check the power supply polarity first! © BECOM Systems 2021... -
Page 9: Connecting The Ethernet Cable
Quick Start Guide - TOREO-P650 Last change: 1 October 2021/Version 1 2.1.3 Connecting the Ethernet Cable Plug in the Ethernet cable (b) and connect your TOREO-P650 to your PC. Figure 2-4: TOREO-P650 connected to power and Ethernet © BECOM Systems 2021 9 | 16... -
Page 10: Evaluation Software
Download”. Please select the TOREO – P650 product link and download the Blt Tof Suite. 3.1 Prepare your Network Interface Card (NIC) Once you have connected your TOREO-P650 to a Network Interface Card (NIC) of your PC give this NIC the IP- Address 192.168.0.1 with a subnet mask of 255.255.255.0. -
Page 11: Optional Accessories
Last change: 1 October 2021/Version 1 4 Optional Accessories 4.1.1 Tripod Mounting Kit 3/8”-16 UNC tripod The TOREO-Mounting-Plate offers the possibility to mount the TOREO-P650 on a mount. Figure 4-1: Tripod mounting plate Figure 4-2: TOREO-P650 with tripod mounting plate © BECOM Systems 2021... -
Page 12: Power Supply
Quick Start Guide - TOREO-P650 Last change: 1 October 2021/Version 1 4.1.2 Power Supply Figure 4-3: TOREO-P650 power supply Figure 4-4: TOREO-P650 power supply connector © BECOM Systems 2021 12 | 16... -
Page 13: System Requirements & Support
Quick Start Guide - TOREO-P650 Last change: 1 October 2021/Version 1 5 System Requirements & Support An TOREO-P650 enabled application is required in order to use this ‘TOREO’ device. Connect to a system with: • Operating System: Microsoft Windows 7/8/10 32 bit (x68) or 64 bit (x64) processor •... -
Page 14: Related Products
Quick Start Guide - TOREO-P650 Last change: 1 October 2021/Version 1 6 Related products Article Name Description Number 150-3089-1 TOREO Tripod Mounting Kit Mounting plate with 3/8”-16 UNC tripod mount 510-0104 Power Supply 24VDC-3.75A, 100-240VAC Table 6-1: Related products Additional information can be found at suppport.systems.becom-group.com... -
Page 15: Document Revision History
Quick Start Guide - TOREO-P650 Last change: 1 October 2021/Version 1 7 Document Revision History Version Date Document Revision 2021 10 01 First draft Table 7-1: Revision history © BECOM Systems 2021 15 | 16... -
Page 16: A List Of Figures And Tables
Figure 2-2: TOREO-P650 power cable layout ................................... 7 Figure 2-3: TOREO-P650 power cable connected ................................. 8 Figure 2-4: TOREO-P650 connected to power and Ethernet ..........................9 Figure 4-1: Tripod mounting plate ......................................11 Figure 4-2: TOREO-P650 with tripod mounting plate ............................... 11 Figure 4-3: TOREO-P650 power supply....................................
