Titan Blis-Sonic Scaler SW/S
®
Replacement Assemblies and Spare Kits
Instruction Manual

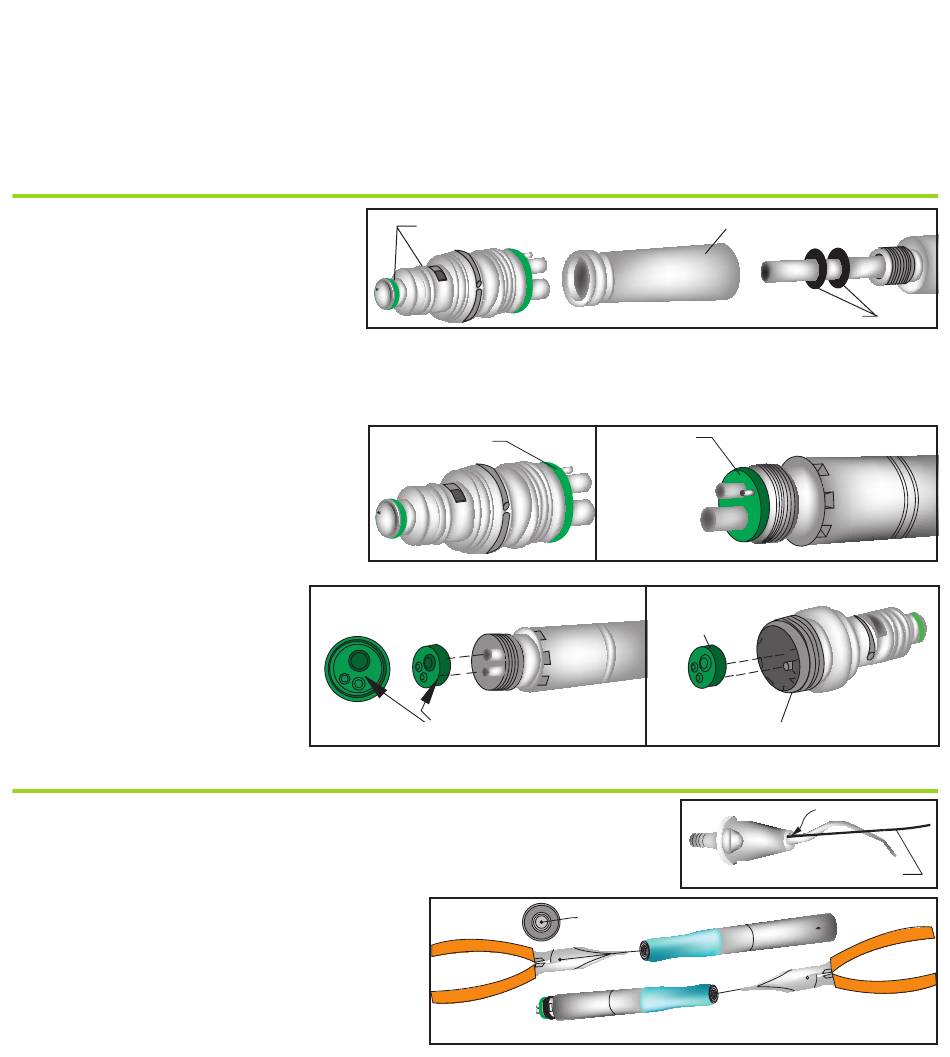

O-Rings & Rear Seal Replacement
Swivel O-Rings: Periodically replace the swivel
O-rings, StarDental ® Part #259884.
Front Suspension O-Rings: After two years, front
suspension O-rings relax resulting in play between
shaft and handle.
WARNING: Never remove scaler housing with tip assembled to the scaler.
1. Unthread the front of the scaler housing to expose the front suspension carrier.
2. Remove the two old O-rings and install the replacement O-rings, StarDental Part #256718.
3. Re thread front of scaler housing to original position.
Titan S/SW Rear Seal & Swivel O-Rings
Seals wear with repeated use. Replace rear seals
annually or as needed. On either the
2/3-line swivel or Titan S 2/3-line Scaler replace
the 2/3-line rear seal with StarDental Part #203103.
On either the 4-line swivel or Titan S 4-line Scaler
replace seal with StarDental Part #202897.
2/3-line for Titan S/SW
1. Remove 2/3-line rear seal with an
explorer.
2. Place new rear seal over drive air and
water tubes.
3. Carefully push seal into place using a
blunt instrument.

Cleaning Wire

CLEANING the Tips

Clean tips weekly by running cleaning wire, StarDental Part #256719, through entire tip starting at
opening in front.

CLEANING Titan SW or S Water Tube

On a regular basis or if a water tube blockage occurs,
remove the tip, and on the Titan SW also disconnect the
swivel. Push the cleaning wire through the internal water
tube using needle nose pliers at the front on both the Titan
SW and S as shown. Push small lengths of 3 to 4 mm at a
time until the wire emerges at the opposite end. Pull wire
completely out.
Instruments
Swivel O-Rings
Rear Seal on
the Swivel
Titan S 2/3-line
Rear Seal
Titan S:
Tube Assembly, Gasket, Retainer Ring, (2/3-Line) ..........................256454
Tube Assembly, Gasket (4-Line) .............................................................256455
Front of Scaler Housing
Rear Seal on
the 4-line
Titan S
Front - Titan K and SW
Front Suspension O-Rings
Rear Seal
Titan SW
Swivel
Opening
Cleaning Wire
2/3-line
