Summary of Contents for EK-Quantum Vector Terminal Cover

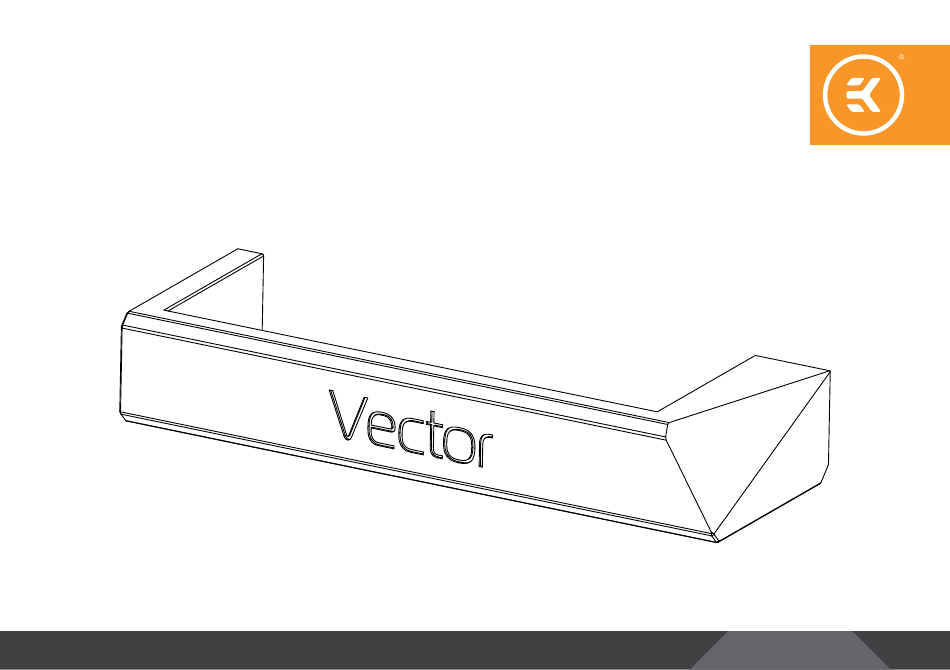

- Page 1 EK-Quantum Vector Terminal Cover USER GUIDE...
- Page 2 This product is intended for installation by expert users only. Please consult with a qualified technician since improper installation may result in damage to the equipment. EK assumes no liability whatsoever, expressed or implied, for the use of this product, nor its installation. The following instructions are subject to change without notice.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS TERMINAL COVER DIMENSIONS COMPATIBILITY INSTALLING THE EK-QUANTUM VECTOR TERMINAL COVER EXAMPLE OF THE FINAL LOOK SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS Allen Key 2 mm M4 x 4 Hexagon Socket Screw EK-Quantum Vector Terminal Cover - 4 -... -
Page 5: Terminal Cover Dimensions
TERMINAL COVER DIMENSIONS 85.10 mm COMPATIBILITY EK-Quantum Vector Terminal Cover is compatible with EK- Quantum Vector Water Blocks with two-piece terminal design as with EK-Quantum Scalar Flow Indicator and with EK-Quantum Scalar Multi GPU terminals. - 5 -... -
Page 6: Installing The Ek-Quantum Vector Terminal Cover
LED strip that illuminates the water block. TERMINAL COVER STEP 1 STEP 2 Position the EK-Quantum Vector Terminal Cover on the Terminal (Flow Indicator) of the water block with the help of milled markings behind the front side. Milled markings to help position the cover on the terminal. - Page 7 Example of attaching the cover on one of the GPU terminals. Example of attaching the cover on the EK-Quantum Scalar Flow Indicator. - 7 -...
-
Page 8: Example Of The Final Look
STEP 3 Using the 2 mm Allen Key screw in the two (2) M4 x 4 Hexagonal Socket Screws supplied with the Terminal Cover. Be careful not to use excessive force when tightening the screws as it is only necessary for the cover to remain on the Terminal (Flow Indicator)! STEP 3 EXAMPLE OF THE FINAL LOOK... -
Page 9: Support And Service
SUPPORT AND SERVICE In case you need assistance, please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
