Hardware Connections

5 Hardware Connections

5.1 CC31xxBOOST Plus CC31XXEMUBOOST

Figure 5-1 shows how to mount the CC31xxBOOST board on top of the CC31XXEMUBOOST board. Ensure
P1.1 of both boards is aligned with each other, as indicated by the white arrows on the boards.
Connect the RF connector (J2 or J3) to a WLAN tester/RF equipment for measurements. Ensure the RF
connection to the instrument is made before powering on the boards, so that the correct load impedance is
provided during power on.

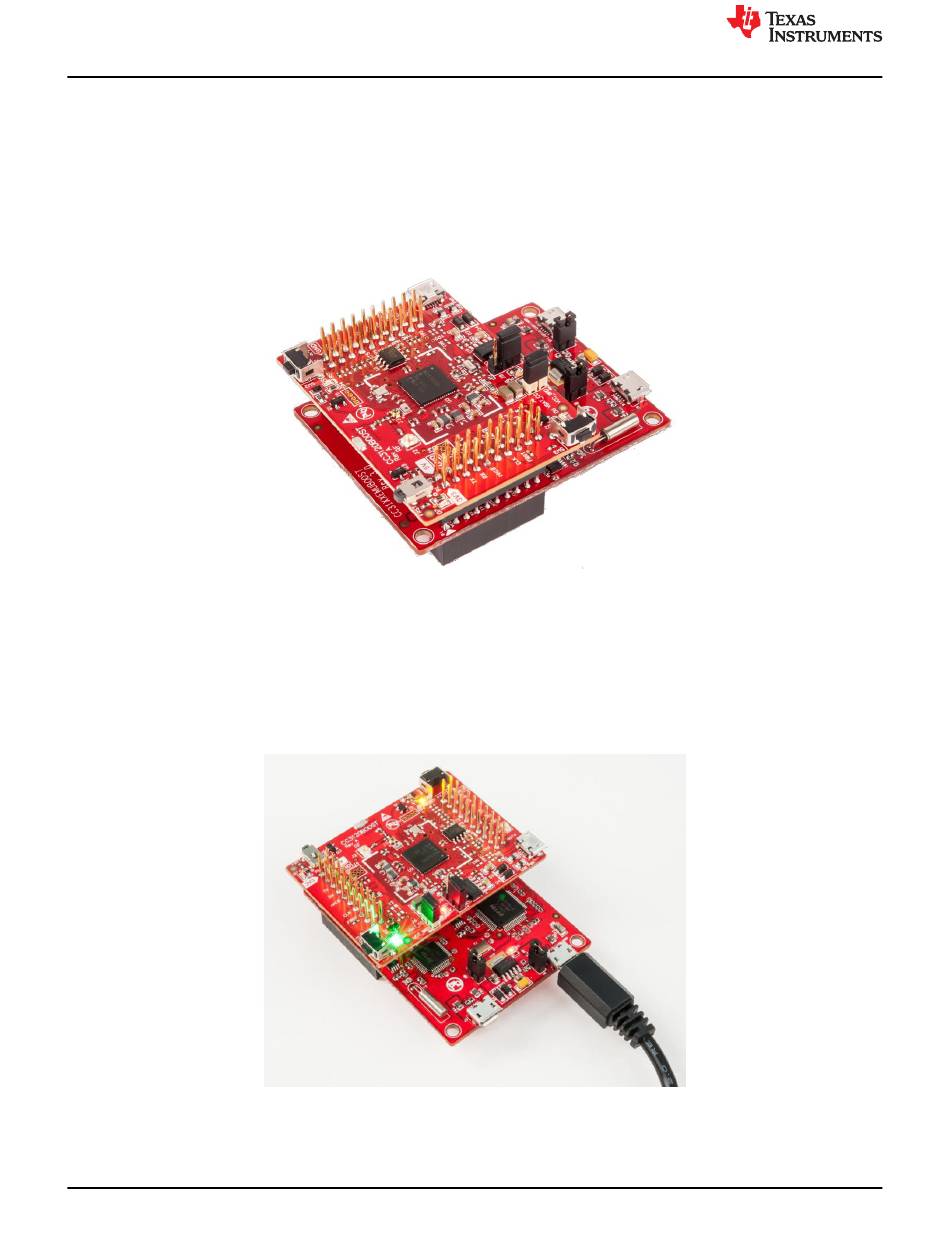

Figure 5-1. CC31xxBOOST Board Mounted on Top of CC31XXEMUBOOST Board
To power the platforms, connect the J6 port of CC31XXEMUBOOST to the Windows
cable, as shown in Figure
PC should recognize and list the connected device in the Device Manager, shown in
driver and SDK installation, see the
Started Guide.
