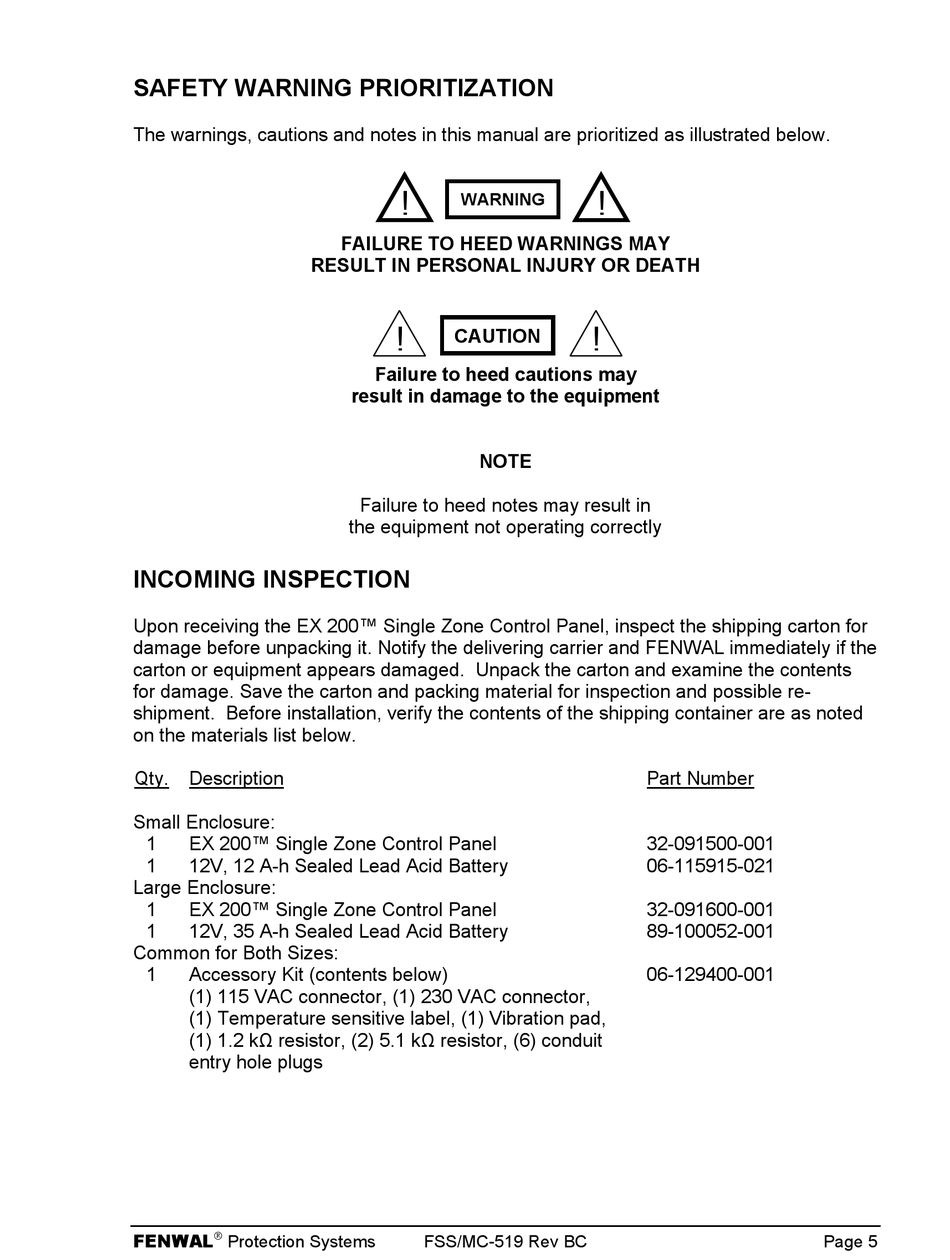

SAFETY WARNING PRIORITIZATION

The warnings, cautions and notes in this manual are prioritized as illustrated below.
RESULT IN PERSONAL INJURY OR DEATH

INCOMING INSPECTION

Upon receiving the EX 200™ Single Zone Control Panel, inspect the shipping carton for
damage before unpacking it. Notify the delivering carrier and FENWAL immediately if the
carton or equipment appears damaged. Unpack the carton and examine the contents
for damage. Save the carton and packing material for inspection and possible re-
shipment. Before installation, verify the contents of the shipping container are as noted
on the materials list below.
Qty. Description
Small Enclosure:
1 EX 200™ Single Zone Control Panel
1 12V, 12 A-h Sealed Lead Acid Battery
Large Enclosure:
1 EX 200™ Single Zone Control Panel
1 12V, 35 A-h Sealed Lead Acid Battery
Common for Both Sizes:
1 Accessory Kit (contents below)
(1) 115 VAC connector, (1) 230 VAC connector,
(1) Temperature sensitive label, (1) Vibration pad,
(1) 1.2 kΩ resistor, (2) 5.1 kΩ resistor, (6) conduit
entry hole plugs
FENWAL 
Protection Systems
!
WARNING
FAILURE TO HEED WARNINGS MAY
!
CAUTION
Failure to heed cautions may
result in damage to the equipment
NOTE
Failure to heed notes may result in
the equipment not operating correctly
FSS/MC-519 Rev BC
!
!
Part Number
32-091500-001
06-115915-021
32-091600-001
89-100052-001
06-129400-001
Page 5
