Summary of Contents for Numark N-WAVE 580L

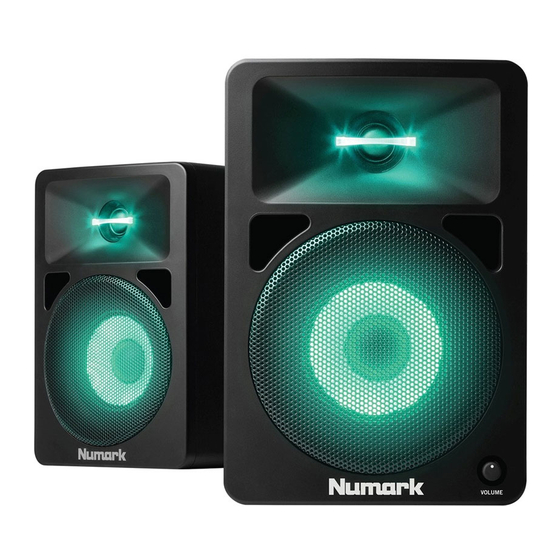

- Page 1 NP08 Service Manual N-WAVE 580L...
- Page 2 Content Package Diagram..........3 Disassembly Instruction.........4 Explosive View............5 Schematic............6-9 PCB layout............10-13 Full BOM............14-17 Level One BOM..........18-19...
- Page 4 NP08disassembly instruction 1) Master speaker 主箱维修 Remove the screws on rear panel, take out PCB, disconnect the wires, check if there is any damage of the electronic components. Replace damaged components if needed. If the driver is failure, please open the front panel, take off the screws fastened the driver and replace it.
- Page 14 NP08 BOM Part No Part Des. Unit Usage Position 56130215 control panel DN-MC2321,master,Alumimun,T=2.5mm,black, silkscreen 877C PCS 1 fastened on cabinet 54010192 control panel DN-PC1078,slave,ABS,T=2.5mm,black, silkscreen 877C PCS 1 fastened on cabinet 30060366 foam LAU8,black, adhesive PCS 2 on 6.5mm jack 30060095 foam 10*1000*1mm,EVA1030,black, adhesive PCS 1...
- Page 15 30090009 bunch 2.5*120mm,black PCS 2 tie inductor on L4,L2 16020084 cable AN-W284,4P,26#,UL2651,L=200mm,grey,T=2.0 PCS 2 master B+3 to B+4/R+3 to R+4/G+3 to G+4/V+3 to V+4,slave B+1 to B+2/RH to R+2/G+1 to G+2/V+1 to V+2 16050217 shielded wire AN-W5214,7P,26#,UL2547/1007,200mm,grey PCS 1 CON1B 16050218 shielded wire AN-W5215,7P,26#,UL2547/1007,200mm,grey PCS 1...
- Page 16 14041013 IC TLV70450DBVR,SOT23-5,TI,Mark:PAX PCS 1 14040900 IC STM8S103F3P6,TSSOP20 PCS 1 U7,burn the firmware after SMT 18040224 LED AN-L0183,WR-PA5050UEUGUB-C01,5050,RGB,color,SMD PCS 4 LED2-3,LED16-17 16010415 rainbow cable AN-W4287,4P,26#,UL1007,250mm PCS 2 CON3B to CON3A,CON3B to CON5A 26110003 FPC PCB AN-B110003,WFLED,325*81*0.2mm,yellow PCS 1 11171317 SMT resistor 1/2W,47Ω,±1%,2010, PCS 6 R48,R54,R55,R57,R64,R66...
- Page 17 23010295 poly bag PE,160*260*0.025mm,with hole PCS 1 pack manuals 22011009 User manual NP08,user manual,V1.1 PCS 1 22010704 safety&warranty man NUMARK,safety and warranty manual,V17.9 PCS 1 90200056 sticker coated paper,BLACK&361C print,Φ30mm PCS 1 1PC, right upper corner of master carton 90041494 sticker...
- Page 18 DN-PB0054,ABS,for drivers,black painted surface 0.100 20300073 foot pad Φ40mm,T=2.0mm,black, EVA1030(fire protection),adhensive one side 0.032 21010513 wood cabinet DN-X10211,slave,MDF,T=9mm,wrapped black PVC,with Sound Absorbing S 6.625 21010514 wood cabinet DN-X10212,master,MDF,T=9mm,wrapped black PVC,Sound Absorbing Shee 6.625 22010704 safety manual NUMARK,safety and warranty manual 0.103...
- Page 19 22011003 user guide NP08,user guide 0.125 23010020 poly bag PE,120*280*0.06mm 0.012 23010151 poly bag PE,440*540*0.08mm,w/hole 0.110 23010295 poly bag PE,160*260*0.025mm,w/hole 0.006 23020255 poly foam NP06,poly foam, harden, foaming rate 55 0.550 23020256 poly foam NP06,(2),poly foam, harden, foaming rate 50 0.075 23031352 master carton...
