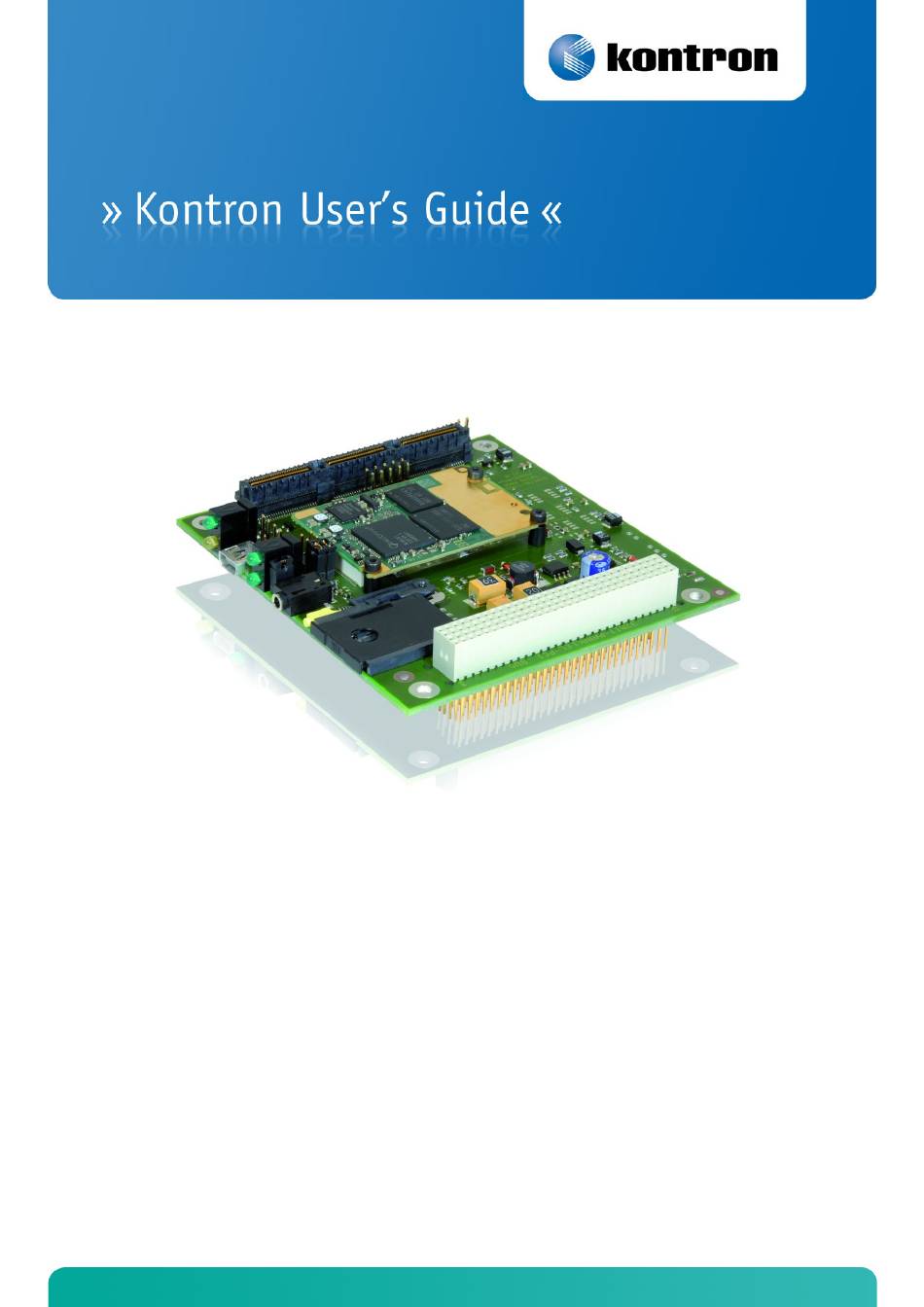

- Page 1 MSMGS104EX Document Revision 100 If it's embedded, it's Kontron.
-
Page 3: Table Of Contents
® MICROSPACE Documentation ....................7 MSMGS104EX Benefits......................7 Specifications................8 Functional Specifications ......................8 Dimensions..........................8 Electrical Specifications......................8 Environmental Specifications.....................8 MSMGS104EX Connectors & Jumpers........... 9 Connector & Jumper Locations ....................9 4.1.1 Top View ..........................9 Connector References ......................10 4.2.1 X2 Headset ......................... 10 www.kontron.com... - Page 4 ISA, Standard PS/2 – Connectors..................... 30 7.1.2 PCI/104 ..........................30 General PC Architecture ......................30 Ports ..........................31 7.3.1 RS-232 Serial ........................31 7.3.2 Serial ATA........................... 31 7.3.3 USB ..........................31 Programming ........................31 Appendix B: Document Revision History ..........32 Index..................33 www.kontron.com...
-
Page 5: User Information
Kontron AG will not be responsible for any defects or damages to other products not supplied by Kontron AG that are caused by a faulty Kontron AG product. -
Page 6: Technical Support
MSMGS104EX / User Information Technical Support Technicians and engineers from Kontron AG and/or its subsidiaries are available for technical support. We are committed to making our products easy to use and will help you use our products in your systems. -
Page 7: Rohs Compatible Product Design
Components and sub-assemblies are not subject to product compliance. In other words, since Kontron Compact Computers AG does not deliver ready-made products to end users the WEEE directive is not applicable for KCC AG. Users are nevertheless encouraged to properly recycle all electronic products that have reached the end of their life cycle. -
Page 8: The Swiss Association For Quality And Management Systems
The SQS Certificate ISO 9001:2000 has been issued to Kontron Compact Computers AG in the field of development, manufacturing and sales of embedded computer boards, embedded computer modules and computer systems. The certification is valid for three years at which time an audit is performed for recertification. -
Page 9: Introduction
PCI/104-Express expansion card MSMGS has a slot for Siemens HC25-GSM/UMTS communication modules as well as a SIM card bracket. The Siemens GSM/UMTS module has its own part number and must be ordered separately. The MSMGS104EX is PCI/104-Express, version 1.0, compliant. » ®... -
Page 10: Specifications
3.3 /5 Volt / 1W » Environmental Specifications Temperature Operating, standard version: -25°C to +70°C » Operating, industrial version: -25°C to +85°C (ask Kontron Compact Computers AG) » Non-operating (storage): -55°C to +85°C » Vibration 5 to 2000 Hz »... -
Page 11: Msmgs104Ex Connectors & Jumpers
MSMGS104EX / MSMGS104EX Connectors & Jumpers MSMGS104EX Connectors & Jumpers Connector & Jumper Locations 4.1.1 Top View www.kontron.com... -
Page 12: Connector References
MSMGS104EX / MSMGS104EX Connectors & Jumpers Connector References 4.2.1 X2 Headset Signal Audio IN Audio Out 4.2.2 X4 Mini-USB Connector Signal USB + USB - Ground Ground 4.2.3 J5 USB Connector Signal USB + USB - www.kontron.com... -
Page 13: X5 Pci/104-Express Bus (Bottom View Signal Assignment)
MSMGS104EX / MSMGS104EX Connectors & Jumpers 4.2.4 X5 PCI/104-Express Bus (Bottom View Signal Assignment) Signal Signal PE_RST# Reserved (GPIO0) 3.3V 3.3V USB0+ USB1+ USB0- USB1- PEx1_0T+ PEx1_1T+ PEx1_0T- PEx1_1T- PEx1_3T+ PEx1_2T+ PEx1_3T- PEx1_2T- PEx1_0R+ PEx1_1R+ PEx1_0R- PEx1_1R- PEx1_3R+ PEx1_2R+ PEx1_3R-... - Page 14 MSMGS104EX / MSMGS104EX Connectors & Jumpers Signal Signal SDVO_CLK SDVO_DAT (PENA#) PEx16_0R(0)+ / SDVO_TVCI+ PEx16_0R(8)+ PEx16_0R(0)- / SDVO_TVCI- PEx16_0R(8)- PEx16_0R(1)+ / SDVO_INT+ PEx16_0R(9)+ PEx16_0R(1)- / SDVO_INT- PEx16_0R(9)- PEx16_0R(2)+ / SDVO_STALL+ PEx16_0R(10)+ PEx16_0R(2)- / SDVO_STALL- PEx16_0R(10)- PEx16_0R(3)+ PEx16_0R(11) PEx16_0R(3)- PEx16_0R(11)- PEx16_0R(4)+...
-
Page 15: X6 Pci/104-Express Bus (Top View Signal Assignment)
MSMGS104EX / MSMGS104EX Connectors & Jumpers 4.2.5 X6 PCI/104-Express Bus (Top View Signal Assignment) Signal Signal Reserved (GPIO0) PE_RST# 3.3V 3.3V USB1+ USB0+ USB1- USB0- PEx1_1T+ PEx1_0T+ PEx1_1T- PEx1_0T- PEx1_2T+ PEx1_3T+ PEx1_2T- PEx1_3T- PEx1_1R+ PEx1_0R+ PEx1_1R- PEx1_0R- PEx1_2R+ PEx1_3R+ PEx1_1R-... -
Page 16: Jumpers
MSMGS104EX / MSMGS104EX Connectors & Jumpers Signal Signal SDVO_DAT (PENA#) SDVO_CLK PEx16_0R(8)+ PEx16_0R(0)+ / SDVO_TVCI+ PEx16_0R(8)- PEx16_0R(0)- / SDVO_TVCI- PEx16_0R(9)+ PEx16_0R(1)+ / SDVO_INT+ PEx16_0R(9)- PEx16_0R(1)- / SDVO_INT- PEx16_0R(10)+ PEx16_0R(2)+ / SDVO_STALL+ PEx16_0R(10)- PEx16_0R(2)- / SDVO_STALL- PEx16_0R(11) PEx16_0R(3)+ PEx16_0R(11)- PEx16_0R(3)- PEx16_0R(12)+... -
Page 17: The Gsm/Umts Module Hc25
MSMGS104EX / The GSM/UMTS Module HC25 The GSM/UMTS Module HC25 This section is taken from the Siemens HC25 Hardware Interface Description: Features of the HC25 Feature Implementation General Features Frequency Bands UMTS/HASDPA: tri-band, 850//1900/2100MHz GSM/GPRS/EDGE: quad-band, 850/900/1800/1900MHz GSM Class Small MS Output Power Class 4 (+33dBm ±2dB) for EGSM850... -
Page 18: Uicc/Sim Interface
MSMGS104EX / The GSM/UMTS Module HC25 Feature Implementation GSM / GPRS / EGPRS Features (continued) Audio Audio speech codecs GSM: AMR, EFR, FR, HR 3GPP: AMR CEPT supervisory tones supported DTMF supported 6 audio modes: Approval, Router, Handset, Headset, Speakerphone and Transparent... -
Page 19: Antenna Connector
MSMGS104EX / The GSM/UMTS Module HC25 Antenna Connector Product specifications of U.FL-R-SMT connector Item Specification Conditions Temperature No damage, cracks and looseness of parts. Temperature: +40°C 5 to 35°C +90°C 5 to 35°C Cycle Contact resistance: center 25m Time: 30 min... -
Page 20: Regulatory And Type Approval Information
MSMGS104EX / The GSM/UMTS Module HC25 Regulatory and Type Approval Information Directives Standards of North American type approval Standards of European type approval www.kontron.com... - Page 21 MSMGS104EX / The GSM/UMTS Module HC25 Standards of European type approval (continued) Requirements of quality Standards of the Ministry of Information Industry of the People's Republic of China www.kontron.com...
-
Page 22: Hc25 Installation
MSMGS104EX / The GSM/UMTS Module HC25 HC25 Installation If this module is not yet installed, a USB device will be shown in the task bar. At Autostart, end the installation according to the next 3 screens. www.kontron.com... - Page 23 MSMGS104EX / The GSM/UMTS Module HC25 www.kontron.com...
- Page 24 MSMGS104EX / The GSM/UMTS Module HC25 Install HC25 according to the following screens: www.kontron.com...
- Page 25 MSMGS104EX / The GSM/UMTS Module HC25 www.kontron.com...
- Page 26 MSMGS104EX / The GSM/UMTS Module HC25 www.kontron.com...
- Page 27 MSMGS104EX / The GSM/UMTS Module HC25 www.kontron.com...
- Page 28 MSMGS104EX / The GSM/UMTS Module HC25 Double click www.kontron.com...
-
Page 29: Hc25 Hyperterminal Setting, Telephone Choice
MSMGS104EX / The GSM/UMTS Module HC25 HC25 HyperTerminal Setting, Telephone Choice 1. Choose the connection name: Define the name for the connection. www.kontron.com... - Page 30 MSMGS104EX / The GSM/UMTS Module HC25 2. Choose the COM connection: Choose the COM connection for the modem. 3. Settings for the connection: Set baud rate to "115200" bits per second. Set flow control to "None". displays information about the GSM module...
-
Page 31: Assembly Views
MSMGS104EX / Assembly Views Assembly Views Top View www.kontron.com... -
Page 32: Appendix A: Architecture Information
MSMGS104EX / Appendix A: Architecture Information Appendix A: Architecture Information The following sources of information can help you better understand PC architecture. Buses 7.1.1 ISA, Standard PS/2 – Connectors AT Bus Design: Eight and Sixteen-Bit ISA, E-ISA and EISA Design, Edward Solari, Annabooks, 1990, ISBN 0- »... -
Page 33: Ports
MSMGS104EX / Appendix A: Architecture Information Ports 7.3.1 RS-232 Serial EIA232E standard » The EIA-232-E standard specifies the interface between (for example) a modem and a computer so that they » can exchange data. The computer can then send data to the modem, which then sends the data over a telephone line. -
Page 34: Appendix B: Document Revision History
MSMGS104EX / Appendix B: Document Revision History Appendix B: Document Revision History Revision Date Edited by Changes 011.Feb.2010 Changed to new Kontron Corporate Design from DLAG V1.0A including title photo. www.kontron.com... -
Page 35: Index
MSMGS104EX / Index Index Antenna Connector ......... 17 GSM/UMTS Module HC25 ........15 Architecture Information ........30 Assembly Views ..........29 Top..............29 HC25 ............15, 20 HyperTerminal Setting ...........27 Installation............22 Benefits ............7 Humidity ............8 Bus ..............8 Interfaces Connector References ........10 SIM..............16... - Page 36 MSMGS104EX / Index Shock ............. 8 Temperature............ 8 Specifications ..........8 Trademarks ............. 3 Electrical ...............8 Environmental............8 Functional .............8 USB ..............31 USB ..............31 SQS..............6 Standards............3 Swiss Association for Quality and Management Vibration ............8 Systems ............6 Swiss Quality............
- Page 37 MSMGS104EX / Index Corporate Offices Europe, Middle East & Africa Switzerland Kontron AG Kontron Compact Computers AG Oskar-von-Miller-Strasse 1 Nordstrasse 11/F 85386 Eching/Munich CH – 4542 Luterbach Germany Switzerland Tel.: +49 (0)8165/ 77 777 Tel.: +41 (0)32 681 58 00...
