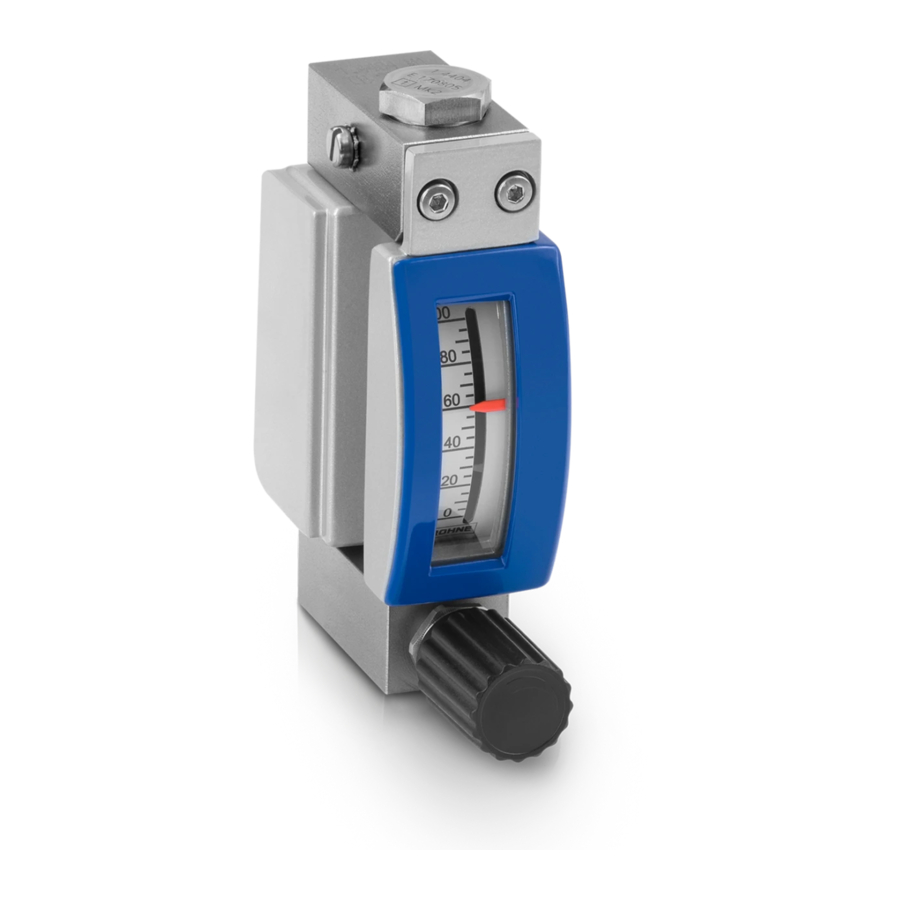

Variable area flowmeter with electrical built-ins
Equipment category II 2 G / II 2 D, EPL Gb / Db
in protection type intrinsic safety "i"
© KROHNE 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en
Supplementary Instructions
Supplementary Instructions
Supplementary Instructions
Supplementary Instructions
Advertisement
Table of Contents
Related Manuals for KROHNE DK32
Summary of Contents for KROHNE DK32
- Page 1 Supplementary Instructions Supplementary Instructions Variable area flowmeter with electrical built-ins Equipment category II 2 G / II 2 D, EPL Gb / Db in protection type intrinsic safety "i" © KROHNE 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en...
-
Page 2: Table Of Contents
4.2 Grounding and equipotential bonding................17 5 Operation 5.1 Start-up........................... 18 5.2 Operation ........................18 5.3 Electrostatic charge ....................... 18 6 Service 6.1 Maintenance ........................19 6.2 Dismantling ........................20 7 Notes www.krohne.com 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en... -
Page 3: Safety Instructions
Explosive Atmospheres" according to IEC 60079-0:2011 and IEC 60079-11:2011. The number of the IEC certificate is: IECEx KIWA 18.0007X IECEx KIWA 18.0007X IECEx KIWA 18.0007X IECEx KIWA 18.0007X 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en www.krohne.com... -
Page 4: Safety Instructions
This applies in particular to the use of easily detachable process connections when measuring flammable media. CAUTION! When an equipment fault is detected the device shall be de-energised and send back to the manufacturer for repair. www.krohne.com 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en... -
Page 5: Device Description
7 Ex - explosion-protected equipment 8 SK - SIL conformity according to IEC 61508 of the limit switch * positions which are not needed are omitted (no blank positions) 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en www.krohne.com... -
Page 6: Marking
4 Rating data: temperature & pressure rating 5 Ex data according to KIWA 18ATEX0008 X or IECEx KIWA 18.0007X 6 Built-in equipment 7 Note to observe the documentation and for disposal 8 PED data www.krohne.com 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en... - Page 7 4 Rating data: temperature & pressure rating 5 Ex data according to KIWA 18ATEX0008 X or IECEx KIWA 18.0007X 6 Built-in equipment 7 Note to observe the documentation and for disposal 8 PED data 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en www.krohne.com...
-
Page 8: Flammable Products
Definition of zone 21: An area in which an explosive atmosphere may occasionally occur in the form of a cloud of flammable dust in the air under normal operation. www.krohne.com 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en... -
Page 9: Types Of Protection
For the equipment category II 2 D or EPL Db, connection to an intrinsically safe circuit with protection level "ib" is required. When connecting the variable area flowmeter to an intrinsically safe circuit with protection level "ia", a higher protection level is given. 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en www.krohne.com... -
Page 10: Ambient Temperature / Temperature Classes
Maximum permissible product temperature T [°F] T3...T1 T3...T1 T3...T1 T3...T1 Ambient temperature DK3./../ESK/. Table 2-4: DK3./../ESK/./..-Ex permissible product and ambient temperatures in °F 1 Heat-resistant cable and cable entry ≥ 194°F www.krohne.com 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en... - Page 11 SJ2-SN 64 mW SJ2-SN 169 mW I7S2002-N 64 mW I7S2002-N 169 mW 131 Table 2-6: DK3./../K././..-Ex permissible product and ambient temperatures in °F 1 Heat-resistant cable and cable entry ≥ 194°F 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en www.krohne.com...
- Page 12 Also, when operating the variable area flowmeter outside of the hazardous area, the connection must be made to intrinsically safe circuits. When connecting to non-intrinsically safe circuits, there is a risk of damage to the safety- defining components. www.krohne.com 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en...
-
Page 13: Surface Temperature For Equipment Category Ii 2 D
Version DK3./../ESK/./..-Ex Version DK3./../R1/./..-Ex 30 VDC 30 VDC 130 mA 100 mA ≈ 0 nF 10 nF ≈ 0 µH ≈ 0 µH Table 2-14: Version DK3./../ESK/./..-Ex or version DK3./../R1/./..-Ex 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en www.krohne.com... -
Page 14: Installation
NOT suitable for use in explosion- protected areas in conjunction with oxygen applications (products with an oxygen content which is significantly above the oxygen content in the earth's atmosphere)! www.krohne.com 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en... -
Page 15: Electrical Connections
(e.g. EN 60079-14). The outer diameter of the connecting cable must be within the sealing range of the cable entry. The connecting cable must be fixed and laid so they are sufficiently protected against damage. 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en www.krohne.com... - Page 16 Fastening screw of connection box Table 4-1: Stranded wire colour for cable assembly Connection for indicator with current output ESK Figure 4-2: Electrical connection ESK 1 Connection terminals 2 Cable entry www.krohne.com 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en...
-
Page 17: Grounding And Equipotential Bonding
Figure 4-4: Ground terminal for ESK INFORMATION! The temperature at the electrostatic equalization connector on the DK32-DK34 measuring unit corresponds to the process temperature. It is thus the responsibility of the operator to select the connecting cable according to the process temperature. -
Page 18: Operation
• spraying of electrons (e.g. in the vicinity of electrostatic painting systems). WARNING! Electrostatic charging of the housing surface by friction must be avoided. Variable area flowmeters must not be dry cleaned. www.krohne.com 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en... -
Page 19: Service
To do this, follow the instructions for exchanging the entire device (for details refer to Dismantling on page 20). 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en www.krohne.com... -
Page 20: Dismantling
In the case of environmentally critical or hazardous products, appropriate safety precautions • must be taken with regard to residual liquids in the measuring unit. New gaskets have to be used when re-installing the device in the piping. • www.krohne.com 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en... -
Page 21: Notes
NOTES DK32 - DK34 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en www.krohne.com... - Page 22 NOTES DK32 - DK34 www.krohne.com 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en...
- Page 23 NOTES DK32 - DK34 12/2019 - 4007138001 - AD DK32-34 Exi Gb-Db R01 en www.krohne.com...
- Page 24 • Process Analysis • Services Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 47058 Duisburg (Germany) Tel.: +49 203 301 0 Fax: +49 203 301 10389 info@krohne.com The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
