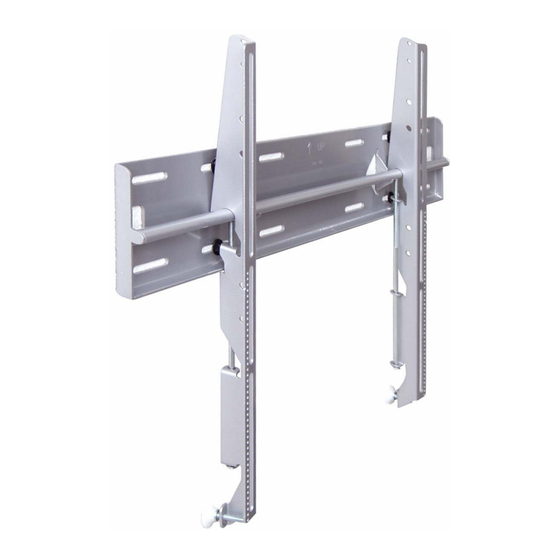

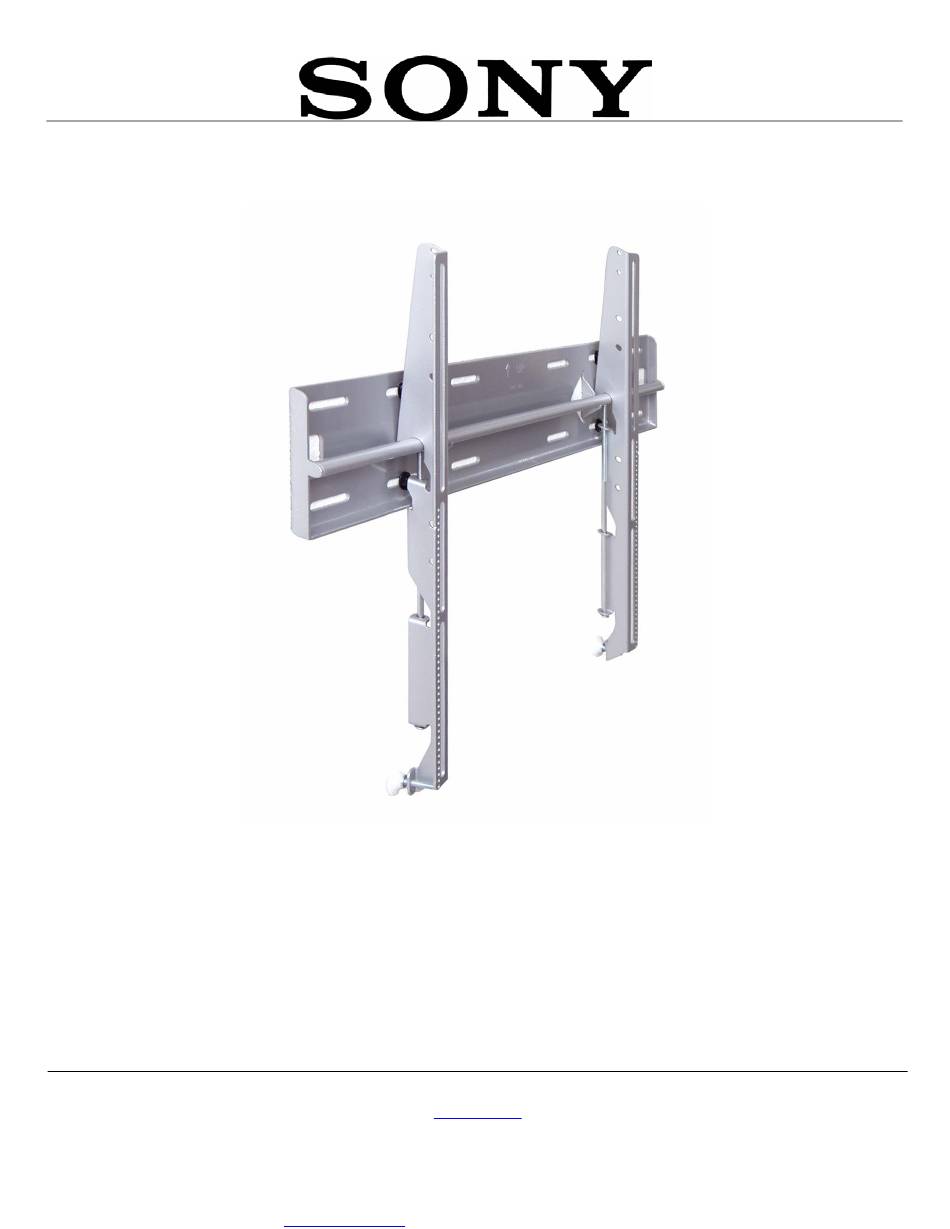

- Page 1 INSTALLATION MANUAL SFM1 Sony Electronics, Inc. 16540 West Bernardo Drive San Diego, CA 92127 www.sony.com IN-SFM1.R2 Great user manuals database on UserManuals.info...
- Page 2 PBL-110 Projector Mount Page - 2 - Installation Manual Great user manuals database on UserManuals.info...
-
Page 3: Table Of Contents
SFM1 Table of Contents WARNING STATEMENTS ..........................- 4 - PARTS LIST ..............................- 5 - FLAT PANEL LIST ............................- 5 - INSTALLATION TOOLS ..........................- 5 - FLAT PANEL MOUNT LOCATION ......................- 6 - MOUNTING BRACKET POSITIONING ......................- 6 - GRIPLATES™ ..............................- 8 - WOOD STUD LOCATION ..........................- 9 -... -
Page 4: Warning Statements
SFM1 Warning Statements WARNING: THE WALL STRUCTURE MUST BE CAPABLE OF SUPPORTING AT LEAST FIVE (5) TIMES THE WEIGHT OF THE DISPLAY. IF NOT, THE WALL STRUCTURE MUST BE REINFORCED. PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUCTIONS, MUST BE ADHERED TO. -
Page 5: Parts List
This wall mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Sony Electronics (800)222-7669. Wall Plate... -
Page 6: Flat Panel Mount Location
SFM1 Flat Panel Mount Location WARNING: INVERT THE FLAT PANEL. PLACE IT ON A SOFT, FLAT SUFRACE TO PREVENT DAMAGE TO THE FLAT PANEL. USE A BLANKET, FOAM, ETC. FAILURE TO DO SO WILL RESULT IN DAMAGING THE FLAT PANEL. DO NOT LAY THE FLAT PANEL ON THE FLOOR WITHOUT ANY PROTECTION TO THE GLASS. - Page 7 SFM1 Mounting Brackets Arrows Facing OUT Bottom of Flat Panel Figure 3. Mounting Bracket Installation NOTE: The mounting guides are designed with a center viewing guide on the side of them. There will be a “notch” cut on the side of the bracket (Figure 4).
-
Page 8: Griplates
SFM1 Griplates™ The Griplates™ have M4, M5, M6 and M8 hole patterns to fit the hardware that the flat panel requires. Example: If your display uses M8 x 20 Phillips head screws. Use the M8 mounting points (Figure 5). Dimples Figure 5. -
Page 9: Wood Stud Location
SFM1 Wood Stud Location Using a stud finder, locate the 16” or 24” stud centers behind the wall. Once found, make a pencil mark on the center of the wood studs (Figure 7). NOTE: The wall plates have three 16” and 12” mounting slot positions. -
Page 10: Marking The Mounting Points
SFM1 Marking the Mounting Points Place the bottom portion of the wall plate to the reference line and mark the four (4) lag bolt mounting points through the wall plate slots on the wall. Level the wall plate with the reference arrow pointing up to the ceiling (Figure 9). -
Page 11: Securing The Wall Plate To The Wooden Studs
SFM1 Use the information below when mounting to the following surfaces (Figure 10): Wood Studs: Drill four (4) ¼” pilot holes to the marked wall. Concrete Wall: Drill four (4) 3/8” pilot holes to the marked wall Drill Gun Pilot Holes 16"... -
Page 12: Securing The Wall Plate To A Concrete Wall
SFM1 Securing the Wall Plate to a Concrete Wall Level and secure the plate to the wall with the reference arrow facing up to the ceiling. Use a minimum diameter of 5/16” x 2 ¼” wedge anchors – commercially available (Figure 12). -
Page 13: Securing The Flat Panel To The Wall Mount
SFM1 Securing the Flat Panel to the Wall Mount WARNING: At least (2) qualified personnel are strongly recommended for installation of this product. Failure to do so could result in serious injury and possible damage to the flat panel. Raise the flat panel with the LEFT and RIGHT mounting brackets secured to the flat panel and insert the top hooks from each bracket to the rod on the wall plate (Figure 13). -
Page 14: Csl2 Security Cable
SFM1 CSL2 Security Cable Page - 14 - Installation Manual Great user manuals database on UserManuals.info... -
Page 15: Technical Specifications
SFM1 Technical Specifications A. Wall plate (711.2) B. Mounting brackets (406.4) C. ¼” x 20 Safety screws (406.4) D. Leveling feet (406.4) (88.9) (31.75) (606.92) (49.53) (127) (36.91) Figure 15. Technical Specifications Installation Manual Page - 15 - Great user manuals database on... -
Page 16: Warranty
Limited Lifetime Warranty This product carries a limited lifetime warranty from ship date against defects in materials and workmanship. Sony Electronics is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury. Customer Support In the event of missing and/or damage equipment, or technical questions, the following information can help in the completion of the installation.
