Mongoose LT604 User Manual

Rechargeable battery powered 4g gps trackers
Hide thumbs Also See for LT604:
Table of Contents

Advertisement

Quick Links

Download this manual
Rechargeable Battery Powered 4G GPS Trackers
Dual Passwords for Double Data Protection & Security
Included;
 1 x GPS tracker with built-in magnets & Long-Life Battery (see carton for model)
 1 x USB charger cable
 Free APP for your mobile phone - Android or IOS.
 Free access to the online website
This product requires a mobile SIM card (not included).
Data only SIM cards are not compatible.
Mongoose Australia PTY Limited
Mongoose (New Zealand) Limited
LT604 GPS TRACKERS
www.mongoose.com.au
www.mongoose.co.nz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT604 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mongoose LT604

Summary of Contents for Mongoose LT604

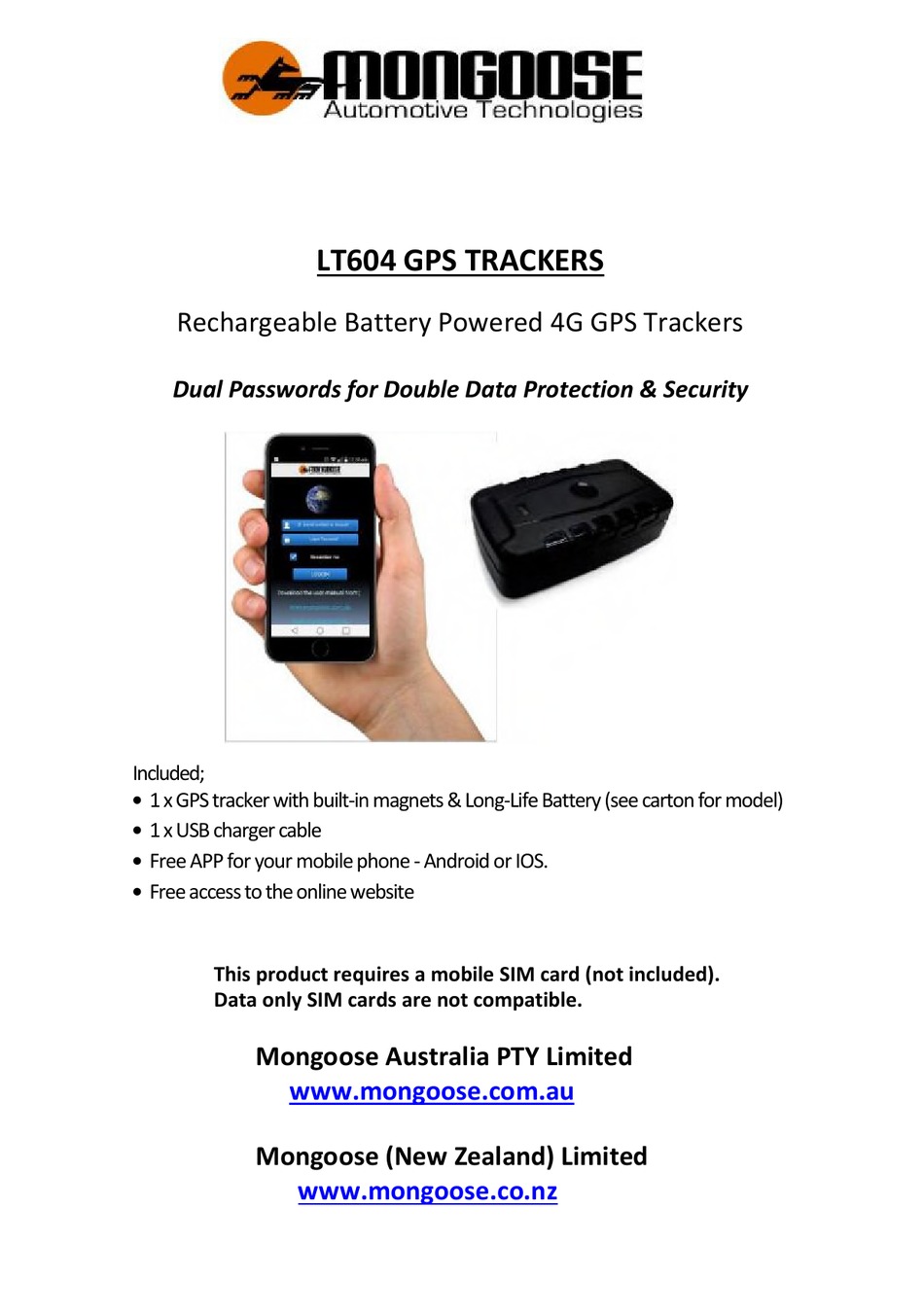

  • Page 1 LT604 GPS TRACKERS Rechargeable Battery Powered 4G GPS Trackers Dual Passwords for Double Data Protection & Security Included;  1 x GPS tracker with built-in magnets & Long-Life Battery (see carton for model)  1 x USB charger cable  Free APP for your mobile phone - Android or IOS.
  • Page 2 MONGOOSE GPS TRACKERS Thank you for choosing Mongoose as your GPS tracking provider. The LT604 is a battery operated 4G GPS/AGPS dual positioning trackers that are designed to transmit its location at intervals of your choice. They also contain LBS (land based system) to give approximate location based on mobile phone cell sites if, for some reason there is no satellite GPS reception.

  • Page 3: Sim Card Installation

    GETTING YOUR TRACKER READY Fully charge the battery – see page 14 Insert the SIM card Turn the tracker on (on/off switch is next to SIM slot) Observe the LED’s – see page 14 Download the mobile APP and complete the ‘Activation Wizard’ on page 4. SIM CARD INSTALLATION Switch Lift the rubber cover...

  • Page 4: The Activation Wizard

    DOWNLOAD THE MOBILE APP Go to App Store for Apple IOS Go to Play Store for Android 4G MONGOOSE GPS Search for :- Note: For this tracker to function correctly and accurately, ensure your mobile phone GPS location services are switched on to allow phone and APP tracking.

  • Page 5: The Logon Screen

     Tick the ‘remember me’ box for future logons If you have more than one tracker, to view them with one logon, contact Mongoose to apply for your GPS ‘account’. ‘REAL TIME’ - LIVE TRACKING After logging on, the ‘real time’ map screen opens and shows the Current or last viewed vehicles’...

  • Page 6: The Main Menu

    ACCOUNT MAIN MENU ‘Account’ User Menu If you have more than one tracker and you wish to view them on your mobile phone, contact Mongoose so we can apply for your own GPS ‘account’. Main menu Same as above with an additional button for your account details.

  • Page 7: History Playback

    TRACKER INFO’ - Please complete all details  Edit the device name to one of your choice (This name shows on the map and other screens)  Enter the vehicles registration number  Enter the phone number of the trackers SIM card ...

  • Page 8: Logon Password

    Go to: www.mongoosegps.com  First select ‘IMEI’ (ID number) for single tracker users  ‘USER NAME’ if you have a Mongoose GPS account for multiple trackers  Logon to the website with the same details as the mobile APP. LOGON PASSWORD Your ‘logon’...
  • Page 9 GEO-FENCE (A restricted area of travel) A geo-fence is an invisible boundary that has a minimum radius of 100m to a maximum of 5000m. The area is easily set from within the APP. If the tracker moves in or out of the geofenced area it will send an alert to the paired mobile phones (master + authorised numbers).
  • Page 10 MOBILE APP COMMANDS These are commands that can be sent from the mobile APP. These commands are the most frequently used. See page 11 for additional commands normally used by advanced users. This screen also shows the current status and previous settings.
  • Page 11 ADVANCED USER SMS (TEXT) COMMANDS The following text commands provide greater control of how the tracker operates and reacts to certain circumstances. Send the commands direct from your mobile phone to the tracker. is the default password – we advise this is changed – see previous page commands. 123456 Once you have changed your password, replace 123456 with your password in commands.
  • Page 12 COMMANDS EXPLAINED VIBRATION ALERT This is to control alerts for the vibration sensor. Sensitivity is adjustable. Example: The vibration sensor may detect movement of say a trailer whilst someone is attempting to attach it to a vehicle. If set to ON, you will receive a text alert. We suggest simulating this action to find the best location for the tracker.

  • Page 13: Low Battery Alert

    ONBOARD LOCATION MEMORY – (default ON) The tracker has an onboard location memory function and is used where there is no mobile coverage. Maximum capacity is 1,000 locations. If you drive from a good reception area into one with no reception, the tracker will attempt to record its locations.
  • Page 14  This GPS tracking device uses the 2G-3G-4G mobile networks for sending data and texts.  Mongoose is not responsible/liable if the mobile network becomes unavailable.  The purchase of this product provides free access to a mobile APP and website.
  • Page 15 OTHER MONGOOSE GPS TRACKER MODELS VT904 – 4G VEHICLE GPS TRACKER The Mongoose VT904 is a hard wired, feature packed 4G GPS tracker. Suitable for motorcycles, jet skis, cars, vans, Utes, trucks, campervans – in fact any vehicle with 12volts or 24volts.
