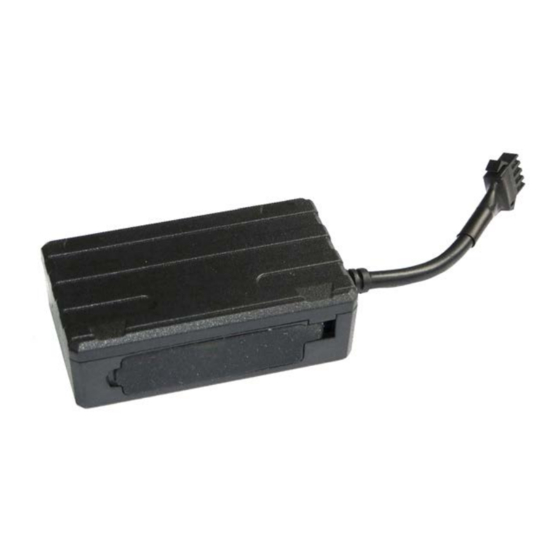

GPS VEHICLE TRACKER
USER MANUAL & INSTALLATION GUIDE
Included;
• 1 x GPS tracker 12v~24v
• 1 x wiring loom
• 1 x engine disable relay & loom 12v
• Free to download mobile APP ( Android and IOS)
• Free access to an international 24/7 website
This product requires a 3G mobile SIM card (not included)
4G or DATA only SIM card not compatible
Mongoose Australia PTY Limited
Mongoose (New Zealand) Limited
PT890
Model
www.mongoose.com.au
www.mongoose.co.nz
IMPORTANT
Record your IMEI number here
(Shown on the tracker label)
Advertisement
Table of Contents
Related Manuals for Mongoose PT890
Summary of Contents for Mongoose PT890
- Page 1 • Free access to an international 24/7 website This product requires a 3G mobile SIM card (not included) 4G or DATA only SIM card not compatible IMPORTANT Record your IMEI number here (Shown on the tracker label) Mongoose Australia PTY Limited www.mongoose.com.au Mongoose (New Zealand) Limited www.mongoose.co.nz...
- Page 2 GSM network for your area as GSM coverage and performance with Pt890 may vary based on Network coverage With the tracker installed and the SIM card inserted, just send these 2 text messages to program the tracker.
- Page 3 Username (id printed on the tracker & carton) (your choice –call Mongoose to set-up) Password = 123456 Password (your choice – call Mongoose to set-up) Link to the website www.zg666gps.com Go to:- Save the page in your computers favourites. The international website will open with language options.
- Page 4 THE MOBILE ‘APN’ NUMBER If you have followed the previous pages, the tracker should now be reporting locations. Open and logon to the mobile APP. If there is a message at the top of the screen saying ‘not enabled’, this means that the website has not yet received any data/information from the tracker.
-
Page 5: Mobile App
Reports can be saved and printed. Multiple tracker users: If you have more than one tracker, contact Mongoose to request a GPS account which has your own username and password to login by. This allows you to monitor and track all devices either all at the same time or individually. There is no charge for this service. - Page 6 TEXT (SMS) LOCATION REQUEST If you have difficulty logging on to the APP or website or are using a mobile phone without the APP, you can find a trackers location by simply texting the tracker directly:- Send:- You will receive a text reply. Tap the reply to load a preview - tap again to see the phones’...
-
Page 7: Controllable Features
CONTROLLABLE FEATURES The tracker can be controlled by either text messages from your mobile phone, see chart at rear of this manual, or from the mobile APP’s ‘Commands’. FREQUENCY OF REPORTING – default 30 seconds Set how often the tracker reports when moving or stationary with the engine running. Typically, 30 seconds is used when moving as this gives a good map plot when history is viewed. - Page 8 GEO-FENCE A geo-fence is an area with an invisible boundary. This boundary can have a minimum radius of 100m to a maximum of 999km. 200m is the recommended minimum to avoid false alerts. The area is easily set from the APP or website. If the tracker moves outside this area, and the tracker is armed, it will send an alert to the paired mobile phone.
-
Page 9: Vibration Alarm
The default password is 123456. This may be changed to any 6~8 digit number. Must be digits (numerals). Note: If changing the password, please make careful note of the new number. Mongoose can re-set it back to default if the new number is forgotten. - Page 10 APP ICONS ‘Real time’ – shows current or last reported position ‘Historical’ – graphically shows the route taken over different time periods ‘Geofence’ – allows you to set defined areas ‘Command’ -- sets tracker parameters & commands ‘Device info’ - Details about the tracker, SIM number etc ‘Messages’...
- Page 11 Instruction Text to send to tracker Reply Auto arm - on auto1 Auto arm – standby 10 mins - ON auto0 Auto arm – standby 10 mins - OFF Immobilise Cut oil ok ! (kill engine) Resume oil ok ! (allow engine starting) Alert types for vibration vib0,3...
-
Page 12: Sim Card Installation
SIM CARD INSTALLATION SIM CARD Make sure that the mobile 3G SIM card is operational (activated with its supplier) by testing in a mobile phone. It cannot be activated when inside the tracker. • Do not insert SIM card with power cable connected – you can damage the SIM card. •... -
Page 13: Wiring Installation
The APP and website are owned & operated by a 3 party. Purchasers of Mongoose GPS trackers have free usage under current access terms. Mongoose is not liable or responsible if access terms change or the facilities become unavailable. Use of this product or features may infringe the rights or invade the privacy of others. -
Page 14: Main Wiring
Immobiliser wiring – 12v relay supplied Use an alternative relay where voltages are greater than 12v Mongoose only recommends the immobilisation of the starter circuit only to prevent engine starting as this is the safest method. The stopping of an engine via the ignition or fuel pump whilst being driven... - Page 15 However, it can be connected to the ignition input yellow wire of the tracker so that the user can get an alert text message if the car alarm activates. For (+) positive sirens (Mongoose) No relay required, connect siren trigger wire P T 8 9 0 orange wire of tracker.
- Page 16 Mongoose Australia www.mongoose.com.au Email: sales@mongoose.com.au Ph: (02) 9482 4444 Mongoose New Zealand www.mongoose.co.nz Email: sales@mongoose.co.nz Ph: (09) 443 3128...
