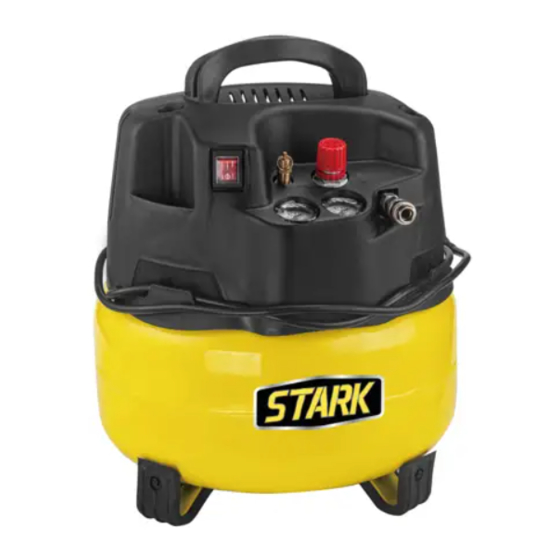

6 GAL OIL FREE AIR COMPRESSOR
ITEM# 65168
OWNER'S MANUAL AND SAFETY INSTRUCTIONS
SAVE THIS MANUAL. KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATION, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT'S
SERIAL NUMBER ON THE BACK OF THE MANUAL, OR THE MONTH AND VEAR OF PURCHASE IF
PRODUCT HAS NO SERIAL NUMBER
FOR QUESTIONS, PLEASE CALL CUSTOMER SERVICE: 909.628.4900
Advertisement
Table of Contents
Related Manuals for Stark 65168
Summary of Contents for Stark 65168
- Page 1 6 GAL OIL FREE AIR COMPRESSOR ITEM# 65168 OWNER'S MANUAL AND SAFETY INSTRUCTIONS SAVE THIS MANUAL. KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY, OPERATION, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT'S SERIAL NUMBER ON THE BACK OF THE MANUAL, OR THE MONTH AND VEAR OF PURCHASE IF PRODUCT HAS NO SERIAL NUMBER FOR QUESTIONS, PLEASE CALL CUSTOMER SERVICE: 909.628.4900...
-
Page 2: Product Specifications
PRODUCT SPECIFICATIONS Running Horsepower：1.5HP Input ：120 V, 60 Hz, AC only, 11.5 Amps Air Tank Capacity ：6 gal. Air Pressure ：150 psi max. Air Delivery ：2.2 SCFM @ 90PSI Lubrication ：Oil-Free WARNING: READ THIS MANUAL FOR ALL SAFETY INSTRUCTIONS BEFORE USING THIS PRODUCT IMPORTANT SAFETY PRECAUTIONS WARNING Improper operation or maintenance of this product could result in serious injury and/or property... -
Page 3: Parts And Features
PARTS & FEATURES Drain Valve: Used to drain condensation from the air tank. Located at bottom of tank. Motor Thermal Overload: The motor has an automatic thermal overload protector. If the motor overheats, this protector will shut off the motor. The motor must be allowed 30 minutes to cool before restarting. Quick Connect: Offers a quick release feature for attaching and removing the air hose. -
Page 4: Operation Procedures
OPERATION PROCEDURES Daily Start-Up Procedures 1. Set the On/Off switch to the off position. 2. Check the air compressor visually for any damage or obstruction. 3. Close the drain valve. 4. Plug the power cord into the proper receptacle. 5. Turn the On/Off switch to the On position and the compressor should start and build air pressure in the tank to cut-out pressure and then shut off automatically. -
Page 5: Troubleshooting Guide
STORAGE For storing the air compressor, be sure to do the following: 1. Turn the unit off and unplug the power cord from the receptacle. 2. Remove all air hoses, accessories, and air tools from the air compressor. 3. Perform the daily maintenance schedule. 4. -
Page 7: Specification
PARTS LIST FOR 6GAL SPECIFICATION SPECIFICATION QUICK CONNECT 90° SCREW M6X35 SPRING WASHER M6 PPRESSURE SWITCH NUT M6 REGULATOR CYLINDER HEAD SAFETY VALVE EXHAUST ELBOW FIXTURE CLAB FOR REGULATOR GASKET OF CYLINDER HEAD SCREW ST5X18 VALVE PLATE PRESSURE TUBE VALVE REED COMPRESSION NUT G3/8 ALUMINUM GASKET BRASS COMPRESSION... -
Page 8: Please Read The Following Carefully
The material in this manual is for informational purposes only. The product(s) it describes are subject to change without prior notice, due to the manufacturer's continuous development program. XtremePowerUS makes no representations or warranties with respect to this manual or with respect to the products described herein. XtremePowerUS shall not be liable for any damages, losses, costs or expenses, direct, indirect or incidental, consequential or special, arising out of, or related to the use of this material or the products described herein.
