10 GALLON AIR COMPRESSOR 3.5HP 125PSI
ITEM: 65151
OWNER'S MANUAL AND SAFETY INSTRUCTIONS
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT'S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 4900 MON-FRI 9AM TO 3PM PST
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stark 65151
Summary of Contents for Stark 65151
- Page 1 10 GALLON AIR COMPRESSOR 3.5HP 125PSI ITEM: 65151 OWNER’S MANUAL AND SAFETY INSTRUCTIONS SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY, OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION GENERAL SAFETY WARNINGS Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. SAFETY The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. - Page 3 IMPORTANT SAFETY INFORMATION DO NOT use the compressor if the switch does not turn it on and off. Any compressor that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the compressor.
- Page 4 Industrial applications must follow OSHA guidelines. Maintain labels and nameplates on the compressor. These carry important safety information. If unreadable or missing, contact Stark Tools for a replacement. Operate unit on level surface. Check oil level daily and fill to marked level if needed.
-
Page 5: Brief Description
IMPORTANT SAFETY INFORMATION Check with a qualified electrician or service personnel if the grounding instructions are not completely understood, or if in doubt as to whether the compressor is properly grounded. Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles that accept the compressor’s plug. -
Page 6: Features And Functions
FEATURES AND FUNCTIONS MAIN COMPRESSOR OUTPUT PRESSURE COVER GAUGE OUTLET AIR TANK TANK VALVE PRESSURE GAUGE REGULATOR ONE-WAY DISCHARGE VALVE VALVE PIPE WHEEL DRAIN COCK FEATURES 3.5HP Made with Durable Cylinder 10 Gal Long Life with Oil-lubricated motor Delivers 7.2 CFM @ 40 PSI 3.5 CFM at 90 PSI Maximum Pressure: 125 PSI Solid Moving Wheels... -
Page 7: Checking The Oil
START-UP NOTE: At the beginning of the day’s first use of the Air Compressor, check for air leaks by applying soapy water to connections while the Air Compressor is pumping and after pressure cut out. Look for air bubbles. If air bubbles are present at connections, tighten connections. Do not use the Air Compressor unless all connections are air tight, the extra air leaking out will cause the compressor to operate too often, increasing wear on the compressor. -
Page 8: Emergency Depressurization
OPERATION AND MAINTENANCE COLD WEATHER OPERATION Start compressor in heated area if outdoor temperatures drop below 32° F. If this is not practical, drain out the old pump oil and use SAE 10W Non-detergent Air Compressor Oil (sold separately) in the pump crankcase instead whenever the compressor’s temperature will fall below 40°. -
Page 9: Air Filter Maintenance
OPERATION AND MAINTENANCE OIL MAINTENANCE Check the oil periodically for clarity. Replace oil if it appears milky or if debris is present, or every 6 months, or 100 operation hours, whichever comes first. Replace the oil more frequently if compressor is used in harsh environments such as high heat or high humidity. -
Page 10: Troubleshooting
TROUBLESHOOTING WARNING: Follow all safety precautions whenever diagnosing or servicing the compressor. Disconnect the power supply before service. -
Page 11: Parts List
PARTS LIST LIST OF GOODS... -
Page 12: Parts Diagram
PARTS DIAGRAM... -
Page 13: Please Read The Following Carefully
PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
Need help?
Do you have a question about the 65151 and is the answer not in the manual?
Questions and answers
I bought a brand new stark air compressor months ago . I was going to return because it leeks out of the breather cap but I didn’t do it in time. I would like to know if I did something wrong because since I can’t return it I would like to use it . Ant help would be greatly appreciated . Thank you . David Baranowski
The common causes of a leak from the breather cap on a Stark air compressor model 65151 may include overfilled oil, use of incorrect oil type, or internal damage such as worn piston rings causing blow-by.
This answer is automatically generated
Where does it go ???

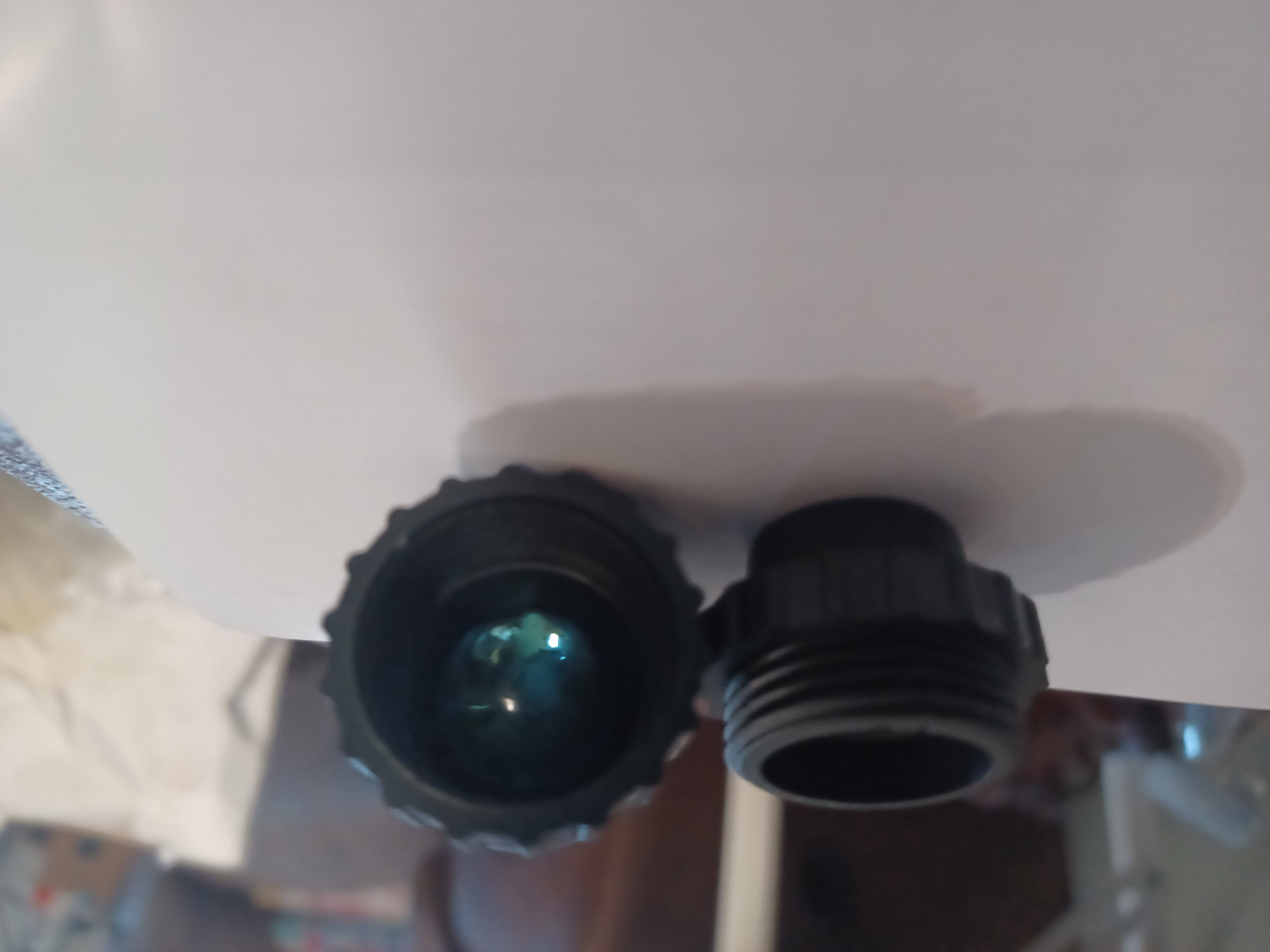

Where does this plastic connection goes it has a marble in it .

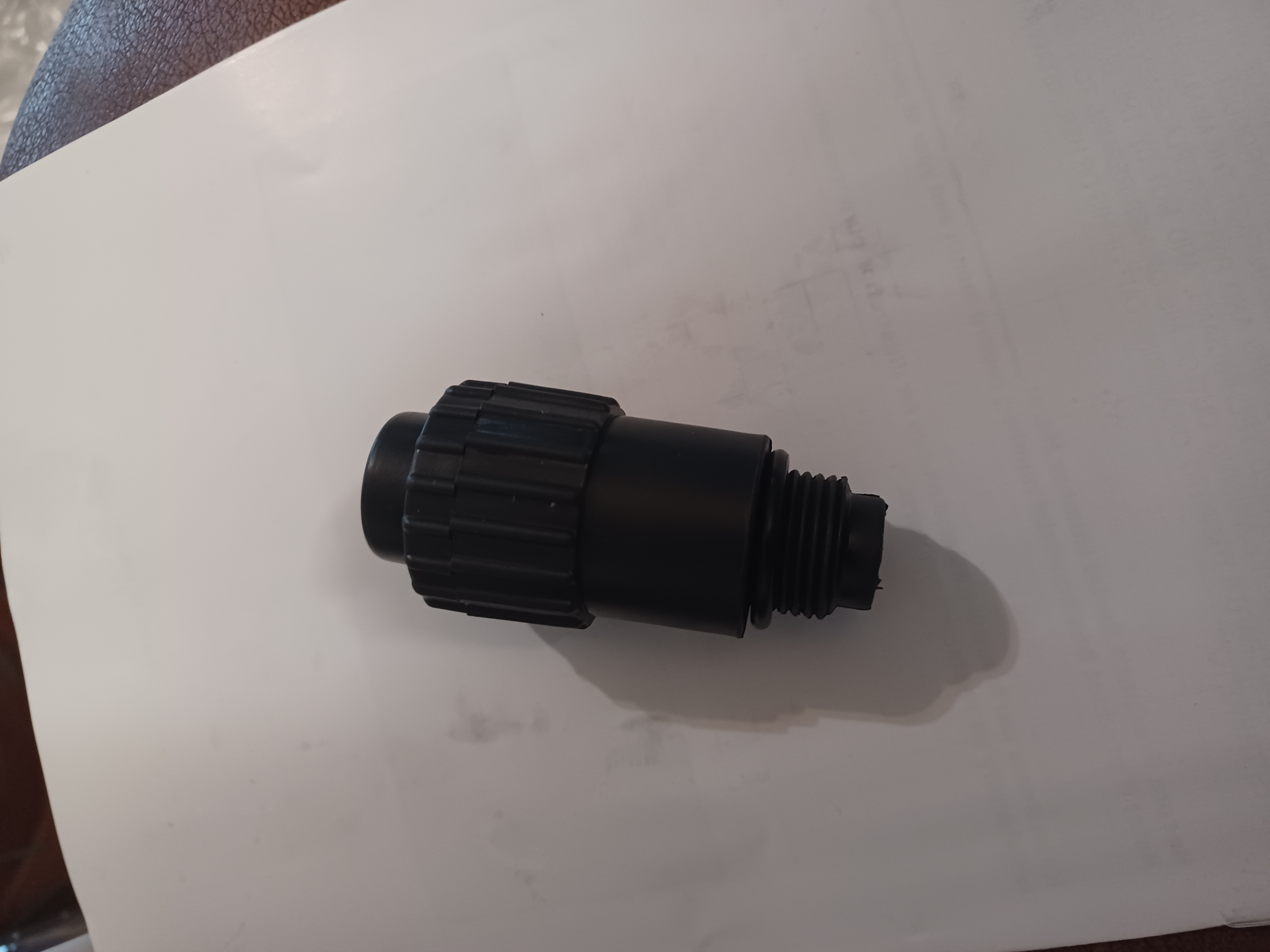

Stark 65151 just arrived. got everything on it but I have a little black plastic piece with treads and it appears to have a ball bearing in it. Where does it go.
