DMC DMC95 Quick Start Manual

DMC95 CONTACT RETENTION
TEST TOOL KIT
DMC95 Kit for
Contact Retention Testing
Connector Series Serviced
MIL-C-5015
MIL-C-24308
MIL-C-26482
MIL-C-26500
MIL-C-28748
Proprietary and other military connector series
may be serviced by DMC retention testers.
Please consult DMC for verification
NOTE: Retention test tools are to be used as a simple indicator to verify
contact locking. Retention testing to MIL-STD-1344 (method 2007.1)
will require different test equipment. For additional information, please
consult DMC.
DMC95
DANIELS MANUFACTURING CORP., 526 THORPE ROAD, ORLANDO, FL 32824, USA
PHONE (407) 855-6161 • FAX (407) 855-6884 • www.dmctools.com • E-MAIL: dmc@dmctools.com
COPYRIGHT © 2012 Daniels Manufacturing Corp. ALL RIGHTS RESERVED
The quality assurance test most often overlooked is contact
retention (the proper seating of contacts within the connector).
This important test can now be performed simply and in a matter
of seconds with the DMC95 Retention Test Tool Kit.

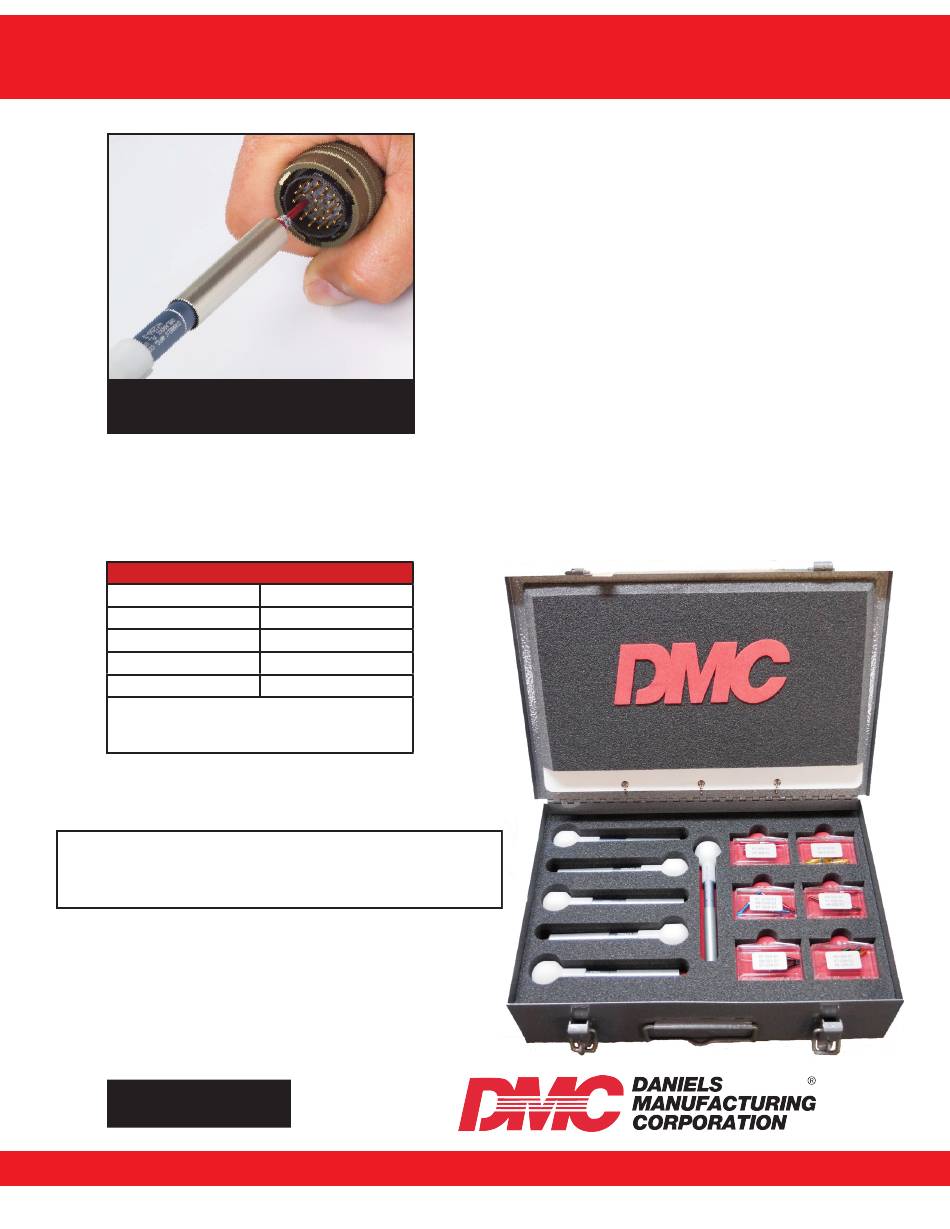

Tool kit supplied in 1 lockable steel case and includes: 6 Tool
Bodies capable of testing from 1.5 to 40 pounds; 8 Pin Tips and
8 Socket tips sizes 8, 12, 16, 20, 22, 23, 24, & 26; Name Plate;
Foam Pads/Inserts; Contents Charts; Instruction Charts; and
Tool Selection Charts.
These tools check the retention of pins and sockets in electrical
connectors by indicating when propper pressure has been
applied. Each tool body is set for a different poundage range
(see Chart A on back of this page). The tester tips are color
coded for specific sizes (AWG 8, 12, 16, 20, 22, 23, 24, & 26)
and designated for pins or sockets (see Chart B). Use pin end
tipes to test sockets and socket end tips to test pins. All tips are
made of aluminum and are replaceable.
A nylon hand protector is provided with each tool body. The tools
are adjustable and can be preset at the factory to your request.
MIL-C-38999
MIL-C-81511
MIL-C-81659
MIL-C-81703
MIL-C-83723
Rev A. 08/12 DMC95-SL
