DMC SCTP Series Quick Start Manual

SCTP SERIES SCTP SERIES SCTP SERIES
SCTP SERIES SCTP SERIES
PNEUMATIC SAFE-T-CABLE PNEUMATIC SAFE-T-CABLE PNEUMATIC SAFE-T-CABLE
PNEUMATIC SAFE-T-CABLE PNEUMATIC SAFE-T-CABLE
SEE PAGE 11 FOR IMPORTANT INFORMATION CONCERNING LIMITED
INTRODUCTION
The Daniels SCTP Series Pneumatic Safe-T-Cable
tension/cut the cable in accordance with the performance requirements of SAE specification AS4536*.
The application tool installs Safe-T-Cable
AS3511*.
The following steps are important:
1. Proper tool setting (section 1.0)
2. Proper cable installation (section 2.0)
3. Proper loading and use of the application tool (section 3.0)
4. Verification of proper application (section 4.0)
* SAE publications are available from:
SAE, International
400 Commonwealth Drive
Warrendale, PA 15096-0001
1.0 TOOL MAINTENANCE AND VERIFICATION OF TOOL SETTINGS
1.1 Checking Indenter Settings with the Daniels SCT-TB1 Torque Verification Block
1.1.1. Indenter settings should be checked periodically and must be checked after the nose assembly has
been removed or changed.
1.1.2. Thread the cable into the left swivel and through the right swivel, holding the lever in the
home position as shown in figure 1. If the lever is not kept in the home position the results
may be adversely affected. Terminate the cable per section 3.0.
1.1.3. Apply approximately 2 lb force to the cable with your finger (or use the Daniels SCTD013 Retention
Tester) at the line marked "TEST AREA". If the cable touches either the side or bottom surface of
the test area, remove the cable from the block. Properly terminate another cable, holding the tool
perpendicular to the cable and making certain that there is no more than 1 1/2 inch of slack.
LEFT SWIVEL
DANIELS MANUFACTURING CORP. 526 THORPE ROAD, ORLANDO, FL 32824, USA
PHONE (407) 855-6161 • FAX (407) 855-6884 • w ww.DMCTools.com • E-MAIL: DMC@DMCTools.com
COPYRIGHT © 2010 Daniels Manufacturing Corp ALL RIGHTS RESERVED
WARRANTY, AND LIMITATION OF LIABILITY
®
kits identified in SAE specifications AS3509*, AS3510* and
®
TOOL TOOL TOOL
TOOL TOOL
®
application tool is designed to crimp ferrules, and
MOUNTING HOLES
LEVER

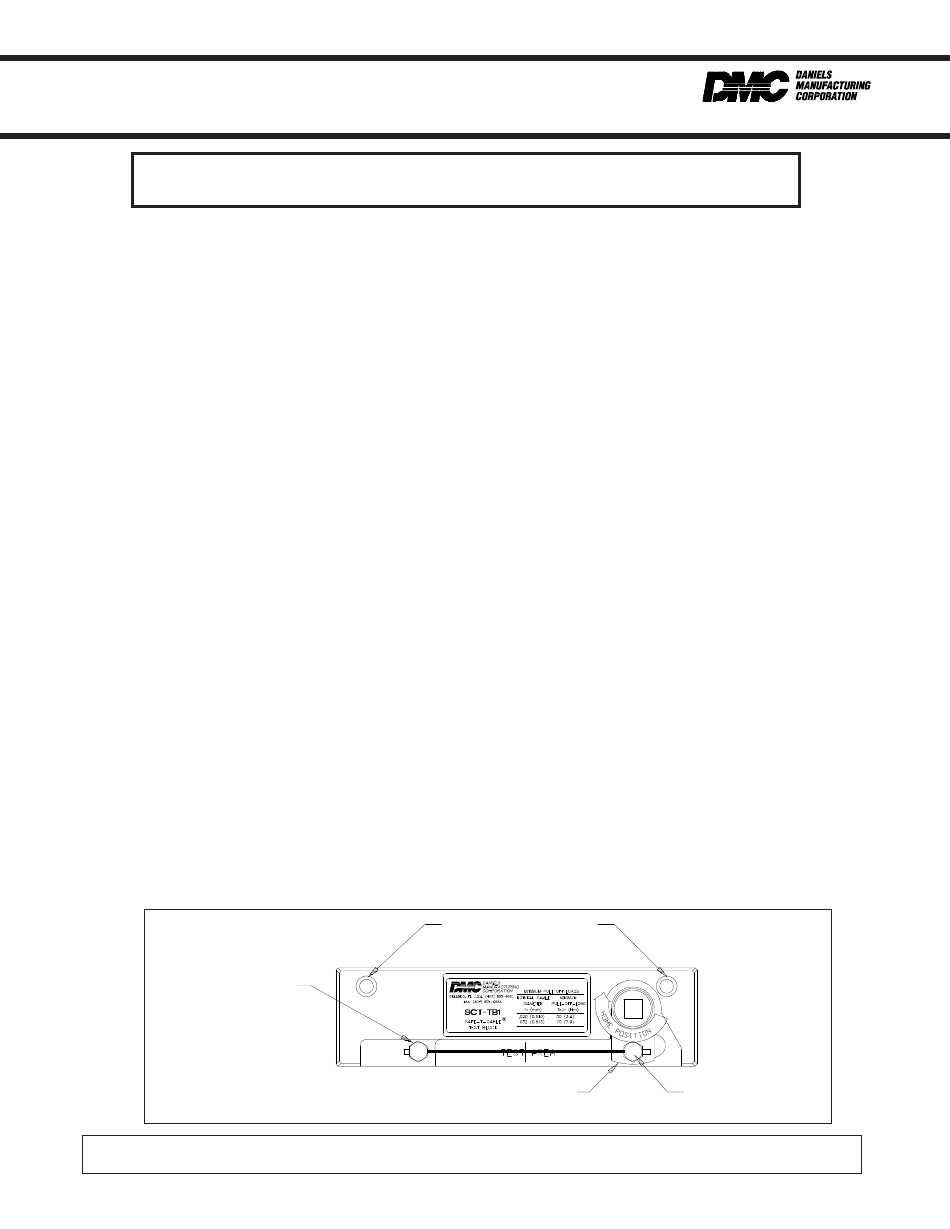

FIGURE 1
1
DATASHEET
RIGHT SWIVEL
12/13 REV. G FILE #: SCTP-DS
