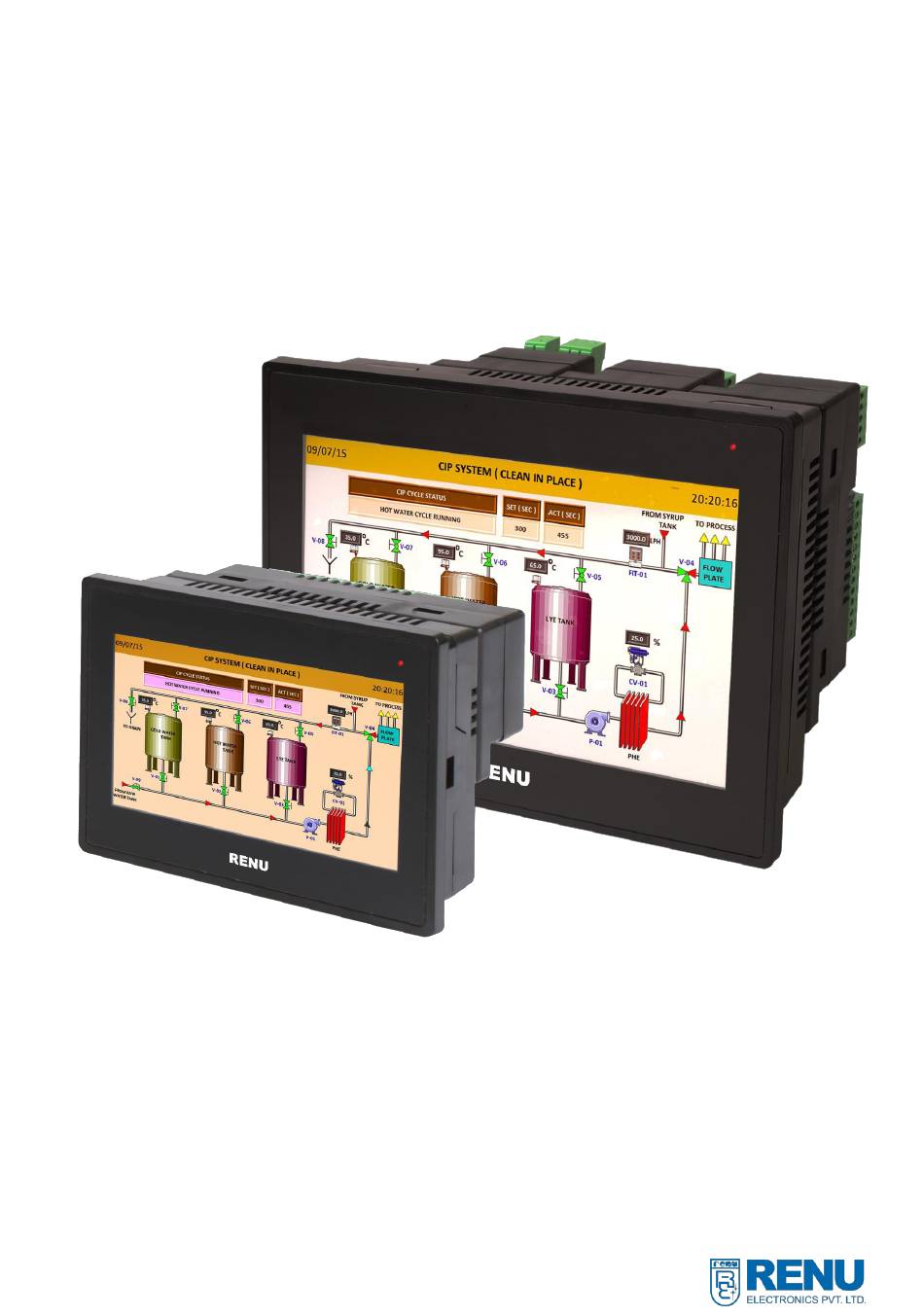

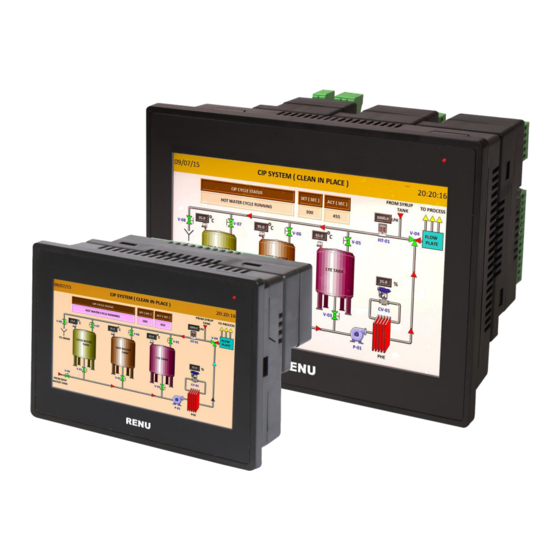

- Page 1 User Manual ® FlexiPanels Basic FP2 series HMI with I/Os...
-
Page 2: Table Of Contents
RS232 / RS485 P ............................11 ................................ 12 ABLE ..............................14 THERNET USB D ..............................15 EVICE USB H ..............................15 ......................16 UPPORTED LUGGABLE XPANSION ODULES ............................20 UPPORTED ROTOCOLS ACCESSORIES ..............................21 © Renu Electronics Pvt. Ltd. Page 2 of 24... - Page 3 FlexiPanels Basic HMI ) ......................... 21 ROGRAMMING ABLE OWNLOAD ............................21 OMMUNICATION ABLE ............................. 22 EFAULT RODUCT ETTING ....................... 22 NVIRONMENTAL PECIFICATIONS AND PPROVALS REVISION HISTORY ............................. 23 NOTES ................................24 © Renu Electronics Pvt. Ltd. Page 3 of 24...
-
Page 4: Introduction
This user manual gives detailed information regarding the hardware specifications, operating conditions, installation, mounting, and wiring. All the information published in this manual is produced and governed by RENU Electronics Pvt. Ltd. and is protected by Indian Copyright Act. Before you start ... -
Page 5: Safety Precautions
This section of the manual provides information that is critical regarding safety and therefore the user is advised to go through the information in detail before installing the product. Users may contact RENU Electronics technical support team at support@renuelectronics.com for any specific question(s) related to safety. -
Page 6: Product Overview
Before making a panel cutout, disconnect all electrical power from the panel. Make sure that area surrounding the panel cutout is clear. Make sure that metal cutting does not enter any component already installed in the panel. © Renu Electronics Pvt. Ltd. Page 6 of 24... -
Page 7: Product Dimensions
FlexiPanels Basic HMI Product Dimensions This section of the manual provides dimensional details of FP2 series HMI with I/Os products. All the dimensions shown below are measured in mm. FP2043-E FP2070-E © Renu Electronics Pvt. Ltd. Page 7 of 24... -
Page 8: Minimum Clearances
Apply 24VDC power to the terminal Power Rating Unit Voltage Current Wattage FP2043T-E 24VDC 130mA 3.12W FP2043TN-E 24VDC 150mA 3.6W FP2070T-E 24VDC 200mA 4.8W FP2070TN-E 24VDC 230mA 5.52W © Renu Electronics Pvt. Ltd. Page 8 of 24... -
Page 9: Grounding
Modules [ # Note: FP2043-E support one DB9 port that supports RS232 and RS485 levels on different pins. “Y” type cable can be used for separate RS232 and RS485 levels simultaneously.] © Renu Electronics Pvt. Ltd. Page 9 of 24... -
Page 10: Display Specifications
CPU: 32-bit RISC Processor RAM: 16MB User Application Flash 16MB Ladder Memory Alarm Memory 1350 Alarms Retentive Memory 8000Words Keep Memory 1000Words Data Log Power supply: 24VDC(+20%, -15%) RTC: Built-in, Date & Time function © Renu Electronics Pvt. Ltd. Page 10 of 24... -
Page 11: Communication Interfaces
Pin number Signal TX+(RS485) TXD(RS232) RXD(RS232) RX+(RS485) TX-(RS485) RX-(RS485) [Note: Special “Y” cable can be provided, if both the ports are to be used simultaneously.] [REPL Part# EC-Y-FP] © Renu Electronics Pvt. Ltd. Page 11 of 24... -
Page 12: Y Type Cable
The 4.3” models have only one DB9 port that supports RS232 and RS485 signal levels on different pins. If the user wants to connect different devices, on RS232 and RS485 levels, simultaneously with 4.3” HMI, then he must use ‘Y’ type cable. © Renu Electronics Pvt. Ltd. Page 12 of 24... - Page 13 FP2070 series HMI with I/Os has one terminal block port (COM1) and one DB9 female port (COM2). Both com ports support RS232 / RS485 signal levels. Pin number Signal Pin number Signal TX+(RS485) TXD(RS232) RXD(RS232) RX+(RS485) TX-(RS485) RX-(RS485) © Renu Electronics Pvt. Ltd. Page 13 of 24...
-
Page 14: Ethernet Port
Basic HMI Ethernet Port FP2 with I/Os series support Ethernet port as an ordering option. It’s having standard shielded RJ45 female jack with built-in speed and indication LED’s. Pin number Signal © Renu Electronics Pvt. Ltd. Page 14 of 24... -
Page 15: Usb Device Port
The connector used: Standard USB Type a Female connector. Pin number Signal Currently USB Host can be used for Upload and Download of Application/ Firmware only. Upload and Download of Data Logging or Recipe over USB is not supported. © Renu Electronics Pvt. Ltd. Page 15 of 24... -
Page 16: Supported Pluggable Expansion Modules
® FlexiPanels Basic HMI Supported Pluggable Expansion Modules Model FPEM-1616P FPEM-1614RP FPEM-1212P-A0200L FPEM-1212RP-A0200L FPEM-1210P-A0201L FPEM-1210RP-A0201L FPEM-0808P-A0401U FPEM-0808RP-A0401U FPEM-0404P-A0402U FPEM-0806P-A0402U © Renu Electronics Pvt. Ltd. Page 16 of 24... - Page 17 0°C to 50°C (While using FPEM Modules with FP2 Base models) Temperature Storage -20°C to 85°C Temperature Humidity 10 to 95% non-condensing Approvals CE, UL Class I Div 2 Dimensions 48W x 108H x 41D (mm) © Renu Electronics Pvt. Ltd. Page 17 of 24...
- Page 18 0°C to 50°C (While using FPEM Modules with FP2 Base models) Temperature Storage -20°C to 85°C Temperature Humidity 10 to 95% non-condensing Approvals CE, UL Class I Div 2 Dimensions 48W x 108H x 41D (mm) © Renu Electronics Pvt. Ltd. Page 18 of 24...
- Page 19 0°C to 50°C (While using FPEM Modules with FP2 Base models) Temperature Storage -20°C to 85°C Temperature Humidity 10 to 95% non-condensing Approvals CE, UL Class I Div 2 Dimensions 48W x 108H x 41D (mm) © Renu Electronics Pvt. Ltd. Page 19 of 24...
-
Page 20: Supported Protocols
Tri PLC Mitsubishi FX AB PLC EPIC PCCC Mitsubishi Q Series PLCs (Serial) Logix 5000 PLCs Modbus ASCII (Unit as Master) Universal Ethernet Driver(ASCII) AB PLCs Modbus RTU (Unit as Master) © Renu Electronics Pvt. Ltd. Page 20 of 24... -
Page 21: Accessories
Micro USB Part number: PC-USBAB-00-Micro [Note: PC-USBAB-00: 2M cable, PC-USBAB-05: 5M cable, PC-USBAB-10: 10M cable] Communication Cable RS-232 Part number: IBM0909-1-00 [Note: IBM0909-1-00: 2M cable, IBM0909-1-05: 5M cable, IBM0909-1-10: 10M cable] © Renu Electronics Pvt. Ltd. Page 21 of 24... -
Page 22: Default Product Setting
25g, 11ms, 6 shocks per axis, total 18 shocks (X, Y, Z) Vibration 5 to 150Hz, 3G, peak (X, Y, Z) Protection IP66 for front panel mounting Yes (Class I Division 2) RoHS © Renu Electronics Pvt. Ltd. Page 22 of 24... -
Page 23: Revision History
Updated Power Supply 08/09/2020 Updated Expansion Module Name 14/09/2020 1.2.1 Updated IP Rating 01/06/2021 RENU Electronics Pvt. Ltd® reserves the right to change or discontinue specifications and features without prior notice. © Renu Electronics Pvt. Ltd. Page 23 of 24... -
Page 24: Notes
® FlexiPanels Basic HMI NOTES © Renu Electronics Pvt. Ltd. Page 24 of 24...
