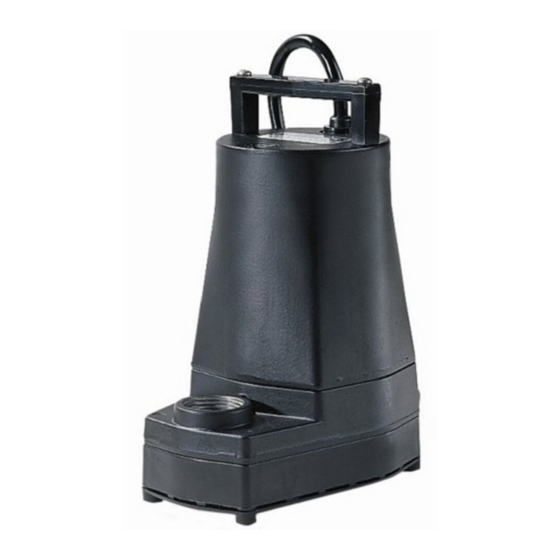

5-MSPR
'Bottom Pick-up' Submersible Pump
Submersible, water transfer or recirculation, water displays, air conditioning and machine tool
coolants
• 1/6 HP shaded pole motor
• Garden hose adapter and
• removable inlet screen
• Epoxy-coated cast aluminum housing
• Nylon volute
• Viton® shaft seal
• Stainless steel shaft
• IP 68
• Height: 220mm Width:150mm Length: 110mm
WGP-65
Capacity:
4070LPM @ 0.31m
Shut Off:
5.64m
Discharge:
1" BSPT
Intake:
Screened
Electrical:
230V, 50Hz, 3.0A, 250 Watts
MODEL:
505376
Note: By attaching a Little Giant
RS Switch, you can make this
pump Automatic
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Little Giant Bottom Pick-up 5-MSPR
Summary of Contents for Little Giant Bottom Pick-up 5-MSPR
- Page 1 • Height: 220mm Width:150mm Length: 110mm WGP-65 Capacity: 4070LPM @ 0.31m Shut Off: 5.64m Discharge: 1” BSPT Intake: Screened Electrical: 230V, 50Hz, 3.0A, 250 Watts Note: By attaching a Little Giant MODEL: 505376 RS Switch, you can make this pump Automatic...
- Page 2 This anode works on the same principle as the anode found in hot water heaters and boat motors. Contact your local distributor and ask for the model SA-1 by Little Giant.
