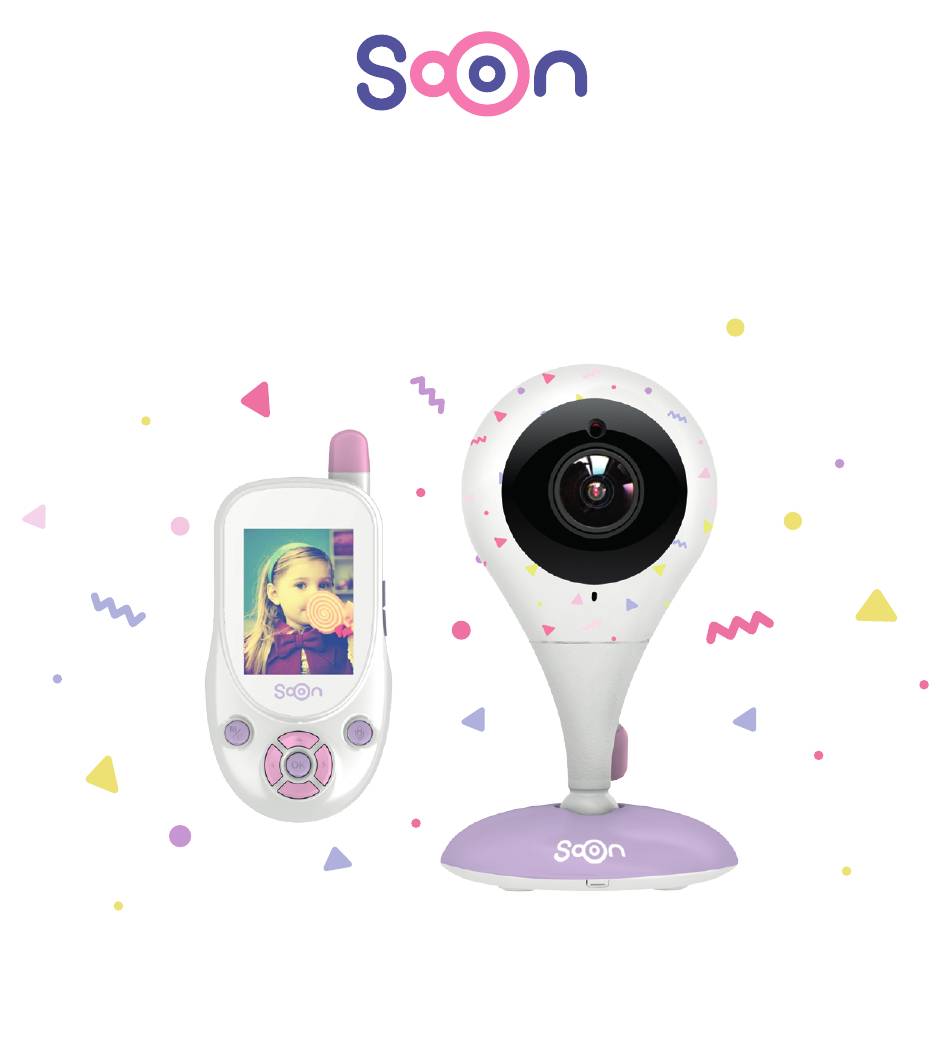

- Page 1 CARE SBM-010WP USER MANUAL Digital Baby Monitor 2.4" TFT LCD Display...
- Page 2 About this manual. We have made every effort to ensure that the contents of this ma manual are correct and up to date. However, there is no guarantee that new software versions will not contain changes that render so me parts of this manual obsolete. If the contents of this manual do not correspond to all your baby monitor, please contact our support service.
-
Page 3: Table Of Contents
Contents Safety instructions ................. 2 Appearance of the device .............. 3 Camera Transmitter ..............3 Handheld display ..............4 Button description ................5 Description of functions ..............6 Camera functions ..............6 Handheld display functions ............ 7 Camera ..................9 Alarm clock................10 Settings .................. -
Page 4: Safety Instructions
Safety instructions Please remember that the baby monitor does not replace the need for responsible adult supervision 2. This product should be placed in a location where the child will not come into contact with it, and there should be at least 1.5 to 2 meters distance between the smart baby monitor and the child to ensure that the child and this product have an appro- priate safety zone. -
Page 5: Appearance Of The Device
Appearance of the device Camera Transmitter 1. Camera. 9. Power connector. 2. Photosensitive 10. Power indicator. device. 11. Pairing button. 3. Infrared sensors 12. Temperature sensor. 13. Wall mounting hole. 4. Microphone port. 5. Base. 6. Stand 7. Speaker. 8. RX antenna. -
Page 6: Handheld Display
Handheld display 1. Power/Charging 8. Microphone hole. indicator. 9. Talkback button. 2. 2,4-inch display. 10. OK button. 3. Power/Menu 11. Up/Down/Left/Right button. button. 4. Handheld antenna. 12. Power connector. 5. Volume level 13. Speaker 14. Battery cover. indicator. Bracket for 6. -
Page 7: Button Description
Button description Power / Menu button: allows you to switch the unit on and off and use or exit the pop-up menu. OK button: confirms the selection in the menu. Long press to activate/ deactivate the lullaby. Pairing button: connects the handheld display and the camera to each other. Up button: moves up one menu item. -
Page 8: Description Of Functions
Description of functions Camera functions This unit is powered by 5 V 1 A DC. When the device is switched on, the blue LED lights up, indicating that the baby monitor is switched on and ready for use. Note: please use only the supplied power adapter. Night vision: the baby monitor is equipped with 9 infrared sensors that allow you to see a clear picture even in total darkness without disturbing your child in any way. -
Page 9: Handheld Display Functions
Handheld display functions The handheld display operates with a 3.7 V lithium battery a 5V\1A DC adapter. You can use the charging adapter when the lithium battery is empty (note: only use the supplied power adapter) To start the device, connect it to a power source, then press and hold the power button for a few seconds. - Page 10 Press the «power/menu» button to access the menu. This is what the settings menu looks like: 1. Camera 3. Alarm clock 2. Settings 4. System information Navigate through the menu using the direction buttons, press OK to select an item.
-
Page 11: Camera
Press the «power/menu» button to return to the home screen. Camera Select the camera icon and press the OK button once to start the pairing process; then press pairing button on the baby monitor itself. The camera will be paired as shown below. Wait a few seconds until the pairing is completed. -
Page 12: Alarm Clock
If this fails, you will see the message «Pair Failed». Please try the pairing pro - cedure again. Alarm clock You can enter an alarm ti me of up to 5 different al arms. Select the alarm of interest in the menu as shown on the right. -
Page 13: Settings
After setting the desired alarm time, press «OK» to confirm. Then press the «power/menu» button to return to the main menu. Settings Enter the settings menu. Here you see 6 submenus as shown in the picture on the right. Time and date Select time and date and press OK. -
Page 14: Selecting Temperature Measurement Units
Use the «up» and «down» buttons to change values. After setting the time and date, press OK to confirm. Then press the «power/menu» button to return to the main screen. Selecting temperature measurement units Select the temperature unit option and press OK. You will have two options (dis played in degrees Celsius or Fahrenheit), as shown at... -
Page 15: Light Source Frequency
Light source frequency Select the light source spe ed option and press the OK button. Two options (50 Hz and 60 Hz) will appear as shown in the picture on the right: Use the up and down arrow buttons to select, then press OK to confirm. -
Page 16: Sound Sensitivity Level
Use the «up» and «down» buttons to select, then press OK to confirm. The default setting is standard mode. Sound sensitivity level Select the voice sensitivity option and press the OK button. The three options are displayed: low, medi um and high sensitivity as shown at the picture on the right. -
Page 17: Lcd Backlight
device adapts to the surrounding noise and concentrates on the voice after a couple of seconds. LCD backlight This function only works in the main menu. Select the LCD backlight option and press OK button. You will have two settings available: LCD backlight brightness activity... -
Page 18: System Information
The LCD backlight save time also has 5 options available: (20 seconds, 40 seconds, 60 seconds, 80 seconds, 100 seconds). The default screen backlighting time is 60 seconds. System information Enter the system informa tion menu as shown in the illustration on right You can view the device ID, software version, hardware... -
Page 19: Mounting
Mounting Place the baby monitor at an appropriate height and carefully adjust the angle of the camera to have the best viewing angle for monitoring your child. You can place the baby monitor on the wall using the mounting hole and the special screw supplied. Baby monitor maintenance The baby monitor requires no special maintenance —... - Page 20 To reduce the risk of electric shock, do not open or repair the unit yourself. Store the device in a dry place. Do not use the baby monitor in an excessively humid environment: use in a humid environment may cause the unit to malfunction. The design and specifications of this product are subject Note: to change without notice.
-
Page 21: Disposal Of The Device
Disposal of the Device (enviroment protection) At the end of the product life cycle, you should not dis- pose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user’s guide and/or box indicates this. -
Page 22: Help
Help Display – Try recharging the battery pack. – Reset the Units. Unplug both the Units' electrical power, then plug them back in. – Is the Unit switched on? Press and hold the ON/OFF button on the Parent Unit for 3 seconds to switch it ON. –... - Page 23 Registration If the Baby Unit has lost its link with the Parent Unit – If the Baby Unit is too far away it may be going out of range, so move the Baby Unit closer to the Parent Unit. – Reset both the Parent Unit and Baby Unit by disconnecting them from the electrical power.
- Page 24 – Make sure that the Baby and Parent Units are not near other electrical equipment, such as a television, computer or cordless/ mobile telephone. Move the Baby Unit or Parent Unit 3 feet away from other electrical equipment. Noise interference on your device –...
-
Page 25: Warranty
Thank you for purchasing this SOON product. What Does this Warranty Cover? Subject to the exclusions contai- ned below, SOON warrants that product («Product») or certified accessory («Accessory») sold for use with this product that it manufactured to be free from defects in materials and workman- ship under normal consumer usage for the period outlined below. - Page 26 FOR A FULL UNDERSTANDING OF YOUR RIGHTS YOU SHOULD CONSULT THE LAWS OF YOUR COUNTRY, PROVINCE OR STATE. Who is covered? This Warranty extends only to the first consumer purchaser, and is not transferable. Warranty Period One (1) year from the date of the first purchase by the first pur- chaser-customer.
- Page 27 SOON, are excluded from coverage. Unauthorized Service or Modification. Defects or damages resul- ting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than SOON or its authorized service centers, are excluded from coverage.
-
Page 28: Technical Specifications
Technical Specifications Baby Monitor Frequency 2400 MHz–2483.5 MHz IR sensors: 9 units Operating temperature 5°C–40°C Power Adapter Input: 100-240V AC, 50/60Hz; Output: 5.0V DC, 1000mA Handheld Display Frequency 2400 MHz–2483.5 MHz 16.7M color 2,4” LCD TFT screen Power Adapter Input: 100-240V AC, 50/60Hz; Output: 5.0V DC, 1000mA Battery: Li-Pol 700 mAh Specifications are subject to change without notice. - Page 29 Manufacturer: Dongguan HDKing Smart Technology Co., LTD. Floor 2, Building C, Hechang Road No.8, Shatou Community, Changan Town, Dongguan, Guangdong, China. Fax: +86-0769- 81666975. Tel: +86-0769-81666972. Distributor in RF: OOO «Socinteh» 111250, Russia, Moscow, Krasnokazarmennaya str. 10, room 10. Importer: «Socinteh»...
