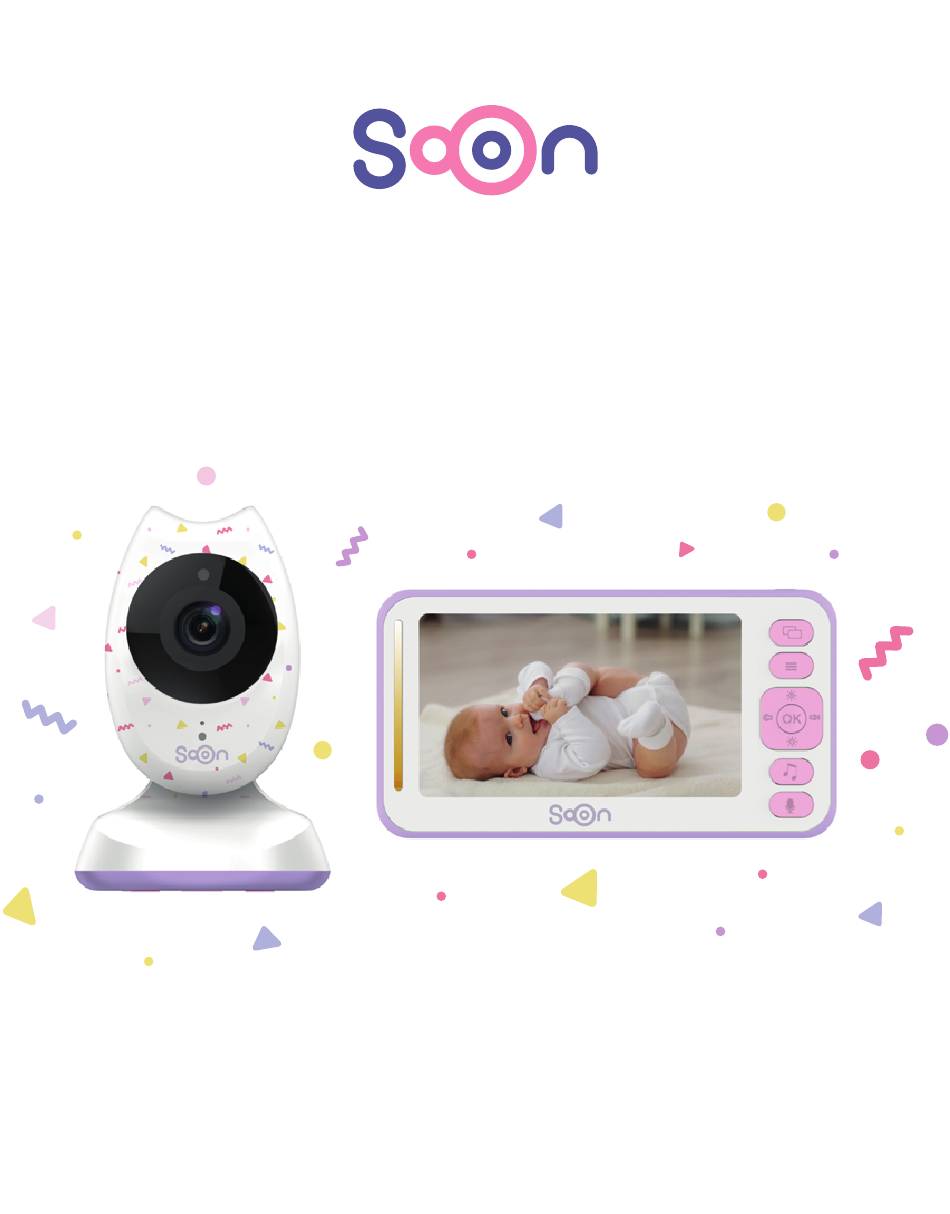

- Page 1 BASE SBM-020WP USER MANUAL Digital Baby Monitor 4.3" TFT LCD Display...
- Page 2 About this manual. We have made every effort to ensure that the contents of this manual are correct and as up-to-date as possible. Ho wever, there is no guarantee that new versions of the soft ware will not contain changes that render some parts of this manual obsolete.
-
Page 3: Table Of Contents
Contents Safety Notes ................2 Appearance of the device ............3 Camera Transmitter ............3 Portable display ..............4 Button description ..............5 Description of functions ............7 Camera functions ............7 Handheld display functions ..........9 Portable Display Status Icons .........10 Setting a reminder ........... -
Page 4: Safety Notes
Safety Notes Please remember that the baby monitor does not rep lace responsible adult supervision. This product should be placed in a location where the child will not come into contact with it, and the distance between the baby monitor and the child should be at le ast 1,5-2 metres to ensure that the child and this pro duct have a suitable safety zone. -
Page 5: Appearance Of The Device
Appearance of the device Camera Transmitter Camera Power indicator IR sensor IR emitters Microphone Stand Speaker 8. Antenna Power connector 10. Pairing button 11. Temperature sensor 12. Mounting connector... -
Page 6: Portable Display
Portable display Power connector 8. Quick music switch button Power indicator and 9. Talkback button 10. Reset button voice volume 11. Speaker indicator 12. Fixing Start button 13. Battery cover Camera switching 14. Antenna button 15. LCD screen Menu button OK button Up/Down/Left/Right buttons... -
Page 7: Button Description
Button description Power button: hold down to turn on / off the digital video baby monitor, press once to turn on / off the screen. OK button: confirms the selection in the menu. Pairing Button: Connects the remote handheld display and the camera to each other. Menu / Back button: —... - Page 8 Talkback button: From the home screen, press and hold this button to talk to your child. Camera switch button: changes the video source, locks the input signal from one camera or cycles between two cameras. Quick music switch button: Lets you instantly start or stop lullaby right from your home screen.
-
Page 9: Description Of Functions
Description of functions Camera functions This unit operates on 5V 1A DC power. When the device is turned on, the blue indicator light will illuminate, indicating that the baby monitor is on and ready for use. Note: please use only the supplied power adapter. Night vision: the baby monitor is equipped with 8 infrared sensors that will provide a clear picture even in total darkness, without disturbing the child. - Page 10 If the picture or sound is being interrupted, try moving the device to another location for the best connection.
-
Page 11: Handheld Display Functions
Handheld display functions The handheld display is powered by a 3.7 V lithium battery or a 5V\1A DC adapter. You can use the adapter for charging when the lithium battery is low. only use the supplied power adapter. Note: To start the device, connect it to a power source and then press and hold the power button for a few seconds. -
Page 12: Portable Display Status Icons
Portable Display Status Icons Signal strength indicator. Current camera icon. Activated camera icon. Next icon will displayed at this place in the «Circulation» mode: Icon of a playing lullaby. There are a total of 8 preset melodies, number 9 means playing them all on repeat. - Page 13 The air temperature in the baby’s room (Celsius or Fahrenheit available). Time. Charge indicator. Menu options The following options are available in the menu: Press the «Menu/Return» button to open a sub-menu.
-
Page 14: Setting A Reminder
The feeding reminder settings. Lullaby choice. Date and time settings. Temperature display settings. Camera settings. Voice activation sensitivity settings. Navigate in the menu with the «left» and «right» buttons, press «up» and «down» button to make selections; then press the «OK» button move to a submenu. Press the «menu/return»... -
Page 15: Music Selection
Lullaby selection You have several built-in lul labies that you can choose from. Select the music icon, press the «up» or «down» buttons to select, then press the OK key button to confirm (there are 8 available melodies and the cycling repeat mode). Time setting Select the clock icon and use the arrow keys to set the ac... -
Page 16: Temperature Display Settings
Temperature display settings Select the icon with the thermometer and use the navigation buttons to choose whether temperatuse is shown in Celsius or Fahrenheit degrees. The default setting is Celsius. Camera settings Select the camera icon and use the navigation buttons to select one of the three options: add a camera, delete a camera or activate the ca mera cycle function. - Page 17 To remove the camera, select the trash can icon. Then select one of the con nected cameras and press «OK». To connect a new camera, select the upper icon with «camera+» icon. Press «OK» to start pairing. Press the pairing button on the camera itself at the same time —...
-
Page 18: Sound Sensitivity Level
Note: The camera has been paired at the factory and does not need to be re-paired unless it has been manually dis connected. Sound sensitivity level Enter the submenu with the baby icon. Inside there different options available to you. The following options are available: gradation of the voice activation sensitivity from «High»... -
Page 19: Mounting
switched off. But if the baby's voice is heard by the baby monitor, the handheld display will immediately activate. Mounting Place the baby monitor at an appropriate height and carefully adjust the angle of the camera to have the most comfortable viewing angle to monitor your baby. -
Page 20: Baby Monitor Maintenance
Baby monitor maintenance The baby monitor requires no specific maintenance — just keep the lens clean, which will give you the clearest, most detailed picture possible. From time to time, gently wipe off fingerprints and dust on the lens and LCD screen with a dry, soft cloth. Do not use a rough or stiff cloth that could scratch the outside of the unit. -
Page 21: Disposal Of The Device
Disposal of the Device (enviroment protection) At the end of the product life cycle, you should not dispose of this product with normal house- hold waste. Take this product to a collection point for the re- cycling of electrical and electronic equipment. The symbol on the product, user’s guide and/or box indicates this. -
Page 22: Help
Help Display – Try recharging the battery pack. – Reset the Units. Unplug both the Units' electrical power, then plug them back in. – Is the Unit switched on? Press and hold the ON/OFF button on the Parent Unit for 3 seconds to switch it ON. –... - Page 23 – Reset both the Parent Unit and Baby Unit by disconnecting them from the electrical power. Wait about 15 seconds befo- re reconnecting. Allow up to one minute for the Baby Unit the Parent Unit to synchronize. – See Pairing section of this manual, if there is a need to re- register the Units.
- Page 24 – To avoid background noise or echoes, ensure that there is enough distance between your device and the Camera Unit. – Use of other 2.4 GHz products, such as Bluetooth™ sys- tems or microwave ovens, may cause interference with this product.
-
Page 25: Warranty
Thank you for purchasing this SOON product. What Does this Warranty Cover? Subject to the exclusions contained below, SOON warrants that product («Product») or certified accessory («Accessory») sold for use with this product that it manufactured to be free from defects in ma- terials and workmanship under normal consumer usage for the period outlined below. - Page 26 Who is covered? This Warranty extends only to the first consumer purchaser, and is not transferable. Warranty Period One (1) year from the date of the first purchase by the first purchaser-customer. Exclusions Normal Wear and Tear. Periodic maintenance, repair and replacement of parts due to normal wear and tear are exc- luded from coverage.
- Page 27 SOON, are excluded from coverage. Unauthorized Service or Modification. Defects or dama- ges resulting from service, testing, adjustment, instal- lation, maintenance, alteration, or modification in any way by someone other than SOON or its authorized service centers, are excluded from coverage.
-
Page 28: Technical Specifications
Technical Specifications Baby Monitor Frequency 2400 MHz–2483.5 MHz IR sensors: 8 units Operating temperature 5°C–40°C Power Adapter Input: 100-240V AC, 50/60Hz; Output: 5.0V DC, 1000mA Handheld Display Frequency 2400 MHz—2483.5 MHz 16.7M color 2,4” LCD TFT screen Power Adapter Input: 100-240V AC, 50/60Hz; Output: 5.0V DC, 1000mA Battery Type: Li-Pol 1500 mAh Specifications are subject to change without notice. - Page 29 Manufacturer: Dongguan HDKing Smart Technology Co. LTD. Floor 2, Building C, Hechang Road No.8, Shatou Community, Changan Town, Dongguan, Guangdong, China. Fax: +86-0769-81666975. Tel: +86-0769-81666972. Distributor in RF: «Socinteh» 111250, Russia, Moscow, Krasnokazarmennaya str. 10, room 10. Importer: «Socinteh» 111250, Russia, Moscow, Krasnoka- zarmennaya str.
