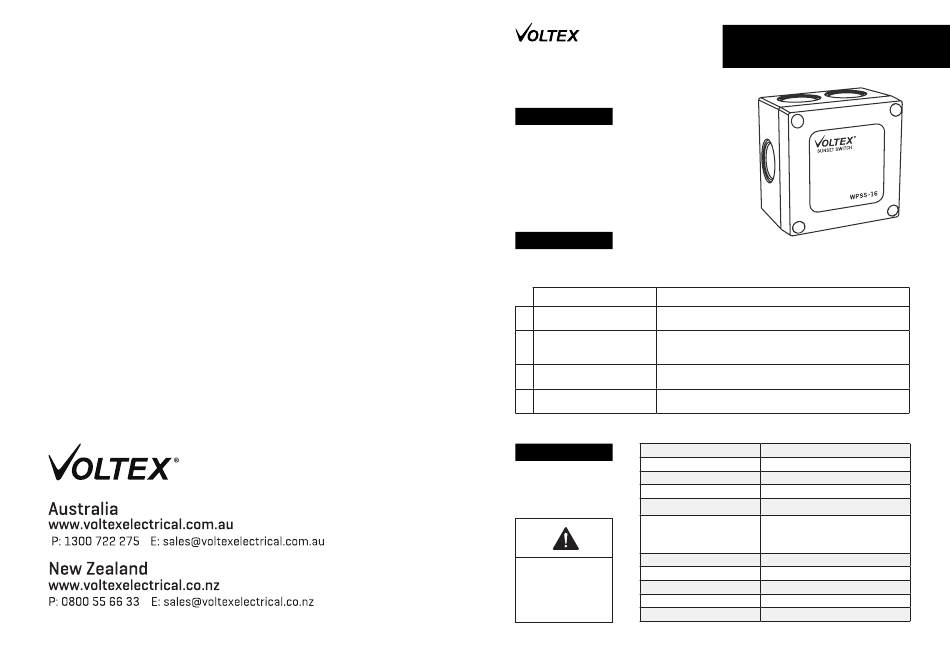

Installation GUIDE
INTRODUCTION

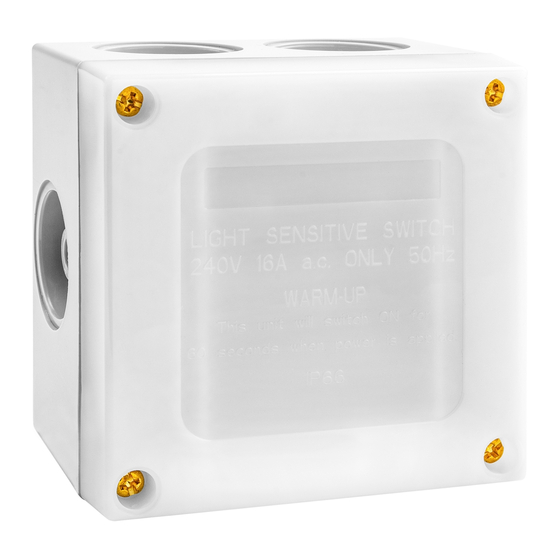

The Voltex Sunset Switch is a photo-electric
sensor that automatically turns a load ON at
dusk and OFF at dawn, or at a pre-determined
time.
OPERATING MODES
The four operating modes are easily set via switches on the product
Mode
Description
1
Dusk-Dawn Mode (DEFAULT Mode)
Turns the load ON at dusk and OFF at dawn. The product is supplied set to
this mode
2
Delay Timer mode
Turns the load ON at dusk and runs for a pre-set length of time every night
The ON time can be set in 30 minutes increments, from 30 minutes to
15.5 hours
3
Real Time Mode
Turns the load ON at dusk and OFF at the same set time of night, every
night
4
ECO mode
Turns the load ON at dusk, OFF during the middle of the night, and back
ON again until dawn
SPECIFICATIONS
Operating Voltage
Operating Temperature
Certified Standard
Ingress Protection
Maximum switching capacity
Maximum Load
Minimum Load
The product includes
Switching levels
a turn ON delay and
Turn ON/OFF delay
a turn OFF delay of 1
minute to prevent false
Timer Range
switching
Timer Steps
SUNSET SWITCH
WPSS-16
220 – 240Vac 50Hz
0 to +50°C
CISPR15, AS/NZS 61347.2.11
IP66
16A
5A LED
16A incandescent and halogen
16A fluorescent
0W
ON – 25 Lux, OFF – 50 Lux
1 minute
30 minutes to 15.5 hours
30 minutes
II12012020-RG
Advertisement
Table of Contents
Related Manuals for Voltex Sunset Switch
Summary of Contents for Voltex Sunset Switch
- Page 1 ® SUNSET SWITCH INSTALLATION GUIDE WPSS-16 INTRODUCTION The Voltex Sunset Switch is a photo-electric sensor that automatically turns a load ON at dusk and OFF at dawn, or at a pre-determined time. OPERATING MODES The four operating modes are easily set via switches on the product...
- Page 2 7 hours after dusk TESTING To test the Sunset Switch during daylight hours, after the initial one-minute test period, fully cover the unit with 4 hours after dusk the product box (with black insert) and wait for at least one minute until the load turns ON.
- Page 3 MODE3 - REAL TIME MODE (SWITCH 7 ON, SWITCH 8 OFF) MODE4 - ECO MODE (SWITCH 8 ON) Allows the selection of a fixed turn OFF time every night. In ECO mode, the unit will switch the load ON at dusk for approximately 50% of the night, then OFF in the middle of the night, and then ON again until dawn.
