Summary of Contents for Abestorm Guardian SNS90

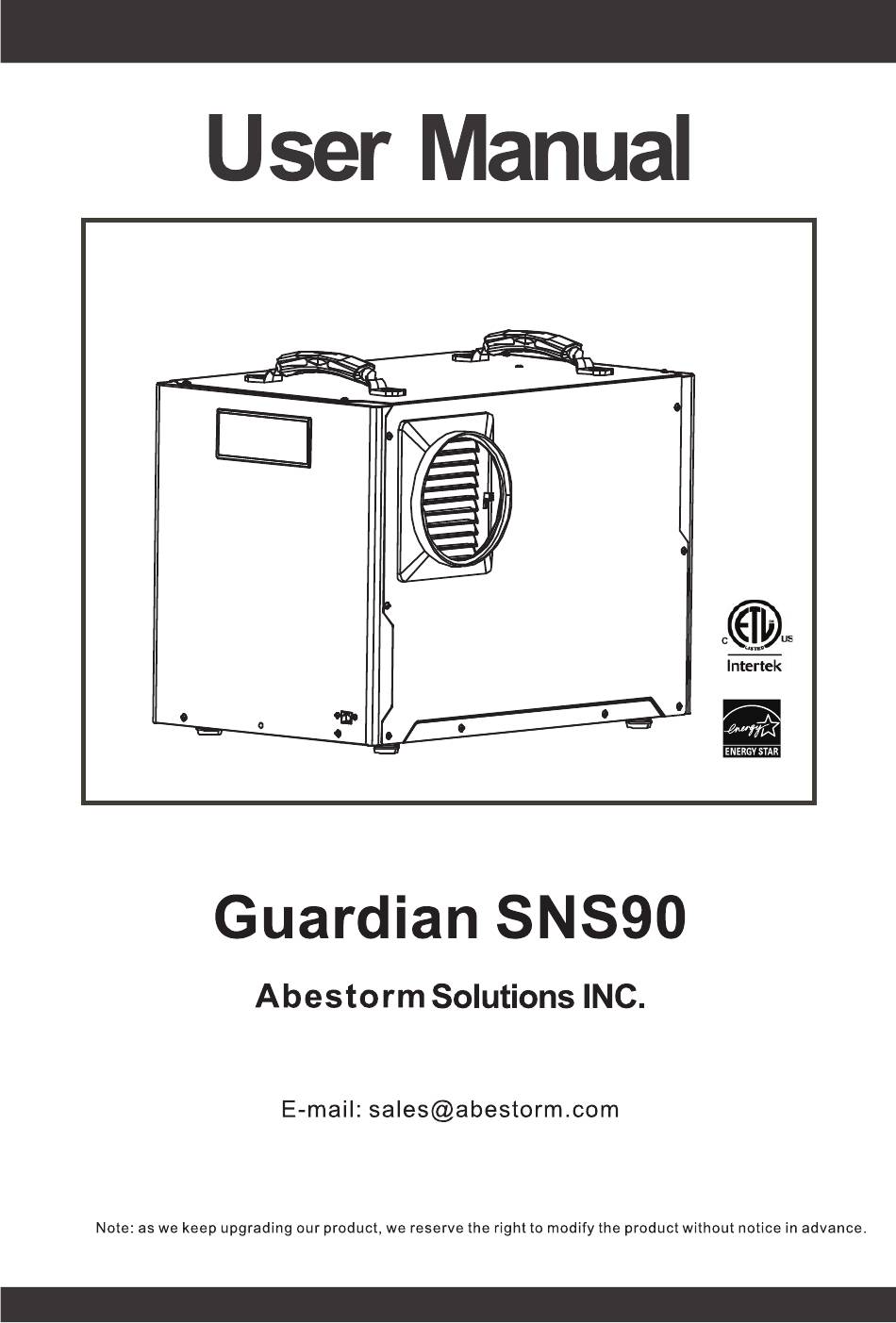

- Page 1 ADD: 14752 Yorba Ct Chino CA 91710 US...
-
Page 2: Table Of Contents
Table of Contents Warranty Registration Safety Notes ldentification Electrical Supply Principle of Operation lnstallation Key Functions Indicator Lights Remote Control lnstructions Operating Instructions Diagram Dehurnidifier Storage Ducted Applications Troubleshooting Spare Parts Warranty Information... -
Page 3: Warranty Registration
Warranty Registration Congratulations on purchasing a new Guardian Dehumidifier.Your new dehumidifier comes with an extensive warranty plan.To register, simply fill out and return the warranty form provided in your dehumidifier box. Be sure to note your dehumidifier serial number as you will need it for registration. Safety Notes The Guardian Series Dehumidifier must always be connected using a grounded electrical connection (as required for all electrical appliances). -
Page 4: Electrical Supply
For future reference,write down the model, serial number, and date of purchase for your dehumidifier.This is extremely helpful if you need to seek assistance in the future. The data label on the side of yourunit has the key characteristics of your specific unit. Model Number: Guardian SNS90 Serial Number: Date of Purchase:... -
Page 5: Key Functions
If you would like to switch back to normal humidistat operation, simply move the setpoint above 36%. 4. Central Control This mode is not applicable on the Guardian SNS90. Central Control light should be off at all times when not connected to the AC. -
Page 6: Indicator Lights
5. Manual Drain Button For extended storage or movement of the machine, press the "Drain”button to remove water fro mthe integral pump's reservoir. 6. Pump Trouble Warning When the pump reservoir water level is too high, the high water sensor will activate to prevent over- flow.When this occurs, the dehumidifier will stop the compressor automatically and the display will show “E4".After a 1 minute delay, the fan motor will turn off and the machine will not operate until the problem is resolved.To reset the unit after an“E4”... -
Page 7: Operating Instructions
The Guardian SNS90 has both automatic and manual draining. During normal operation, the Guardian SNS90 will automatically drain as required. lf you would like to store or move the machine, you may press the drain button to drain the water from the pump reservoir. The drain will operate for 15 seconds each time the button is pushed. - Page 8 Guardian SNS90 Diagram Front View Unit Cover Handle Air Intlet Grille Inlet End Cap Drain Hose Back View Unit Cover Control panel Air Outlet Grille Dehumidifier Storage lf the unit will be stored for an extended period of time, complete the following steps: 1.
-
Page 9: Ducted Applications
Ducted Applications Ducting the dehumidifier allows the unit to be in one room while conditioning an adjacent room. The supply grille is designed for 6" flex ducting. Be sure to secure the ducting with a tie wrap. Also, keep in mind that the supply ducting can be screwed into an adapter if necessary. Ducting Installation Maximum length for ducting= 6' Note: The supply duct adapter is standard on all units. -
Page 10: Troubleshooting
Troubleshooting Symptom Cause Solution Verify that there is power to the outlet and that the plug is properly Power Supply installed in an outlet. Machine Won't Run The unit is outside the operating temperature Room Temperature Over 105°F range. Modify the room conditions so the (Display HI) or Below 33°F temperature is between 33°F-105°F and (Display LO) - Page 11 Guardian SNS90 Spare Parts ALL Guardian Models-Parts Part# Description G-100 Remote Control Package (cable+remote) G-101 Remote Control G-102 Remote Control Cable,25' G-103 Return Duct Collar Accessory G-106 Duct Kit Assembly(W-103+W-100) G-107 Fiexible Supply Duct,72" G-108 Main Control Board G-109 Display Board...
- Page 12 Return Authorization (RAnumber). Once an RA has been issued, customers should bring the unit to acertified repair center. Abestorm will arrange the shipping to bring the unit back to the Abestorm warehouse (at the expense ofthe customers) if customers are not available.
