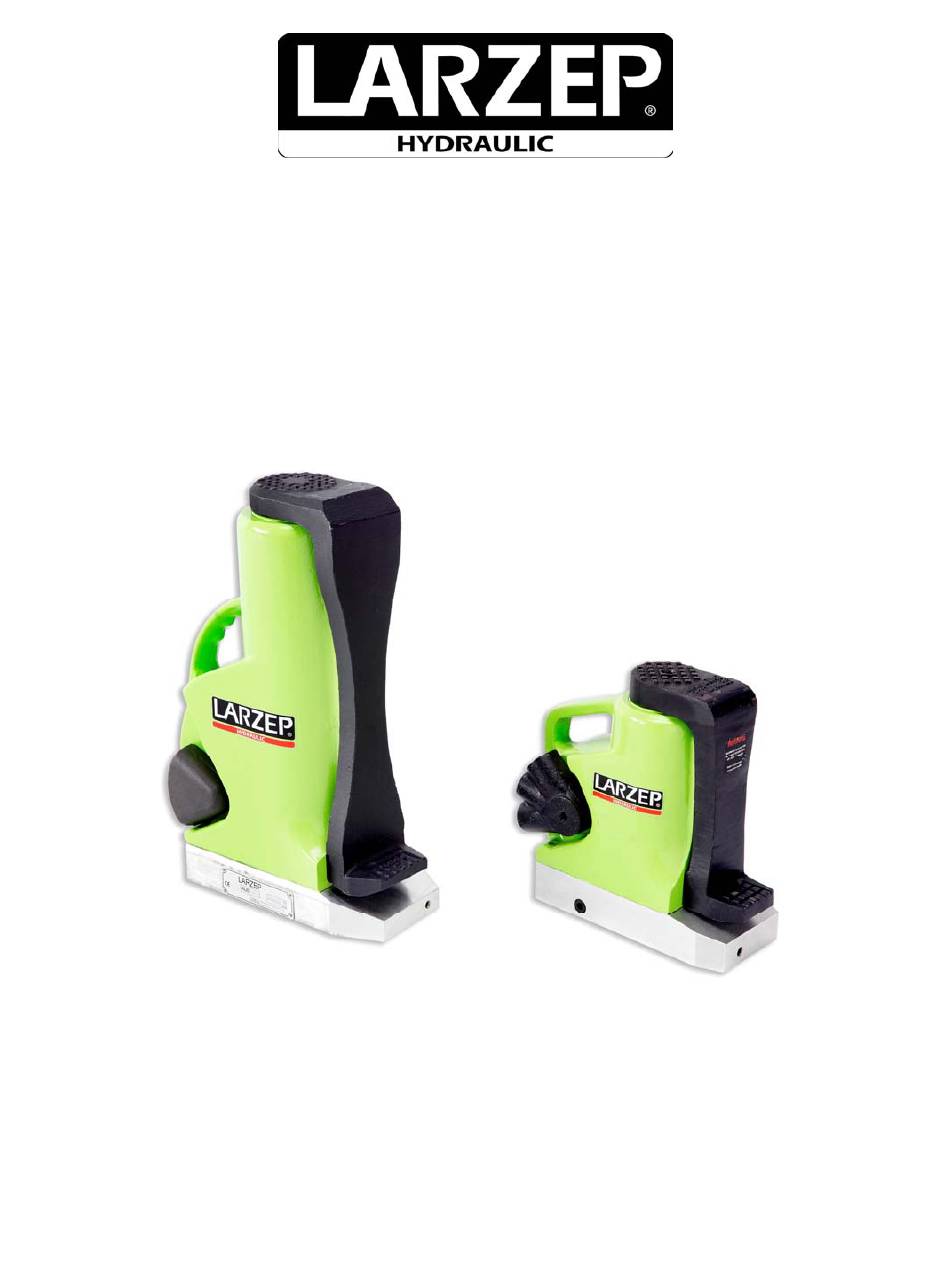

- Page 1 HYDRAULIC TOE JACK “AU02015” “AU03015” “AU06015” “AU02030” “AU03030” “AU06030” LARZEP, S.A. Avenida Urtiaga, 6 48269 Mallabia, Spain Tel. +34 943 171200 Fax. +34 943 174166 e‐mail: info@larzep.com www.larzep.com ...
-
Page 2: Warranty
This guarantee does not include the ordinary wear of both metal and non‐metal parts, abuse, using the equipment beyond its rated capacity and any wear or damage incurred as a result of using a hydraulic fluid which is not recommended by LARZEP, S.A. Please note that if the equipment is disassembled or serviced by anyone other than an authorized service dealer or by LARZEP, S.A., this guarantee is rendered null and void. In the event of a warranty claim, return the equipment, to LARZEP, S.A. or the authorized dealer which sold you the hydraulic equipment, LARZEP, S.A. will repair or replace the faulty equipment, whichever is deemed most appropriate. LARZEP, S.A. shall not be held liable for any consequential damages or losses, which may occur as a result of faulty equipment. 3. TECHNICAL FEATURES MODELS SADDLE CAPACITY TOE CAPACITY STROKE TOE HEIGHT CLOSED HEIGHT WEIGHT AU02015 20 ton 8 ton 152 mm 67 mm 276 mm 15 kg AU02030 20 ton 8 ton 305 mm 67 mm 452 mm 23 kg AU03015 ... -
Page 3: Declaration Of Conformity
Instruction Manual Hydraulic Toe Jack “AU” 6. DECLARATION OF CONFORMITY 3 ... - Page 4 Instruction Manual Hydraulic Toe Jack “AU” GENERAL SPARE PARTS “AU02015” “AU03015” “AU06015” “AU02030” “AU03030” “AU06030” 4 ...
