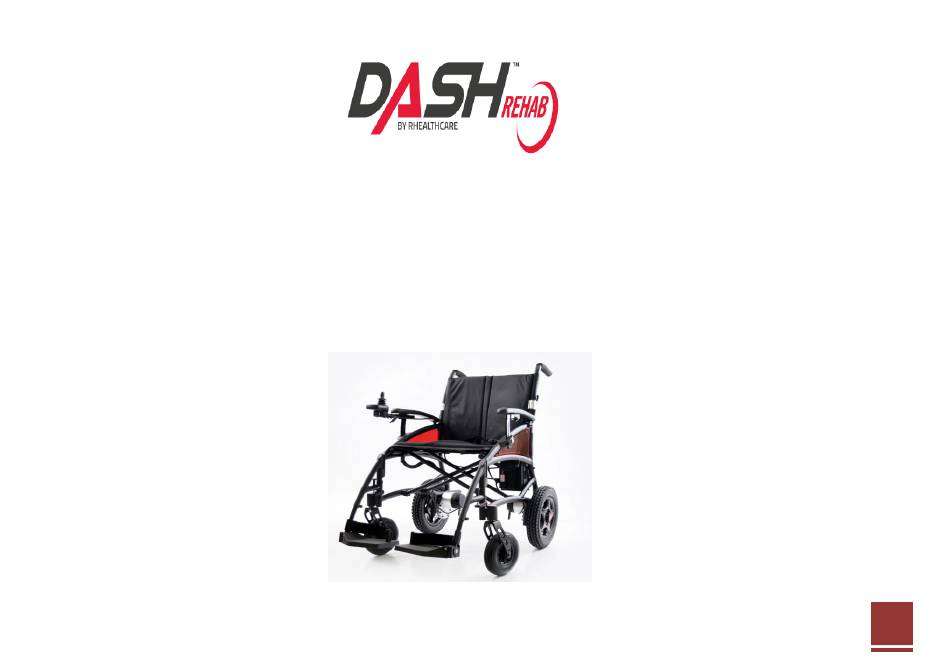

- Page 1 ELECTRIC WHEELCHAIR Dashi Eco User Manual...
- Page 2 Preface Please read the user manual carefully before taking the product into use. This manual contains operations, assembly methods, and simple faults solutions. This manual applies to our models: Dashi Eco This manual contains wheelchair maintenance and self checking methods, please put it in proper place. ...
- Page 3 Product...
- Page 4 Technical parameter Product name model Dashi Eco Overall dimension 1100x620x980mm product weight about 22kg Maximum speed 6km/h endurance mileage 15-20km battery (lead acid) Rated capacity：10/13AH Rated voltage：24V equipment quantity: 1 set Motor Rated voltage：24V rated power：150W equipment quantity: 1 set Charger rated input：220-240V~ output voltage：24V...
- Page 5 If you want to know the latest model or the latest revision, please call Dash Rehab by Rhealthcare or email and browse online dashrehab.co.uk Quick installation 1.
- Page 6 Take the electric wheelchair out of the box and press down on both ends of the cushion to put the cushion flat. Hold hands on both sides respectively, and at the same time lift up the backup tube until the spring pin is stuck in the hole, and check whether it is firm.
- Page 7 ·Press the rotating seat down to the frame nozzle, lift the handle and rotate the movable leg tube in the direction as shown in the figure until the pin shaft snaps into the fixed seat. Turn the pedal down again. Insert the controller adjusting rod into the pipe opening under the armrest and adjust it to a proper position, and tighten the plastic screw until the controller is firm and does not shake.
- Page 8 Turn the clutch handle inward to the electric state, and push it gently to make sure that the wheel cannot roll. Refer to 4. Instructions - motor clutch for specific operation. Step4 Installing the battery box With the power output connector facing up, lift the battery and push it into the battery box, and then put it down until the buckle on the battery and the battery box are completely stuck.
- Page 10 Step 6 Upholstery installation Stick the back upholstery as shown, place the seat cushion into the seat with the slope in front, press the middle part to stick it firmly with the seat upholstery. Installation finished. Step 7 Anti-tipper installation Insert the anti-tipper into the frame tube to the appropriate position, insert the bayonet to fix the hole.
- Page 11 Controller including: 1. Joystick 2. Button panel 3. Charging interface 4. Power cord connector 5. Motor cable connector Joystick Joystick controls the direction and speed of the wheelchair. When pushing it, wheelchair will run. The greater the pushing range of the joystick, the greater the speed of the wheelchair. When releasing it and putting it back in place, the wheelchair will slow down until it stops running.
- Page 12 the wheelchair. Battery power indicator Battery power indicator is located in front of the joystick. When controller is working, it displays the battery power, controller status and power system status, the battery is full when all the lights are on. (All lights on does not mean that the battery is fully charged, please refer to the charger indicator when charging) 1、...
- Page 13 button to sound the siren to avoid accident. Charging hole Use a separate charger to charge the wheelchair through the three-hole socket on the front of the controller Controller connection Warning! Wrong connection will cause damage to the controller, charger and connectors. 2.Battery Battery box fixed on back of chair with power outlet, overload protector, etc.
- Page 14 1、turn off power； 2、make sure it on electric model； 3、take off wire between battery and controller; no need to take off wire between motor and controller； 4、pls see picture 4-7 and A1/A2 screws，take off button on battery box and pulling then can take it away； Warning！...
- Page 15 Warning！Do not make wheelchair into manual mode when user is driving on slopes. 4. Adjustment of Joystick： Put the tube below the controller into the tube below armrest. Adjust the controller to perfect position by screwing the nut counterclockwise (right picture).
- Page 16 6. Adjustment of Castor Adjust castor angle by unscrew the nut. 7.Armrest Armrest height adjustable as bellow： 1、 push down the button then adjust the height;...
- Page 17 2、 loose the button then lock. 8. Charge The charger is used for battery charging. During electric wheelchair is charging, do not use it. Charger Technical Data Input voltage: AC220V ±10% Output voltage: 24V/DC Output current: 3A 9. Usage of Charger In order to charge the battery, connect the charger with power supply and battery box’s plug.
- Page 18 following instructions to complete charging process: Step 1: Make sure the charger groove is not blocked. Step 2: Make sure the electric wheelchair is power off. Step 3: Unplug the plugs which connect the battery box and controller. Step 4: Connect the charger’s output plug to the battery box’s power plug. Step 5: Connect the charger’s main plug to the power supply and the red light will be alight.
- Page 19 ℃ ℃ The charging environment temperature range is from 10 to 50 . If it is out of the environment temperature range, the battery is unable to function well, and can easily make battery damaged. It’s normal for the fan making a sound during charging. It is for cooling the charger, please do not worry about Prevent liquid go into the charger during charging.
- Page 20 Do not unplug the power supply when the socket or your hands are wet, it may cause electric shock. In case of unpredictable accident will happen and hurt the user, do not use or sit on the electric wheelchair when charging. System Diagnose When the indicator LED lights are blinking, it means the wheelchair has abnormalities.
- Page 21 The battery power is To charge immediately. Or battery is The leftmost red LED light is lit extremely inadequate. malfunction, and is not able to charge. Two short beeps with five The left side motor is The left side motor is poor connected or indicator lights blink twice malfunction.
- Page 22 Nine short beeps with five Please consult service center for Controller is malfunction. indicator lights blink nine times maintenance. Maintenance Maintenance of wheelchair includes clean wheelchair, check wheel and battery, and charge battery. For further maintenance please contact with your dealer. Our suggestion is checking the wheelchair every half year, annually overhaul.
- Page 23 Battery To make sure that the battery is fully charged frequently. In order to prolong battery life, we strongly recommend users do not to charge until battery run out of power totally. 2 Wheelchair Malfunction and Checking When malfunctions happen during the wheelchair is working, please turn off the power before check. Symptom: completely lose power, and all the LED lights on the controller panel are off.
- Page 24 parts is indicated by the controller. For more details, please kindly refer to chapter of audio signal indication. 3 Maintenance Checking The following is a checking list. Electric wheelchair should be ordinal checked according to our suggestion. When you get on or get off the wheelchair, some self checking is done automatically. For more your attention, we particularly list these self-checking items in A area.
- Page 25 In case of electric parts are damaged due to damp, please avoid storing the wheelchair in rain, outdoor and moisture. Storage condition: Environment temperature -40℃～+55℃; Relative humidity≤80%; Air Pressure 86kPa～106kPa. Contact Company Dash Rehab by Rhealthcare Name： Address： Unit 25, Whistleberry Industrial Park, Hamilton, ML3 0ED...
- Page 26 Telephone: 0845 1460600 Fax: 01246 453881 Email: sales@rhealthcare.co.uk Web： dashrehab.co.uk...
