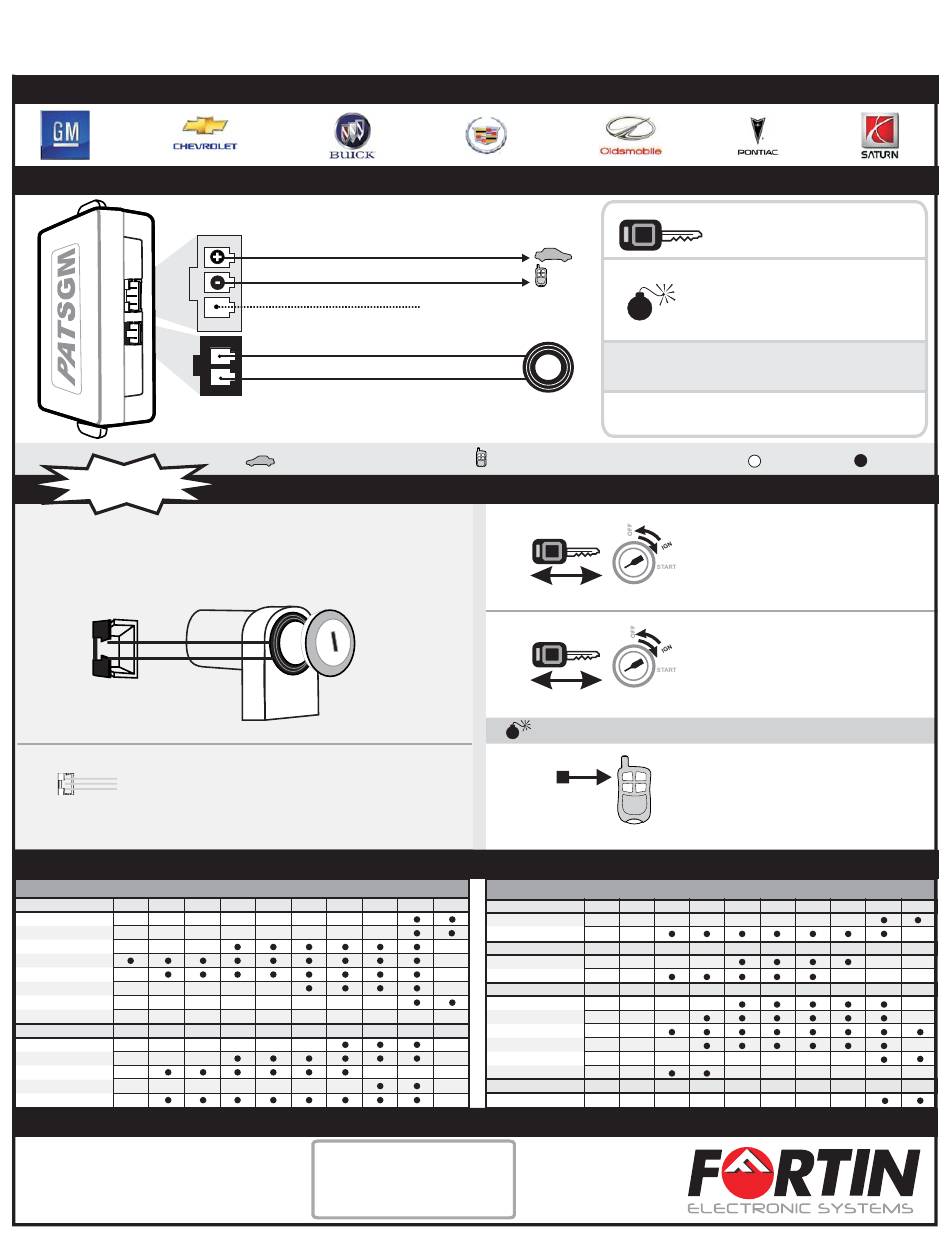

Fortin PATS-GM Installation Manual

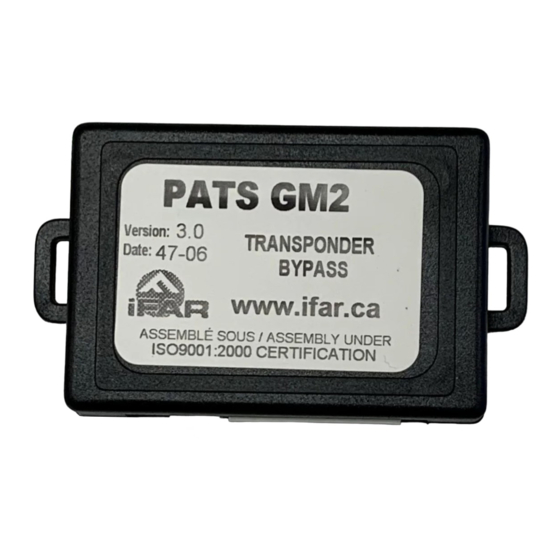

PATS GM
Copyright © 2006, FORTIN AUTO RADIO INC
GENERAL MOTORS BYPASS KIT
WIRING / CONNECTION GUIDE WIRING / CONNECTION GUIDE
2
1
START HERE
Connector 1 (Black):
• Remove the covers surrounding the ignition barrel.
1
• Peel off the adhesive back of the ring, place it on the ignition barrel.
• Secure the wire with tie-wrap.)
Connector 2 (White):
2
Connect the red wire to 12V constant.
Connect the black wire to "Ground out when running".
VEHICLE FITGUIDE VEHICLE FITGUIDE
VEHICLES YEARS OF VEHICLE COMPATIBILITY
Buick 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006
Allure
LaCrosse
LeSabre
Park Avenue
Park Avenue Ultra
Rendez-vous
Terraza
1997 1998 1999 2000 2001 2002 2003 2004 2005 2006
Cadillac
CTS
DeVille
SLS
SRX
STS
INFORMATIONS / SUPPORT TECHNIQUE INFORMATIONS / SUPPORT TECHNIQUE
Neither the manufacturer or distributor of this module is
responsible of damages of any kind indirectly or directly
caused by this module, except for the replacement of this
module in case of manufacturing defects. This module must
be installed by qualified technician. This instruction guide
V
may change without notice. isit www.ifar.ca to get latest
version.
ALL RIGHTS RESERVED
1
Red
Black (-) While running
Blue
N.C
3
ANTENNA
Connect wire to vehicle
INSTALLATION AND PROGRAMMING INSTRUCTIONS INSTALLATION AND PROGRAMMING INSTRUCTIONS
Pass-Key III Module
Technical support:
TEL: 514-255-HELP (4357)
FAX: 514-255-1367
Web: www.ifar.ca
12V Battery
Connect wire to Remote-Starter/Alarm
#1
3
#2
4
You have 5 seconds to complete the following procedure
5
VEHICLES
Chevrolet 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006
Uplander
Venture
Oldsmobile 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006
Aurora
Silhouette
Pontiac 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006
Aztek
Bonneville
Grand Prix
Montana
Montana SV6
Transport
Saturn 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006
Relay
PATENT PENDING :
Canada : 4,419,697
USA : 60/449.414
INSTALLATION GUIDE
Made in Canada V1.0.c January 8, 2007
W e b s i t e : h t t p : / / w w w . i f a r . c a
X2 Two (2) functional keys required.
Keep the keys separate while
programming.
Each step must be completed in the
indicated delay, otherwise the PATS
GM will not be programmed
therefore it is necessary to restart
the procedure.
Works on ALL GM vehicle (since 1998) equipped with
GM PK3 system. Except : GM PK3+ (show on key).
IMPORTANT : Once the PATS GM is programmed, it can't be
programmed or used on any other vehicle.
OUTPUT
Turn the Ignition ON / OFF for 1
second and remove the first key.
Turn the Ignition ON / OFF for 1
second and remove the second
key.
Activate the start function of the
remote starter
connected.
When the security light turn off
the PATS GM IS PROGRAMMED.
YEARS OF VEHICLE COMPATIBILITY
INPUT
with the PATS GM
