Vimar LINEA 30179 Series Quick Start Manual

LINEA EIKON ARKÉ
30179.x 20179 19179

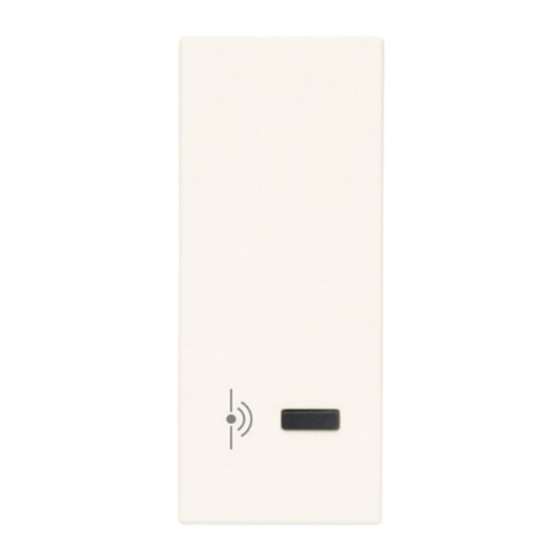

Connected radar sensor
Thanks to UWB (radar ultra wide band) ultra-low power technology, the sensor is capable of
detecting presence with the utmost precision. The device is fitted with an input for external wired
contact which can be configured to control the activation of the relay or to activate the scenarios
in the View Wireless system. The front push button starts the configuration with the View Wireless
App and the LED signals the status of the relay.
TWO OPERATING MODES (ALTERNATIVE)
Stand alone • View Wireless System
Download the View Wireless App from the stores onto the tablet/smartphone you
will be using for configuration.
Depending on the mode you select, you will need:
Stand alone
Gateway art. 30807.x-20597-19597-16497-14597
Nothing else
View App
When the device is powered for the first configuration, we recommend you search for any
new firmware and perform the update.
Create your Installer account on MyVimar (on-line).
STAND ALONE CONFIGURATION
1. Wire all the radar sensors.
2. Start the View Wireless App and log in with the credentials you just created.
3. Create the system and the environments.
4. Associate all the sensors with the environments.
To associate the radar sensor:
• Select "Add" ( ), choose the environment to place it and give it a name
• Select ; activate the Bluetooth connection on your tablet/smartphone and approach the
radar sensor
• Press the front push button to start the Configuration phase
5. For every device, set the function, the parameters and any accessory devices (wired or radio
control and related function).
CONFIGURATION IN THE VIEW WIRELESS SYSTEM
1. Wire all the devices in the system (radar sensors, 2-way switches, thermostats, gateway, etc.).
2. Start the View Wireless App and log in with the credentials you just created.
3. Create the system and the environments.
4. Associate all the devices with the environments, except for the gateway (which should be
associated last).
To associate the radar sensor:
• Select "Add" ( ), choose the environment to place it and give it a name
• Select ; activate the Bluetooth connection on your tablet/smartphone and approach the
radar sensor
• Press the front push button to start the Configuration phase
5. For every device, set the function, the parameters and any accessory devices (wired or radio
control and related function).
6. Transfer the configuration of the devices to the gateway and connect it to the Wi-Fi network.
7. Transfer the system to the Administrator user (who must have created his/her profile on
MyVimar).
For details please refer to the View Wireless App manual you can download from www.
vimar.com  DOWNLOAD  View Wireless MOBILE  App
Summary of LED signals
• During normal operation (default colours):
LED
On
(white for Linea, amber for Eikon, blue for Arké, green
for Idea and Plana)
Colours and brightness can be customised using the
View Wireless App
Off
Flashing white
xx179 01 2204
IDEA PLANA
16629 14179
View Wireless System
for management via smartphone/tablet
Meaning
Relay active
Relay not active
Manual forcing
(Relay active without timer
activated/deactivated with
front push button pressing)
• In the configuration phase:
LED
Flashing blue
(for max 2 min.)
1 green flash
Blue permanently lit
1 white flash
RESETTING THE DEVICE.
The reset restores the factory settings. Within the first 5 minutes from powering, press the front
push button for 30 s until the white LED flashes.
INSTALLATION RULES.
• Installation and configuration must be carried out by qualified persons in compliance with the
current regulations regarding the installation of electrical equipment in the country where the
products are installed.
• The device must be installed in flush mounting boxes or surface mounting boxes with Linea,
Eikon, Arkè , Idea and Plana mounting frames and cover plates.
• Installation must be carried out in mounting boxes with a depth of at least 48 mm.
• Installation must be carried out with the system switched off.
• The OUT terminals are separated by double insulation from the L-N-P terminals. Do not
connect a mains voltage circuit to the OUT terminals; these terminals can be connected to
SELV and ELV circuits according to the characteristics stated.
• Connect a double insulated cable or a reinforced cable type 01840.E to the OUT terminals.
• The device may only be used for indoor applications.
• Metal objects in front of the detector tend to alter its operation. Avoid installations where metal
surfaces are present in the first metre of the radar's field of detection.
• The technology used is capable of detecting presence even through certain types of material
(for instance plasterboard, thin walls, fabric and wood), so suitable installation in the room is
necessary, as is the appropriate configuration of the maximum detection range.
• Do not install on partitions or walls subjected to shock and vibration.
• For surface mounting you can alternatively use the Vimar external mounting frame art. 00801
(only for Eikon, Arké and Plana series).
• Installation recommended at a minimum height of 1 m from floor level.
• Do not cover the detection range of the detector.
• Install the device at a distance of more than 2 m from any Wi-Fi 6E antennae.
• After the configuration phase (or after changing parameters) and every time it is switched on,
the detector performs an initial calibration phase lasting 45 s at the end of which it becomes
operational; during this phase, detection may not be precise.
Caution: The device is not suitable for detecting the presence of sleeping people.
CHARACTERISTICS:
• Rated supply voltage: 100-240 V~, 50/60 Hz.
• Max. power absorption from the mains: 1.1 W
• Output contact: 24 VAC or 30 VDC, 400 mA max (SELV and ELV), not suitable for controlling
electrical locks
• Bluetooth technology:
- RF transmission power: < 100 mW (20 dBm)
- Frequency range: 2400-2483.5 MHz
• UWB radar:
- RF transmission power: < 1mW (0 dBm)
- Frequency range: 7.3÷8.5 GHz
• Terminals:
- 2 terminals (L and N) for line and neutral
- 1 terminal (P) for connection to the remote wired control (for instance art. 30008-20008-
19008-16080-14008). The max distance between the IoT device and the push button is
50 m with a cable with a minimum cross-section of 1.5 mm
- 2 terminals (OUT) for the potential-free signal relay output for SELV and ELV circuits
• Front push button for configuration/reset and for manual forcing (in configurations in which this
mode is allowed).
• RGB LED indicating the output status (which can be set from the View Wireless App) and the
configuration status
• Operating temperature: -10 ÷ +40 °C (indoor)
• Protection degree: IP20
• Configuration via View Wireless App for View Wireless system in Bluetooth technology
• Controllable via View App
Meaning
Pending receipt of
a fw update
Connection established with View Wireless
Device associated
via Bluetooth with the smartphone
Device reset
2 .
