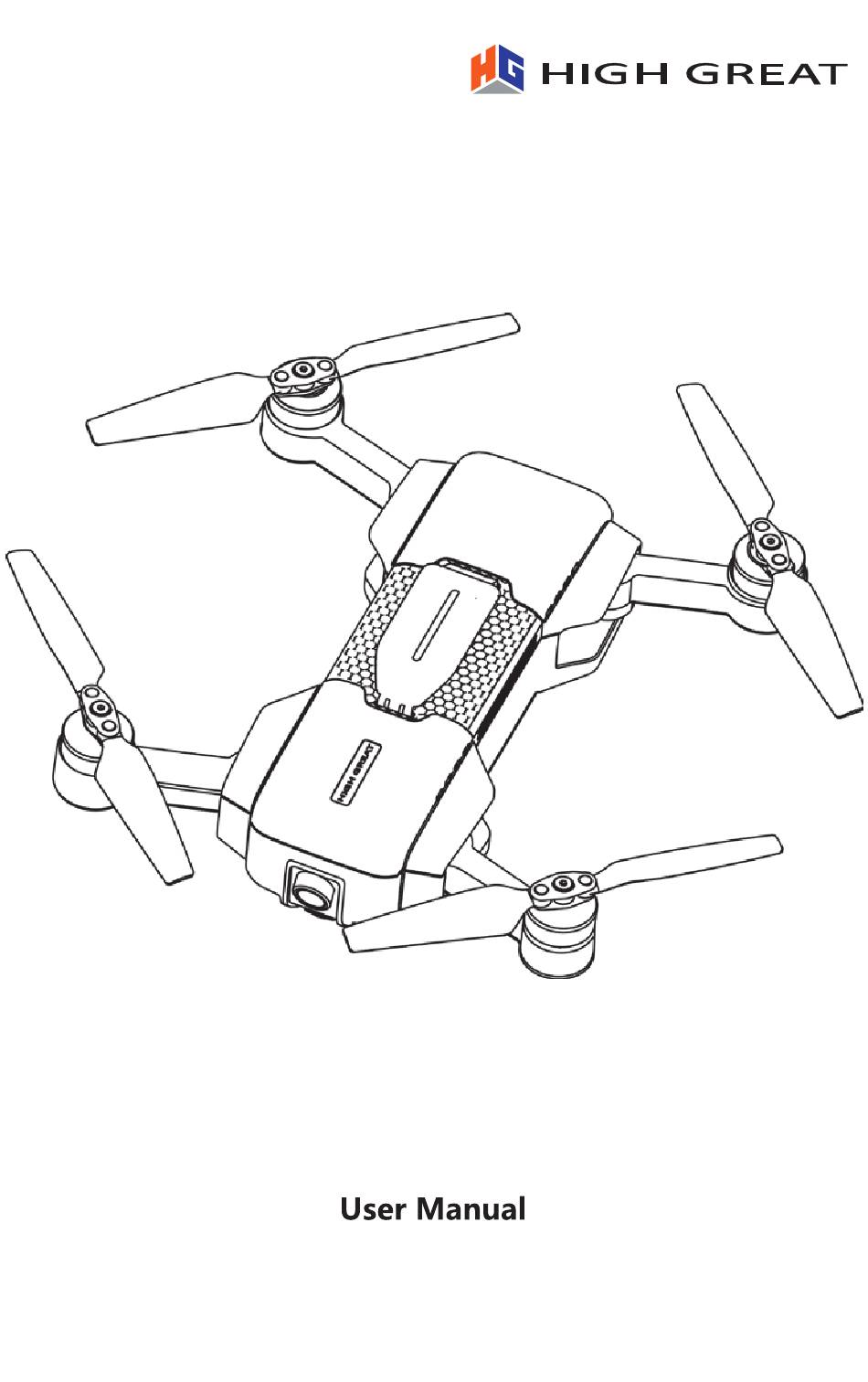

- Page 1 MARK...
-
Page 3: Table Of Contents
Contents Reading Suggestions ..........1 Symbols........................ 1 Downloading the APP..................1 Overview..............2 Introduction .......................2 Features Highlights..................2 Aircraft Diagram ....................4 Aircraft ................6 On/Off Switch and Power Indicator............6 Aircraft Status Indicator ................6 VIO Positioning....................7 Propellers......................8 Replacing the Propellers ..............9 Battery ........................9 Charging the Battery................10 Camera ......................10 Signal Frequency ...................11 Micro-USB Port ....................11... - Page 4 Shenzhen HighGreat Innovation Technology Development Co., Ltd Personal Center Settings................14 Media Library....................15 Photo Thumbnails ..................15 Advanced Functions Instructions......17 Memory Cruise....................17 Memorizing By Hand-holding............18 Memorizing Once Flying...............18 Target Tracking....................19 Short Movie......................20 Geo Fence......................20 Gesture Recognition..................21 Disclaimer ...............22 Battery Safety Instruction........24 FCC Statement............27 MARK FAQ's.............28 Warranty Card............29...
-
Page 5: Reading Suggestions
（MARK Item List） （Battery Safety Instruction） （Disclaimer） ( MARK User Manual) To learn how to use MARK, we suggest you read them in this order (MARK Item List), (Battery Safety Instruction), (Disclaimer), (MARK User Manual). Downloading the App Before using this product, you need to download and install the FlightGo APP. -
Page 6: Overview
Shenzhen HighGreat Innovation Technology Development Co., Ltd 2<<... - Page 7 Using advanced image recognition technology, MARK can follow and record video on a moving object you've chosen. Short Video Production MARK has kinds of autonomous one-key operation for short video production,such as orbit 360˚ shot mode, dronie mode. Intelligent Operation...
-
Page 8: Aircraft Diagram
Shenzhen HighGreat Innovation Technology Development Co., Ltd Aircraft Diagram 1. Camera 2. Arm 3. Propeller Holder（Detachable） 4. Propeller 4<<... - Page 9 Shenzhen HighGreat Innovation Technology Development Co., Ltd 5. VIO Positioning Camera 6. Battery 7. Power Level Indicators 8. Power Button, Indicator Light 9. Micro-USB Port &Wi-Fi Reset Button >>5...
-
Page 10: Aircraft
Hold the On/Off Switch for 3 seconds. Wait until the Power Indicator shows solid green, then remove your finger and MARK will switch on. After a few seconds, MARK will make a noise, alerting you that the ESC has turned on. -
Page 11: Vio Positioning
Shenzhen HighGreat Innovation Technology Development Co., Ltd VIO Visual Positioning Mark uses fisheye camera and instead of GPS signal for positioning. When the aircraft fly from outside to inside, works continuously, and the aircraft can fly seamlessly. to have a clear textured surface. -
Page 12: Propellers
Shenzhen HighGreat Innovation Technology Development Co., Ltd Propellers MARK has 4 sets of foldable propellers. The propellers are already mounted; users need only to expand the arms before the flight， different directions of arrows means different direction of propellers rotating -CW&CCW, meanwhile. The arrow on the propeller must also be in the same direction as the arrow in the picture once replacing new propellers. -
Page 13: Replacing The Propellers
10 hours of flight. ----------------------------------- ------------------------------------- Battery The battery is designed specifcally for use with MARK. It has a rated capacity of 1500mAh and a nominal voltage of 7.6V. There are indicators on the bottom of battery, pressing the button and the indicators will show the current battery level and go out automatically after 5 seconds. -
Page 14: Charging The Battery
Shenzhen HighGreat Innovation Technology Development Co., Ltd Charging the Battery We suggest you use the provided MARK battery charger devices to charge the battery. Any issues that occur due to use of other charging equipment shall be the responsibility of the user. -
Page 15: Signal Frequency
Shenzhen HighGreat Innovation Technology Development Co., Ltd The aircraft uses 5.8G/2.4G. While MARK is turned on, use the provided USB cable to connect MARK to your computer. You can then copy your photos and videos onto your computer. ------------------------------------------------------------------------- MARK must be turned on to be able to connect to your computer. -
Page 16: App
This section will cover the main sections of the FlightGo APP and the settings. APP Overview FlightGo is specifically developed to be used with MARK. Users can use the APP as a remote controller for flight control and photo and video shooting. You can also directly share your photos and videos to social networks. -
Page 17: App Settings
“Mode 1”(right-hand throttle) and “Mode 2” (left-hand throttle). Safe Sticks Safe Sticks allows you to control MARK ’ s flight by tapping on the arrows on the four directions in the virtual sticks.You can choose between “Mode 1”(right-hand throttle) and“Mode 2”(left-hand throttle). -
Page 18: Personal Center Settings
16 characters. The password has to be between 8-20 characters long and can be made up of numbers, letters and/or special characters. MARK FC Update Upgrade the drone's flight control through the APP. MARK OS Update Upgrade the drone's operating system through APP. -
Page 19: Media Library
The photo gallery displays thumbnails in date order. Swipe up to load more thumbnails and swipe down to load new thumbnails. Selecting Photos Tap the photo to select. To select all the photos MARK took in one day, tap the “Select All” next to the date. Deleting Photos After selecting photos, tap the “Delete”... - Page 20 Shenzhen HighGreat Innovation Technology Development Co., Ltd When you are connected to MARK’ s Wi-Fi, it will delete the files from MARK. When the Wi-Fi is not connected, it will not delete the files from MARK. The browsing page also has a "Delete" button, so you can delete photos directly.
-
Page 21: Advanced Functions Instructions
Shenzhen HighGreat Innovation Technology Development Co., Ltd >>17... -
Page 22: Memorizing By Hand-Holding
Shenzhen HighGreat Innovation Technology Development Co., Ltd 18<<... -
Page 23: Target Tracking
Shenzhen HighGreat Innovation Technology Development Co., Ltd >>19... -
Page 24: Short Movie
Shenzhen HighGreat Innovation Technology Development Co., Ltd 20<<... -
Page 25: Gesture Recognition
Shenzhen HighGreat Innovation Technology Development Co., Ltd >>21... - Page 26 HIGH GREAT accepts no liability for damage ,injury or any legal responsibilities inoccurred directly or indirectly from use of this product.
-
Page 27: Disclaimer
HIGH GREAT accepts no liability for damage ,injury or any legal responsibilities incurred directly or indirectly from use of this product as following circumstances: 1. Not reading Disclaimer, MARK Item List, MARK User manual and statements on H Incorrect 2. Users under the influence of anesthesia ,alcohol ,drugs or suffering from dizziness ,fatigue ,nausea ,or any other conditions,whether physical or mental , that could impair your ability to operate the aircraft safely . -
Page 28: Battery Safety Instruction
Shenzhen HighGreat Innovation Technology Development Co., Ltd Battery Safety Instruction Before using the HIGH GREAT MARK lithium polymer rechargeable battery for charging, please read the safety instructions of the battery carefully and follow the instructions in the manual. 1. Please check the appearance of the battery carefully. Please do not charge the battery once battery is damaged such as the surface of battery is bulging or leaking . - Page 29 2.If you do not use MARK for a long time, please remove the battery from battery compartment and store it separately. Otherwise, the battery will be over discharged and the battery will be permanently damaged.
- Page 30 Shenzhen HighGreat Innovation Technology Development Co., Ltd prohibited. and property damage. Charge battery every two months to maintain the cell activity. Waste and Recycling of Battery Do not discard the old battery. Please be sure to send the battery to the designated battery recycling bin after discharging, and comply with the local laws and regulations on the recycling of waste batteries.
-
Page 31: Fcc Statement
Shenzhen HighGreat Innovation Technology Development Co., Ltd FCC Statement has been tested and found to with the limits for a digital device, pursuant to of the limits are designed to provide reasonable protection against harmful interference in a residential installation. generates uses and can radiate radio and, if not installed and used in accordance with the instructions,... -
Page 32: Mark Faq's
Extreme weather such as strong winds, rain and snow, and no texture environment such as lake surface and sea level. 9. How will the MARK response if the battery is not enough? MARK will judge the power level according to the current height and the distance from users.and there is different status on APP... -
Page 33: Warranty Card
Shenzhen HighGreat Innovation Technology Development Co., Ltd Warranty Card Purchase Information Serial No: Purchase Date: Dealer: Telephone: Address: User Name: Telephone: Address: Maintenance Records Fault and Repair Conditions Repair Date >>29... - Page 34 Shenzhen HighGreat Innovation Technology Development Co., Ltd In need of maintenance service, please contact your dealer, or contact HIGH GREAT customer service in the following ways: TEL:+86 400-888-9686 Shenzhen High Great Innovation Technology Development Co., Ltd 30<<...
- Page 35 Shenzhen HighGreat Innovation Technology Development Co., Ltd >>31...
- Page 36 Website V1.0.1 2018 Shenzhen High Great Innovation Technology Development Co., Ltd. All Rights Reserved NO.6 Yuanlingzai Park, Henggang Town, Longgang District, Shenzhen City，Guangdong Province, China...
