- Page 1 Friday, April 19, 2019 EMO Formation UAV User Guide V1.0.0...
-
Page 2: Table Of Contents
Friday, April 19, 2019 Table of contents Product overview ......................3 Product introduction ................... 3 Functional highlights ..................3 Aircraft part names ..................5 Overview of aircraft usage ..................7 Battery switch and power indicator ..............7 Propeller replacement ..................10 Battery charging .................... -
Page 3: Product Overview

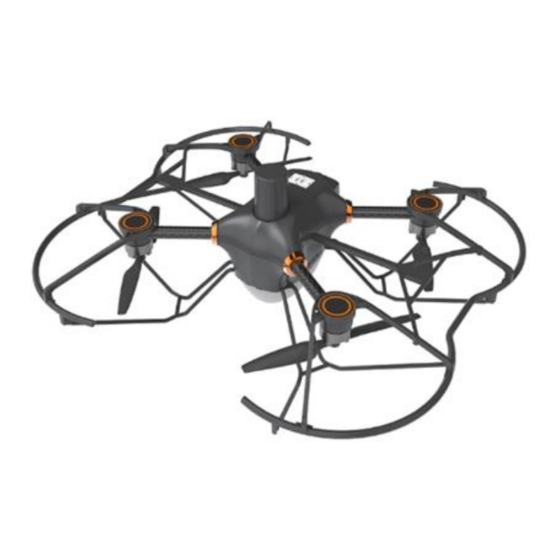

EMO User Guide carefully. Product overview The functional characteristics of EMO and aircraft part names will be briefly described in this chapter. Product introduction EMO is a portable, easy-to-use and rapidly deployable UAV for outdoor formation performance. - Page 4 Friday, April 19, 2019 Upper computer: a supporting upper computer specially developed for EMO formation performance, through which users can operate and complete UAV formation performance. Safety: locked-rotor protection, low power protection, fail-safe protection and physical protection. Expandability: adapt to the charging base for ground performance and battery life charging function;...
-
Page 5: Aircraft Part Names
Friday, April 19, 2019 flight speed Maximum descending 3m/s flight speed Maximum flight altitude 300m Maximum flight 800-1000m distance Light power 0-22W, adjustable Maximum luminous >840lm flux Minimum flight spacing 1.5m 5.8G WIFI Communication mode Working temperature -20~50° C Double-IMU Magnetometer Double-magnetometer Performance aircraft... - Page 6 Friday, April 19, 2019 ○ 1 Motor ○ 2 Blade ○ 3 Lampshade ○ 4 Protective cover ○ 5 RTK antenna ○ 6 Battery compartment ○ 7 Battery compartment locking device ○ 8 Battery switch ○ 9 Battery level indicator...
-
Page 7: Overview Of Aircraft Usage
Friday, April 19, 2019 Overview of aircraft usage EMO is mainly composed of flight system, positioning system, communication system, power supply system and lighting system. In this chapter, the use of aircraft and its auxiliary systems and related functions will be introduced in detail. - Page 8 Friday, April 19, 2019 ＜5% Flashing Aircraft startup/shutdown instructions Startup: Insert the aircraft battery into the aircraft battery compartment after it is turned on (please insert the battery into battery compartment within 30 seconds after it is turned on, otherwise the battery will be turned off automatically), a sound of aircraft startup will be given, and the light will be turn on, indicating the successful startup.
- Page 9 Friday, April 19, 2019 11. During the flight of dance steps, only the lights of dance steps shall be executed, and no other light control instructions shall be executed. 12. In the dance flight, when the battery level is low, the lights are turned off and the plane lands.
-
Page 10: Propeller Replacement
Friday, April 19, 2019 1. When the previous one is detected to be uncalibrated, the yellow light is normally on (the green light is normally on after calibration is completed); When the previous one is detected to be calibrated, the green light is normally on; 2. - Page 11 HighGreat. High Great reserves the right to update this disclaimer. To obtain the latest disclaimer, please visit http://www.hg-fly.com, the official website of High Great. Any updates may be made without prior notice.
- Page 12 Friday, April 19, 2019 1. Failure to carefully read the instruction manual and the information officially published by HighGreat in official website; and all the installations and operations due to failure to follow these instructions. 2. Operation by the an operator who is under poor physical conditions or poor mental conditions such as drinking, drug abuse, drug anesthesia, head ache, fatigue and nausea.
- Page 13 Friday, April 19, 2019 19. The operator fails to comply with local laws and regulations. 20. Other damages that do not fall within the scope of HighGreat's responsibility. 21. After content iteration of software, the latest electronic operation guidelines shall prevail, and the updated related content may not be notified.
-
Page 14: Warranty Card
Friday, April 19, 2019 department before flying. If necessary, local legal workers may be consulted for a detailed definition of flight activity categories. Note that in some regions and countries, it is forbidden to use aircraft for any form of commercial activities. 7. - Page 15 Friday, April 19, 2019 Manufacture: Shenzhen HighGreat Innovation Technology Development Co., Ltd. Address: 2/F, Building 6, Yuanlingzi Industrial Zone, Hengping Road, Yuanshan Street, Longgang District, Shenzhen E-mail： TEL:400-888-9686 WeChat official account Official website...
- Page 16 FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
