High Great HG TAKE User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

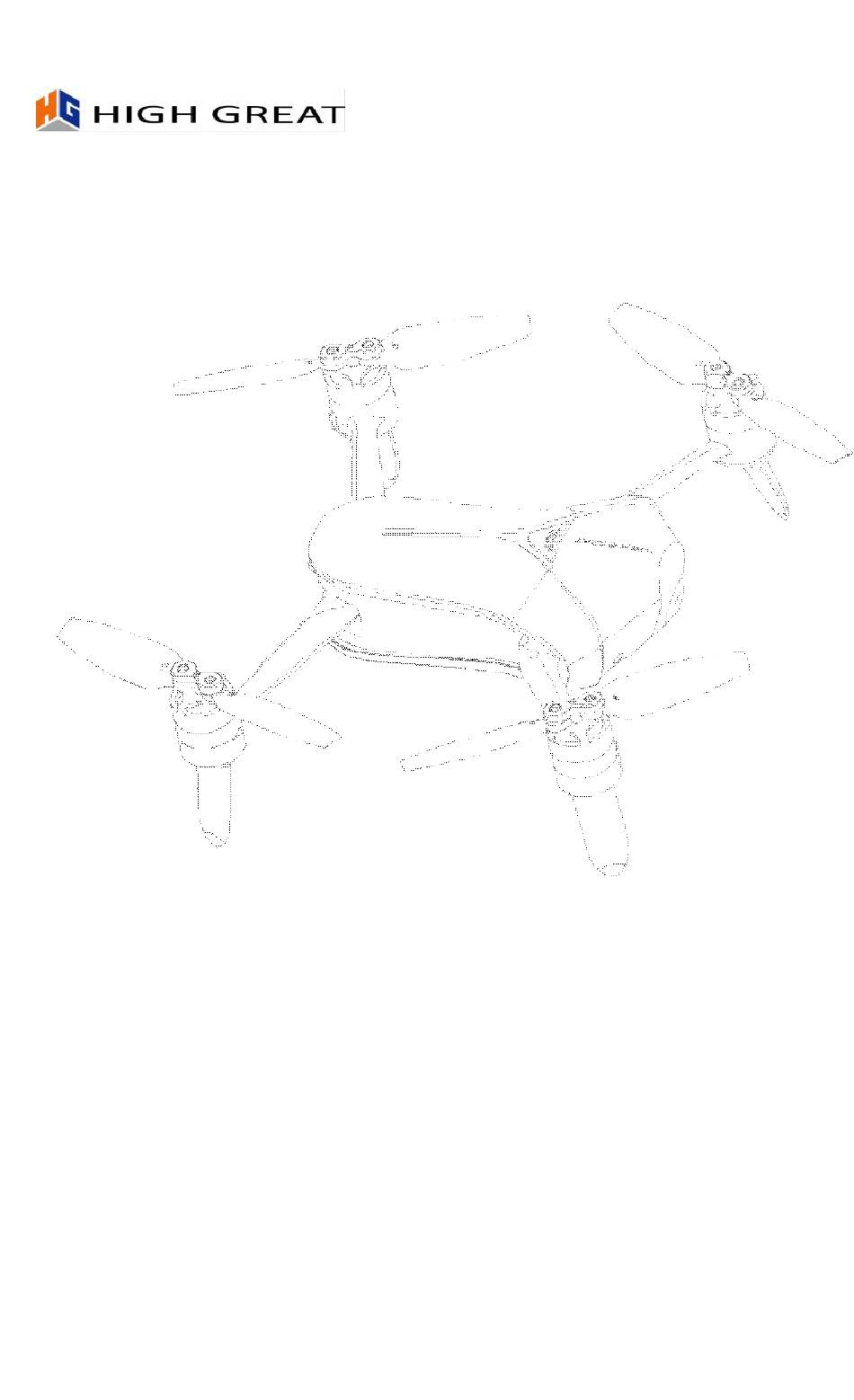

HG TAKE
User Manual V1.0
2017.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HG TAKE and is the answer not in the manual?

Questions and answers

Related Manuals for High Great HG TAKE

Summary of Contents for High Great HG TAKE

  • Page 1 HG TAKE User Manual V1.0 2017.2...

  • Page 3: Reading Suggestions

    《 HG TAKE Quick Start Guide 》 《 HG TAKE User Manual 》 To learn how to use HG TAKE, we suggest you read the provided manuals in this order: In the Box, Battery Safety Instructions, Disclaimer and then HG TAKE Quick Start Guide.

  • Page 4: Product Profile

    In order to give you a convenient and safe selfie experience, HG TAKE has various great features: The app is specifically developed for HG TAKE and is really simple to use. It can be used as a remote controller for flight control and photo & video shooting.

  • Page 5: Return To Home

    Automatically fly and record video around a certain point with a certain radius and at a certain altitude. Return to Home After outdoor flight, HG TAKE can return to you by just one tap on screen. Sharing Directly share your photos & Videos with your friends on SNS.
  • Page 6 ⑤ Reset Key ⑥Power key， light indicator ⑦Micro USB port ⑧ Optic Flow and Ultrasonic Positioning Module...

  • Page 7: Aircraft Profile

    Hold the On/Off Switch for 3 seconds. Wait until the Power Indicator starts flashing blue, then remove your finger and HG TAKE will switch on. After a few seconds, HG TAKE will make a noise alerting you that the ESC has turned on.

  • Page 8: Usage Conditions And Restrictions

    during outdoor flight, the aircraft will automatically use optic flow and ultrasonic positioning for supplement. The optic flow and ultrasonic positioning system combines dynamic image analysis to horizontally position the aircraft during flight and ultrasonic distance measurement to determine the distance from the ground. It positions the aircraft during indoor flight and assists the GPS positioning system during outdoor flight.
  • Page 9 ------------------------------------------------------------------------------------------------------------------------------------------------------- Propeller HG TAKE has 4 sets of 3-inch foldable Propellers. The propeller blades are already mounted; users only need to expand the Arms before flight. When you're done flying, fold the Arms and the blades into the base of the aircraft to prevent damaging them.

  • Page 10: Replacing The Propeller Blades

    ------------------------------------------------------------------------------------------------------------------------------------------------------- Battery The battery is designed specifically for use with HG TAKE. It has a rated capacity of 1450mAh and a nominalvoltage of 11.4V. The battery’s major characteristics are as follows: ◎Balance Charging Protection: automatic balance of the battery’s internal cell voltage to preserve the battery;...

  • Page 11: Using The Battery

    Using the Battery Please plug the battery into the battery compartment before using HG TAKE. ------------------------------------------------------------------------------------------------------------------------------------------------------- ◎Please don’t remove the batteries while the aircraft is turned on. ◎Battery overheating may affect the performance of HG TAKE. Do not use it in hot environments (over 40°C). If the app notifies you of battery overheating, please immediately initiate landing, and suspend use before it’s fully cooled down.

  • Page 12: Charging The Battery

    Charging the Battery The battery comes with a charger, an adapter, and a USB cable. Put the battery into the battery adapter, The indicator will show the current battery level. The indicator will go out automatically after 5 seconds. The indicator’s status and the corresponding battery level in percentage are as follows:...
  • Page 13 If the Charging Status Indicator turns solid green, this means the battery is fully charged. Please turn off the power source and remove the battery from the charger. The Charging Status Indicator’s status and the corresponding meanings are as follows: ------------------------------------------------------------------------------------------------------------------------------------------------------- ◎We suggest you use the provided HIGHGREAT’s HG TAKE battery...

  • Page 14: Micro-Usb Port

    HG TAKE is equipped with a high definition camera that can take 4208x3120 photos and shoot 1920x1080 videos. Micro-USB Port While HG TAKE is turned on, use the provided USB cable and adapter to connect HG TAKE to your computer. You can then copy your photos and videos onto your computer.

  • Page 15: App Profile

    This section will cover the main parts of the HG TAKE app and the settings. App Profile The HG TAKE app is specifically developed to be used with HG TAKE. Users can use HG TAKE as a remote controller for flight control and photo & video shooting.
  • Page 16 Wi-Fi connected Wi-Fi disconnected ------------------------------------------------------------------------------------------------------------------------------------------------------- ◎ If the Wi-Fi connection is lost during flight, HG TAKE will return and land if the GPS positioning is being used, or initiate landing ◎ if the optic flow and ultrasonic positioning is being used.

  • Page 17: Status Bar

    If the positioning status gets abnormal during flight, HG TAKE will start to hover until the positioning status returns to normal or user lands it. ------------------------------------------------------------------------------------------------------------------------------------------------------- 7.Status Bar The status bar will display the current status information. Different levels of status will be displayed in different colors;...

  • Page 18: Media Library

    “Motion Sensing Method” on page 27. Looking through the camera’s perspective, the swipe screen method allows you to control HG TAKE’s flight by swiping the screen in the viewfinder frame. For specifics on operation, please refer to “Swipe ScreenMethod” on page Just like the remote controller, the free sticks method allows you to control HG TAKE’s flight by holding the virtual sticks and toggling up/down/left/right.

  • Page 19: Compass Calibration

    “Japanese Operator” (right-hand throttle). Just like the remote controller too, the safe sticks method allows you to control HG TAKE’s flight by tapping on the arrows on the four directions in the virtual sticks. For specifics on operation, please refer to “SafeSticks Method”...

  • Page 20: Selecting Photos

    When you are connected to HG TAKE's Wi-Fi, it will delete the files from both HG TAKE and your mobile device. When the Wi-Fi is not connected, it will not delete the files from HG TAKE.

  • Page 21: Photo Sharing

    ---------------------------------------------------------------------------------------------------------------------------------------------------- When an Android device is connected to HG TAKE’s Wi-Fi, it will ask you to choose to delete from the mobile device or from HG TAKE. ---------------------------------------------------------------------------------------------------------------------------------------------------- Downloading &Browsing After selecting photos, tap the “Download” button in the upper right hand corner of the screen to download them to your mobile device.
  • Page 22 iOS mobile device users, please allow access to your gallery in system settings, otherwise you will only be able to download videos into a new folder and not into your gallery. ------------------------------------------------------------------------------------------------------------------------------------------------------- FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 23: Flight Environment Requirements

    Before flying please read Disclaimer and Battery Safety Instructions to understand the safety precautions. This section will cover what you need to know and how you need to prepare before flying HG TAKE, as well as details on flight and photo &video shooting operations.

  • Page 24: Flight Restrictions

    According to regulations, the surrounding areas of airports are strictly no fly zones. In no-fly zones, HG TAKE will not be able to fly while using the GPS positioning. The Aircraft Status Indicator will be slow yellow flashing. The app...
  • Page 25 ◎Do not calibrate your compass near large metal objects or in places with strong magnetic field interferences. ◎Do not place HG TAKE close to other magnetic materials and electronic devices (such as magnet, mobile phone, tablet PC and stereo equipment).

  • Page 26: Flight Protection

    In order to ensure safe use and to avoid damage, HIGHGREAT has fitted HG TAKE with multiple flight protection measures: ---------------------------------------------------------------------------------------------------------------------------------------------------- 无法显示 ◎If the battery level gets too low or a major failure occurs, HG TAKE 图像。计 算机可能 没有足够 的内存以...
  • Page 27 ------------------------------------------------------------------------------------------------------------------------------------------------------- Takeoff/Landing Takeoff Ground Takeoff : Tap it, HG TAKE will directly take off and ascend to 1.5 meters (1 m for indoors). Palm Takeoff: Please first place HG TAKE on your palm/tray, and then tap the button, the propellers will start to rotate. Wait until they fully rotate, remove your palm/tray or slightly toss it.

  • Page 28: Flight Control

    Flight Control ---------------------------------------------------------------------------------------------------------------------------------------------------- ◎During your first flight, please begin with operating on a smallscale.Pay attention to the flight direction and adjust the flight speed, slowly working towards moderate-scale operation. ◎Please don't operate on too large scale, so as to avoid accidental collision.
  • Page 29 Free Sticks Method Just like the remote controller, the free sticks method allows you to control HG TAKE's flight by holding the virtual sticks and toggling up/down/left/right. Take the American Operator mode for example: The left stick controls ascent/descent and direction (left-hand throttle); the right stick controls flying...
  • Page 30 Ascent/descent:Hold down on the left stick (the dot at the center of the left circle) and toggle up and down. Toggle and hold to continue the movement. Turn left/right:Hold down on the left stick (the dot at the center of the left circle) and toggle left and right.
  • Page 31 Safe Sticks Method Just like the remote controller too, the safe sticks method allows you to control HG TAKE’s flight by tapping on the arrows on the four directions in the virtual sticks. The operations of the safe sticks method are similar to the free sticks method.

  • Page 32: Conventional Video Recording

    Burst shot: In the burst shot mode, every time you tap the“Shutter” button,it will take a series ofburst shot photos. You can take photos using the volume buttons on your mobile device or earphones. It is the same method as using the “Shutter”...
  • Page 33 无法显示图像。计算机可能没有足够的内存以打开该图像，也可能是该图像已损坏。请重新启动计算机，然后重新打开该文件。如果仍然显示红色 ，则可能需要删除该图像，然后重新将其插 “x” 入。 ------------------------------------------------------------------------------------------------------------------------------------------------------- During the conventional video recording, you can use the motion sensing method, the swipe screen method, the free sticks method or the safe sticks method to control the flight. ------------------------------------------------------------------------------------------------------------------------------------------------------- Orbit (Only under Outdoor GPS Positioning) Orbit enables the aircraft to automatically fly and record video around a certain point (the origin) with a certain radius and at a certain altitude.
  • Page 34 How to use it: 1.Fly HG TAKE to any position (the origin). Then tap the More Features“Orbit” in the popup features listcorner of the main interface, and select. 2.In the settings interface, drag the drone icon to the blue area to set the altitude and the radius of the orbit.
  • Page 35 Target tracking enables the aircraft to automatically follow and record video on the moving target you’ve chosen. 1. Fly HG TAKE to over 5 meters above the ground. Then tap thebottom left hand corner of the main interface, and select list.
  • Page 36 The red frame will turn green, indicating the target tracking is started. When the target moves, HG TAKE will follow it. Tap the “Start EIS” button to start to record during target tracking. Tapping the “Stop EIS” button will stop recording.
  • Page 37 ------------------------------------------------------------------------------------------------------------------------------------------------------- ◎If there’re trees, utility poles, highline or other obstacles on the way of the return, HG TAKE may collide with it. Please confirm that there’re no obstacles between the current position of HG TAKE and the takeoff point.

  • Page 38: Warranty Card

    Warranty Card Purchase Information Serial No.: Purchase Date: Dealer: Telephone: Address: User Name: Telephone: Address: Maintenance Records Repair Date Fault and Repair Conditions...
  • Page 39 In need of maintenance service,please contact your dealer,or contact HIGHGREAT customer service in the following ways: E-mail: ass@hg-fly.com TEL: 400-888-9686 Wechat: HighGreat-service...
