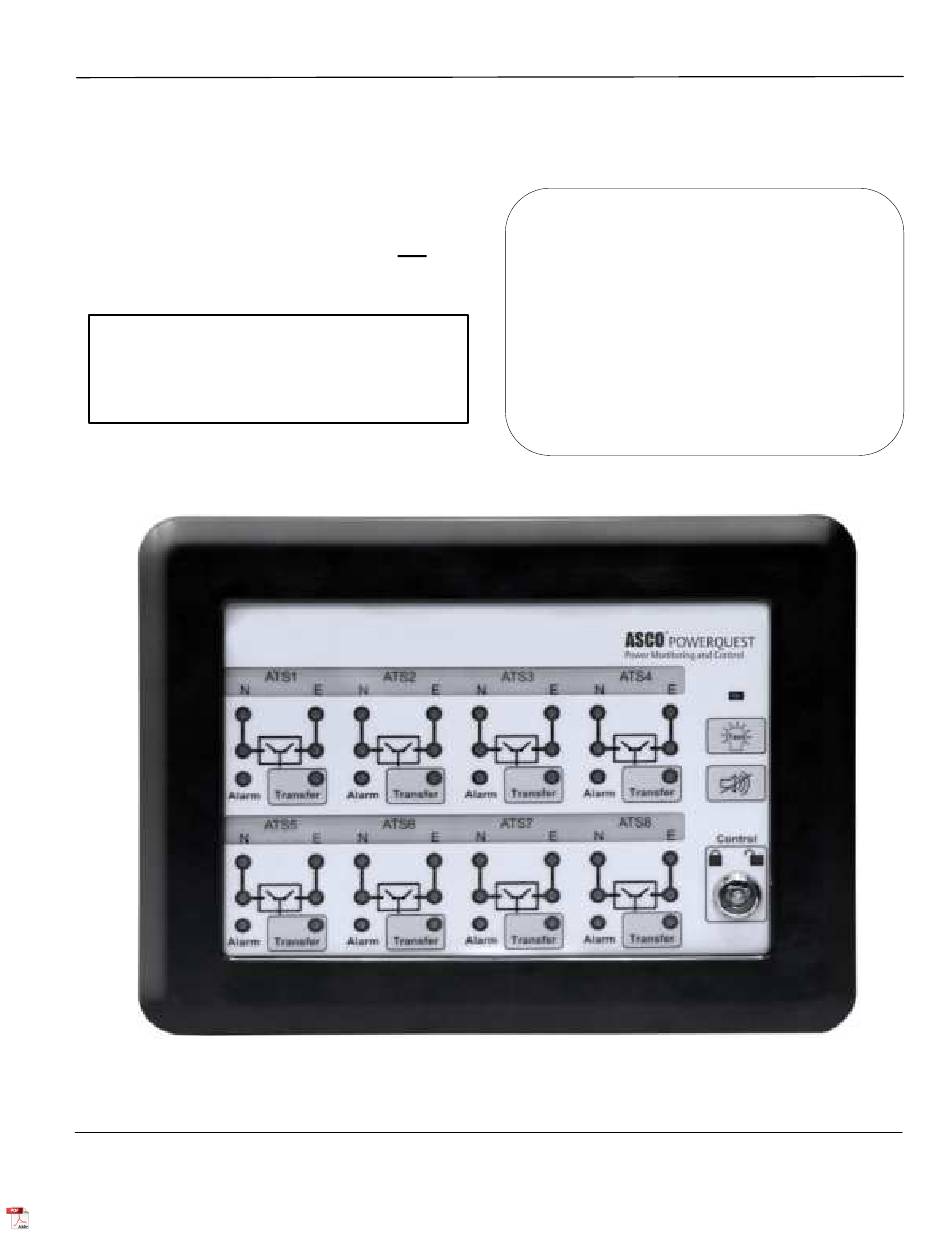

ASCO 5350
User's Guide
The ASCO Catalog 5350 ATS Remote Annunciator provides
remote visual status reporting and push-button testing of up to
eight ASCO automatic transfer switches.
This User's Guide provides operation information after the
ATS Remote Annunciator has been installed and configured.
It also includes basic troubleshooting.
Refer to Installation Manual 381333-315
for mounting, wiring, and configuration.
381333-314 A
ATS Remote Annunciator
ASCO Power Technologies
Catalog 5350

TABLE OF CONTENTS

.
.
.
.
.
User's Guide
page
2-3
2
2
2
2
3
3
4
381333-314 A
Page 1
