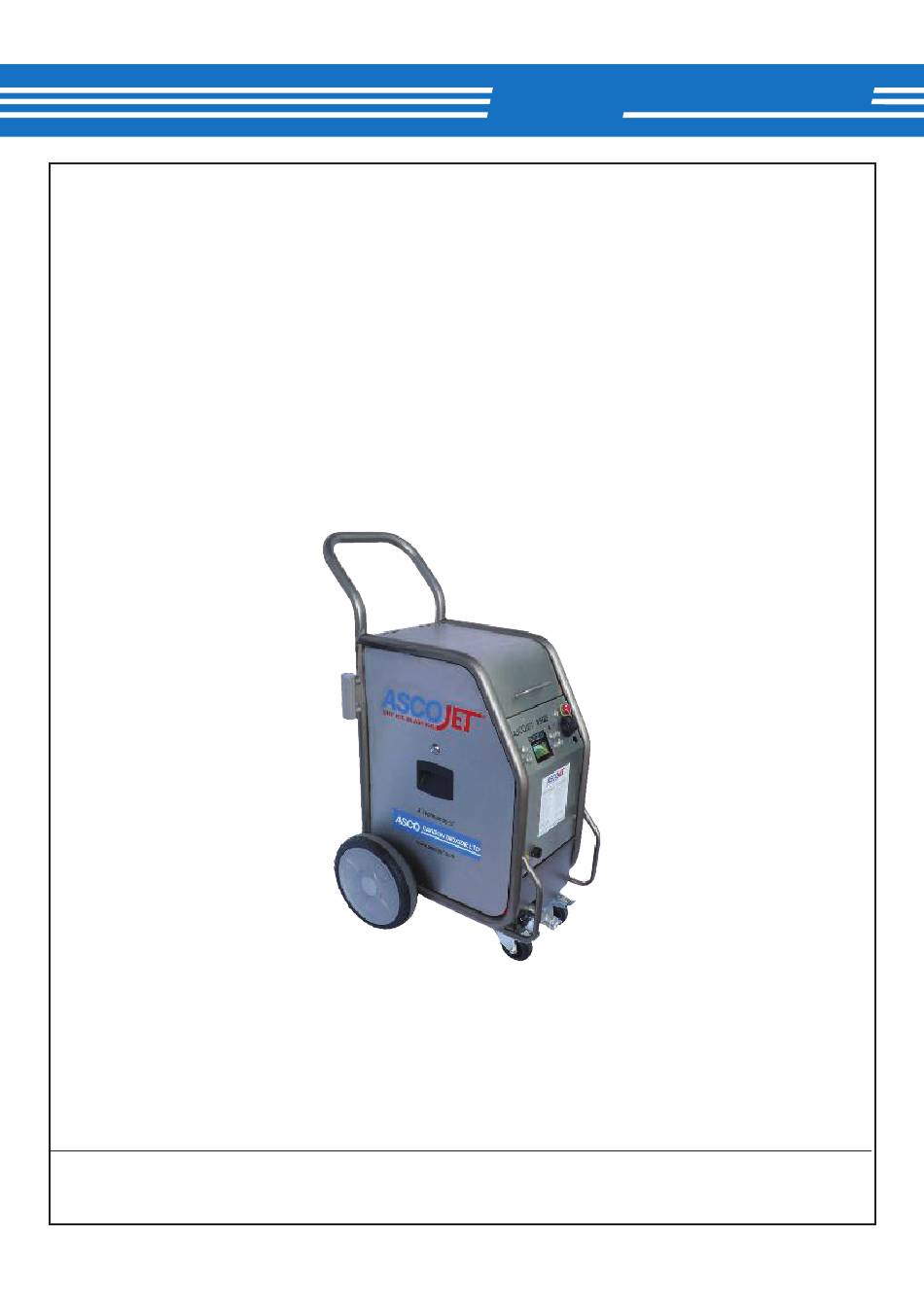

INSTRUCTION MANUAL

ORIGINAL

for

ASCOJET 1505

DRY ICE BLASTING UNIT

Version 2.4 / A.0

ASCO CARBON DIOXIDE LTD

Ofﬁ cial sales partner USA

Industriestr. 2, CH-8590 Romanshorn

GRAND NORTHERN PRODUCTS

Tel. +41 71 466 80 80 Fax + 41 71 466 80 66

Tel. + 001 616 583 50 00 Fax + 001 616 583 90 61

/www.ascoco2.com

info@ascoco2.com

sales@grandnorthern.com/www.grandnorthern.com

Table of Contents

Need help?

Do you have a question about the ASCOJET 1505 and is the answer not in the manual?

Questions and answers

Summary of Contents for Asco ASCOJET 1505

Page 1 ORIGINAL ASCOJET 1505 DRY ICE BLASTING UNIT Version 2.4 / A.0 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 3: Table Of Contents
1.9.5 Blasting precautions 1.10 Technical data TRANSPORT Transport ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel. + 001 616 583 50 00 Fax + 001 616 583 90 61 /www.ascoco2.com...
Page 4 5.5.1 After a working break of more than one year 5.5.2 After changing the installation site TROUBLESHOOTING Faults with display ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 5 XLIX Anzugsdrehmomente / Torque settings XLIX ANNEX 4 Kontakt / Contact ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 7: Thank You
CARBON DIOXIDE LTD THANK YOU! Congratulations - you have acquired an ASCO CARBON DIOXIDE LTD quality product. Please read these operating instructions carefully, especially the "safety instructions" before installing and commissioning this product. We will be happy to assist you with any questions you may have or if any clariﬁ cation is requi- red.
Page 9: Introductionv
These ASCO operating instructions will support and accompany you in the familiarisation, installation and also in the commissioning of your ASCO quality product. In addition these ope- rating instructions contain important information for the safe, seamless and efﬁ cient operation of your product.
Page 11: General Safety Notes
ﬁ rst time. Since an ASCO product is generally used in conjunction with other equipment, the following safety notes are correspondingly more comprehensive.
Page 12 Failure to heed the information can result in damage to property..indicates a possibly dangerous situation which may result in damage to pro- perty if it is not avoided. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 13 • protective clothing INTERACTING MACHINE PARTS CAUTION Many ASCO appliances are mechanically driven machines. Moving parts pre- sent a corresponding danger. The service openings as well as the side - and rear walls must always be closed during ope- ration so that moving parts cannot be reached. Please ensure that these lids are always ﬁ tted before the machine is commissioned.
Page 14 It must be ensured that all pipes are resealed again in order to prevent ingress of damp. Please ensure that your ASCO product is always installed on a level industrial ﬂ oor.
Page 15 • In addition it is recommended to ﬁ t a discharge cock/ball valve so that CO can be released when required. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 16: Co 2 Safety Notes
Sublimation temperature -78.9 °C (-110 °F) at p = 0.9807 bar Latent heat of the sublimation 573.02 kJ/kg (Enthalpy of the sublimation) ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 17 Unprotected skin can "stick" to frozen parts. DANGER OF CARBON DIOXIDE POISONING Please ensure that your ASCO quality product is always set up in a well-ventilated area. WARNING An increase in carbon dioxide concentration in the ambient air affects breathing.
Page 18 Heart and breathing defects can increase the danger of carbon dioxide poiso- ning. ASCO CARBON DIOXIDE LTD supplies appliances for continuous monitoring of the ambient air in the danger area. These display the current CO concentration and give an acoustic war- ning when the set highest concentration values are reached.
Page 19 In order to avoid the danger of injury, wearing protective clothing is obligatory. Leather gloves must be worn. Rubber gloves are not sufﬁ cient. WARNING When operating the ASCO equipment safety shoes for industrial use must al- ways be worn. CAUTION Safety glasses must always be worn when operating dry ice pelletisers.
Page 20 Inhalation Get medical assistance IMMEDIATELY. If breathing stops, give artiﬁ cial respiration IMMEDIATELY and get medical assistance. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 21: Technical Specification
Decrease the dry ice consumption Power switch Emergency-stop button Only air button ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 22: Display
Incl. blasting nozzle (Standard) Part Nr. 918013 Hose assembly for OHP2-gun (Standard) Part Nr. 919005 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 23: Various Nozzles
708.15/13 / 917514 Round nozzle 707.15/12 / 918178 Round nozzle 709.17/14 / 906381 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 24: Various Accessories
• the ASCOJET is improperly used • the ASCOJET is improperly maintained or serviced ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 25: Cleaning With Dry Ice
In case of damage due to wrong handling, all warranty claims against ASCO will be voided. It is the ASCO business policy to develop our products continuously this may lead to possible differences in equipment, speciﬁ cation, brochures or manuals.
Page 26: Cleaning Action Of Dry Ice Pellets
Cleaning is performed dry. Since the pellets sublimate immedi- ately on impact no residues of the blasting agent remain. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 27: Applications
The list does not claim to be complete, as new potential applications are conti- nuously being discovered. SAFETY INSTRUCTIONS This technical manual contains basic tips and safety instructions which are to be fol- ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 28: Identifi Cation Of Signs And Symbols In The Technical Manual
CAUTION Risk of injury due to low temperatures. Dry ice has a temperature of -110.2 °F (-79 °C). Direct contact with the skin can cause frost burns. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 29: Specifi Cations And Guidelines
Further, the operator is to make sure that the personnel completely understands the contents of this technical manual. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 30: Safety Tips
WARNING Dry ice blasting is very loud. Always wear approved hearing protection when operating the ASCOJET or when being near to the blasting unit. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 31: Handling Of Dry Ice Pellets
Therefore, always read the safety information sheet provided by your dry ice supplier thoroughly. The instructions given must be strictly observed. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 32: Cleaning Objects
(6 kg) in the opposite direction of the airﬂ ow. In order to anticipate the reactive thrust, always take a wide stance (feet approx. 23.6'' (60 cm) apart) and lean into the blasting direction. Always hold the gun safely with both hands ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 33: Technical Data
20.1 (510) Depth Inch (mm) 30.2 (768) Height Inch (mm) 43.7 (1110) Weight ASCOJET 1505 ready to operate lbs (kg) 154 (70) ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 34 ASCO ASCO CARBON DIOXIDE LTD CARBON DIOXIDE LTD NOTES ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel. + 001 616 583 50 00 Fax + 001 616 583 90 61 /www.ascoco2.com...
Page 35 • Lock the breaks of the steering rollers. • Fasten the device of the vehicle using fastening belts. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 36 ASCO ASCO CARBON DIOXIDE LTD CARBON DIOXIDE LTD NOTES ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel. + 001 616 583 50 00 Fax + 001 616 583 90 61 /www.ascoco2.com...
Page 37: Installation
(see Fig. 2). The hose can no longer be decoupled. Fig. 1 Fig. 2 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 38 Compressed air to ASCOJET pressure must not exceed 232 psi (16 bar). CAUTION Make sure that all protective devices are in function and all protective covers are mounted (see picture below). ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 39: Connecting The Ascojet
Before connecting the machine, check the hose and couplings for damage. All hose and cable connections must be checked for tightness and correct ﬁ t! ASCO shall be exempt from warranty claims for damage or system disruptions resulting from improper installation.
Page 40: Start Up
(1) and locking bar (2). Beside the standard nozzle, ﬂ at, round and angled nozzles are available as accesso- ries. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 41: Establish Main Contact
The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 42 Do not use an adapter. 1 grounded outlet 2 grounded outlet box 3 grounded pin ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 43: Operation
Risk of damaging the device. Use only dry ice pellets as blasting media. The use of any other blasting agent will lead to loss of warranty coverage. • Close the cover of the dry ice hopper. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 44: Settings
• Cordon off the working area to prevent persons coming close to the machine when it is being operated. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 45 Small objects should be ﬁ xed to be cleaned if necessary. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 46: Switch-Off In Case Of Emergency
Press emergency-stop button. The dry ice feeding is stopped and the air ﬂ ow from the nozzle is interrupted. • Interrupt the compressed air supply. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 47: Switching On After Emergency
Open the pressure relief valve slowly and wait until the condensate has been drai- ned from the device. NOTE Please dispose off condensate in an environmentally friendly manner. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 48: Statistic Functions
Increase value Decrease value Menu point to the top Menu point to the bottom ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 49: Shutting Down
Open the pressure relief valve slowly and wait until the condensate and the com- pressed air have been drained from the device. • Place the collection under the dry ice exit. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 50 • Disconnect the main plug from the socket. • Clean and roll up the grounding rope. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 51: Maintenance
• Check electrical cable and plug for damages. Get defective parts replaced by Cus- tomer Service. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 52: Every 100 Operation Hours
• Remove side panel. MAINTENANCE WORKS Replace the ﬁ lter inserted in the water separator. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 53: Tests
• Check the device to make sure that it is in a proper condition, is functioning well and has been installed properly. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 54 ASCO ASCO CARBON DIOXIDE LTD CARBON DIOXIDE LTD NOTES ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel. + 001 616 583 50 00 Fax + 001 616 583 90 61 /www.ascoco2.com...
Page 55: Troubleshooting
Check control is faulty. cable for damages. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 56 Control cable is defective. Replace the cable Operator ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 57 (616) 583-9061 E-MAIL: sales@grandnorthern.com INTERNET : www.grandnorthern.com ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel. + 001 616 583 50 00 Fax + 001 616 583 90 61 /www.ascoco2.com...
Page 58 ASCO ASCO CARBON DIOXIDE LTD CARBON DIOXIDE LTD NOTES ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel. + 001 616 583 50 00 Fax + 001 616 583 90 61 /www.ascoco2.com...
Page 59: Annex 1
ANNEX 1 XVII ERSATZTEILLISTE A.0 / SPARE PARTS LIST A.0 SEKTION A VERKLEIDUNG / SECTOR A COVERING ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 60 919056 2.1096 2.1096 Aufkleber ASCO Lable ASCO 919193 Aufkleber Bedienhinweise Lable operation note ASCO 919194 ASCO ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 61: Sektion B Rahmen / Section B Frame
CARBON DIOXIDE LTD ANNEX 1 ERSATZTEILLISTE A.0 / SPARE PARTS LIST A.0 SEKTION B RAHMEN / SECTION B FRAME ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 62 6Rd) 6kt Mutter M 5-A4-70 ISO 7042 Hexagon nut M 5-A4-70 ISO 919037 7042 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 63: Sektion C Bedienfeld / Section C Control Panel
CARBON DIOXIDE LTD ANNEX 1 ERSATZTEILLISTE A.0 / SPARE PARTS LIST A.0 SEKTION C BEDIENFELD / SECTION C CONTROL PANEL ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 64 Washer 5 -A2 ISO 7089 919090 Etikett Erdung Label Earthing 919198 Linsenschraube M 5X12 Oval head screw M 5X12 919035 Bedienfeld ASCO 1505 Control panel ASCO 1505 919199 Griff Bedinkonzept Handhold operational concept 919095 Dichtscheibe Gasket disc 919200 Zyl. Schr. M 4x10-A4-70 DIN...
Page 65: Sektion D Geräteschrank / Section D Electric Control Box
ANNEX 1 XXIII ERSATZTEILLISTE A.0 / SPARE PARTS LIST A.0 SEKTION D GERÄTESCHRANK / SECTION D ELECTRIC CONTROL BOX ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 66 919127 M16x1,5 Gegenmutter schwarz M16 Locknut black M16 919128 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel. + 001 616 583 50 00 Fax + 001 616 583 90 61 /www.ascoco2.com...
Page 67 919136 Kabelverschraubung schwarz Cable gland black M12x1,5 919137 M12x1.5 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel. + 001 616 583 50 00 Fax + 001 616 583 90 61 /www.ascoco2.com...
Page 68: Sektion E Dosiereinheit / Section E Metering Unit
ANNEX 1 XXVI ERSATZTEILLISTE A.0 / SPARE PARTS LIST A.0 SEKTION E DOSIEREINHEIT / SECTION E METERING UNIT ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 69 Pressure reducer G 1/2" 919167 Filter G 1/2" Filter G 1/2" 919168 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 70 Angle 1/8" 919209 Reduziernippel Reducing nipple 919210 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel. + 001 616 583 50 00 Fax + 001 616 583 90 61 /www.ascoco2.com...
Page 71: Sektion F Trichter / Section F Hopper
ANNEX 1 XXIX ERSATZTEILLISTE A.0 / SPARE PARTS LIST A.0 SEKTION F TRICHTER / SECTION F HOPPER ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 72 10511 Schraube M 6x30-A2-70 (In- Screw M 6x30-A2-70 (In6Rd) 919191 6Rd) ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 73: Sektion G Trockeneisstrahlpistole / Section G Dry Ice Blasting Gun
ERSATZTEILLISTE A.0 / SPARE PARTS LIST A.0 SEKTION G TROCKENEISSTRAHLPISTOLE / SECTION G DRY ICE BLASTING GUN Trockeneisstrahlpistole OHP2 / dry ice blasting gun OHP2 Art.-Nr. / Part no. 919002 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 74 Barrel nozzle 709.23/15 918013 Handgriff OHP2 komplett Handle OHP2 complete 917329 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 75: Sektion H Schlauchpaket / Section H Hose Assembly
Binder zu Schlauchpaket OHP/ Hook-and-loop fastener to hose 918198 OHS3 assembly OHP/OHS3 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 76: Sektion I Pellet-Cutter / Section I Pellet-Cutter
Control cable / meter (US) 917218 Steckdose Plug for control cable fem. 906107 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 77: Sektion J Zubehör / Section J Accessories
ANNEX 1 XXXV ERSATZTEILLISTE A.0 / SPARE PARTS LIST A.0 SEKTION J ZUBEHÖR / SECTION J ACCESSORIES ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 78 Grounding cable rewinder 919211 Hülse Kantenschutz Sleeve edge protection 919212 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel. + 001 616 583 50 00 Fax + 001 616 583 90 61 /www.ascoco2.com...
Page 79: Technische Dokumentation/Technical Documentation
ANNEX 2 XXXVII TECHNISCHE DOKUMENTATION/TECHNICAL DOCUMENTATION ELEKTROSCHEMA 1 / ELECTRICAL DIAGRAM 1 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 80: Elektroschema 2 / Electrical Diagram 2
ANNEX 2 XXXVI I I TECHNISCHE DOKUMENTATION/TECHNICAL DOCUMENTATION ELEKTROSCHEMA 2 / ELECTRICAL DIAGRAM 2 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 81: Elektroschema 3 / Electrical Diagram 3
ANNEX 2 XXXIX TECHNISCHE DOKUMENTATION/TECHNICAL DOCUMENTATION ELEKTROSCHEMA 3 / ELECTRICAL DIAGRAM 3 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 82: Elektroschema 4 / Electrical Diagram 4
CARBON DIOXIDE LTD ANNEX 2 TECHNISCHE DOKUMENTATION/TECHNICAL DOCUMENTATION ELEKTROSCHEMA 4 / ELECTRICAL DIAGRAM 4 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 83: Elektroschema 5 / Electrical Diagram 5
CARBON DIOXIDE LTD ANNEX 2 TECHNISCHE DOKUMENTATION/TECHNICAL DOCUMENTATION ELEKTROSCHEMA 5 / ELECTRICAL DIAGRAM 5 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 84: Elektroschema 6 / Electrical Diagram 6
ANNEX 2 XLII TECHNISCHE DOKUMENTATION/TECHNICAL DOCUMENTATION ELEKTROSCHEMA 6 / ELECTRICAL DIAGRAM 6 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 85: Elektroschema 7 / Electrical Diagram 7
ANNEX 2 XLIII TECHNISCHE DOKUMENTATION/TECHNICAL DOCUMENTATION ELEKTROSCHEMA 7 / ELECTRICAL DIAGRAM 7 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 86: Elektroschema 8 / Electrical Diagram 8
ANNEX 2 XLIV TECHNISCHE DOKUMENTATION/TECHNICAL DOCUMENTATION ELEKTROSCHEMA 8 / ELECTRICAL DIAGRAM 8 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 87: Elektroschema 9 / Electrical Diagram 9
CARBON DIOXIDE LTD ANNEX 2 TECHNISCHE DOKUMENTATION/TECHNICAL DOCUMENTATION ELEKTROSCHEMA 9 / ELECTRICAL DIAGRAM 9 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 88: Elektroschema 10 / Electrical Diagram 10
ANNEX 2 XLVI TECHNISCHE DOKUMENTATION/TECHNICAL DOCUMENTATION ELEKTROSCHEMA 10 / ELECTRICAL DIAGRAM 10 ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel.
Page 89: Druckluftbedarf / Compressed Air Demand
In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service Center. Please submit the proof of pur-chase, serial number and working hours. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
Page 90: Industriestr. 2, Ch-8590 Romanshorn Tel. +41 71 466 80 80 Fax + 41 71 466 80
ASCO CARBON DIOXIDE LTD CARBON DIOXIDE LTD NOTES XLVIII ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel. + 001 616 583 50 00 Fax + 001 616 583 90 61 /www.ascoco2.com...
Page 91 ANNEX 3 XLIX ANZUGSDREHMOMENTE / TORQUE SETTINGS Die Schrauben der ASCO Produkte haben keine speziellen Anzugsdrehmomente. Die Standard-Drehmomente betragen: The ASCO products do not have any special torques. The standard torques are: TYP / NIEDERKOPF / STANDARD TYPE LOW HEAD 1.1 Nm...
Page 92 ASCO ASCO CARBON DIOXIDE LTD CARBON DIOXIDE LTD NOTES ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel. +41 71 466 80 80 Fax + 41 71 466 80 66 Tel. + 001 616 583 50 00 Fax + 001 616 583 90 61 /www.ascoco2.com...
Page 93 In the framework of legal possibilities the authors and publishers do not accept any liability whatsoever for damage resulting from incorrect or incomplete information and the consequen- ces of this. ASCO CARBON DIOXIDE LTD Ofﬁ cial sales partner USA Industriestr. 2, CH-8590 Romanshorn GRAND NORTHERN PRODUCTS Tel.
