V2.0

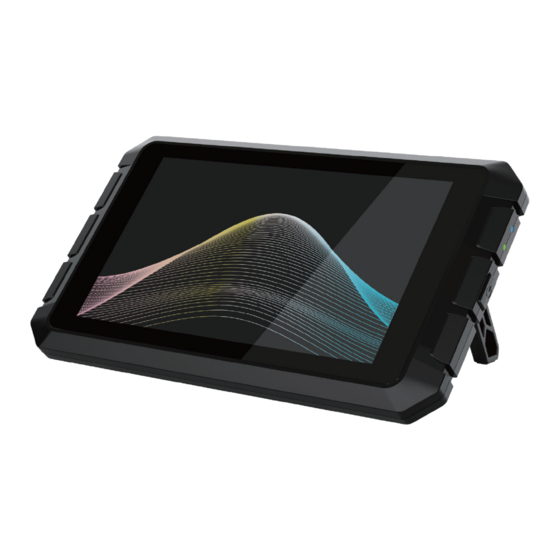

Creality Sonic Pad
User Manual
SHENZHEN CREALITY 3D TECHNOLOGY CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sonic Pad and is the answer not in the manual?

Questions and answers

Related Manuals for Creality Sonic Pad

Summary of Contents for Creality Sonic Pad

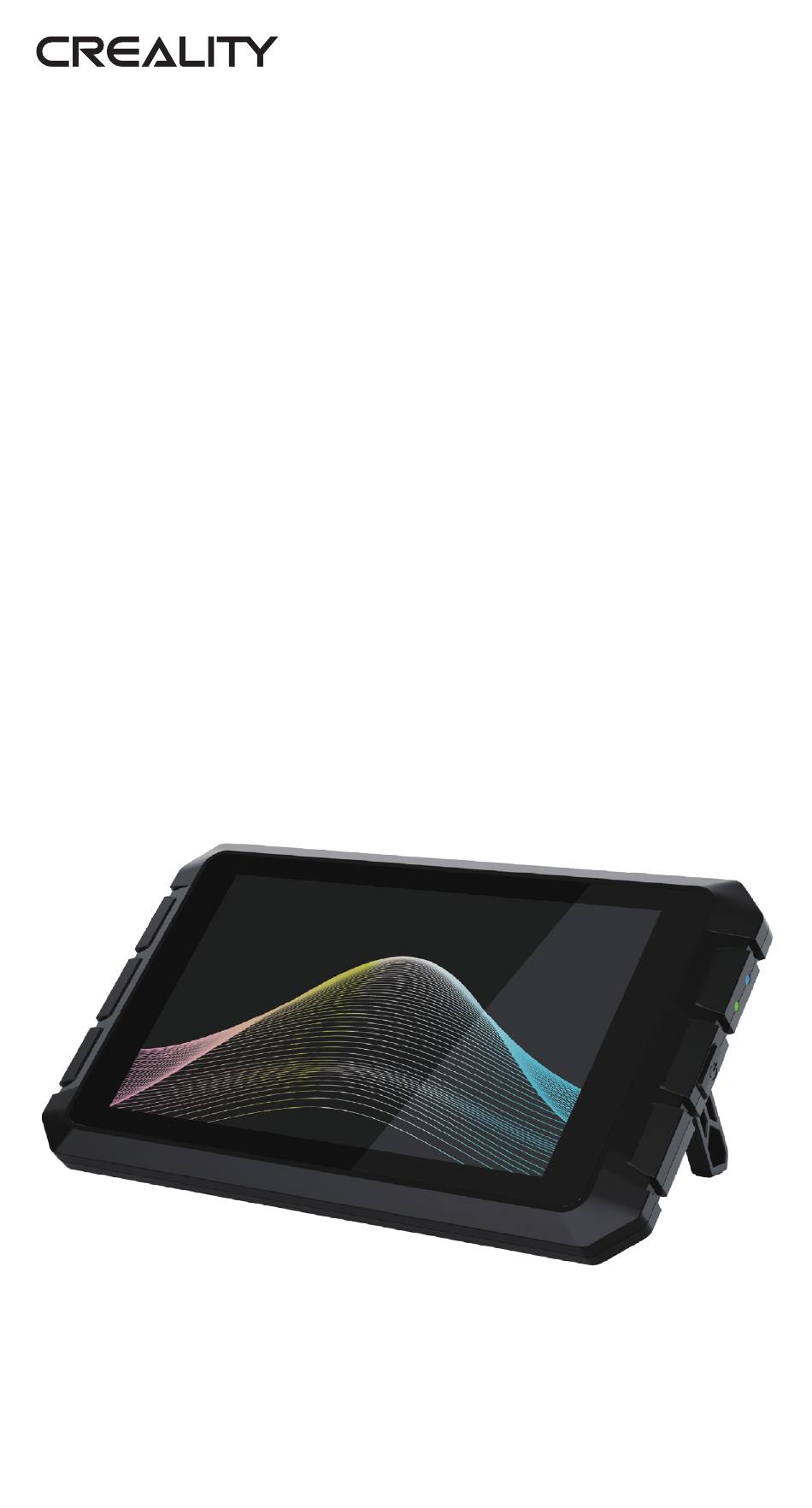

  • Page 1 V2.0 Creality Sonic Pad User Manual SHENZHEN CREALITY 3D TECHNOLOGY CO., LTD.
  • Page 2 In addition, you can visit our official website at www.creality.com to find relevant software/hardware information, contact details, opera- tion, and warranty instructions.

  • Page 3: Table Of Contents

    Catalogue 01. Product Description 02. Packing list 03. Interface and button description 04. Operation Precautions 05. First use 06. Daily use 07. System upgrade 08. Advanced options 09. Time lapse video 10. Slicing software displays previews and thumbnails 11. Adaptation of other printers 12.

  • Page 4: Product Description

    1. Product Description When the Creality Sonic Pad is connected to the FDM printer via a USB cable, it becomes the core system of the printer. Hardware Specifications T800 USB 2.0 interface Screen resolution & size 1024x600 & 7 Inch Wi-Fi protocol IEEE 802.11b/g/n...

  • Page 5: Interface And Button Description

    1. Creality Sonic Pad 2. 12V power adapter (including adapter) x1 3. G-sensor data cable x1 4. G-sensor x1 5. USB cable x1 6. USB drive x1 7. MicroUSB to MiniUSB connector x1 8. MicroUSB to Type-C connector x1 9. Instructions x1 10.

  • Page 6: Operation Precautions

    Creality will not be responsible for any violators' legal liability under any circustance. 5. First use 1. Device connection 1.1 Connect the Creality Sonic Pad to the AC110V/220V power supply using the power adapter.
  • Page 7 SENSOR 1.2 Connect the Creality Sonic Pad and 3D printer with a USB cable to your printer (Use the correct adapter if necessary). SENSOR 2. Boot Settings After the connection is completed, press the power button of the Creality Sonic Pad to enter the boot-up operation (follow the order of the guide instructions to configure the product).
  • Page 8 2.4.2 Add a network(optional) 2.4.3 The network connection is completed(optional) 2.6 Device Rename 2.5 Privacy setting, click next after reading and agree by selecting the checkbox 2.7 Printer firmware flashing 2.7.1 Select printer model(users need to open up the printer to check the mother- board chip model.
  • Page 9 2.7.3 Write the firmware to the SD/TF card, then insert the SD/TF card into the printer, click Next step. 2.7.4 After the printer is powered on, the Creality Sonic Pad will automatically connect to the printer. (the firmware in SD/TF will be automatically flashed after the printer is powered on) 2.7.5 After the printer firmware is flashed, click Restart.

  • Page 10: Daily Use

    6. Daily use 1. Print 1.1 Enter the Home page and click "Print". 1.2 Select the gcode file saved locally or in the USB drive, click on the to print the file.
  • Page 11 1.3 Enter printing interface, the printer starts to print, and the screen will display printing information such as estimated time. 1.4 Parameters can be adjusted during the printing process, the specific parameters are shown in the figure. Note: Parameter adjustment can only be performed after the printer starts printing, and cannot be adjusted during the preparation process (such as heating).
  • Page 12 1.7 Creality Sonic Pad will jump to the following interface after Emer- gency Stop, you need to manually click Restart to restore the connec- tion. 2. Slicing file management 2.1 Enter the gcode selection page and perform the following opera- tions.

  • Page 13: System Upgrade

    1.2 Click System Upgrade and follow the on-screen prompts. After the upgrade is complete, the system will restart automatically. 2. USB drive upgrade 2.1 Please go to https://www.creality.com/pages/download Ecosys- tem to download the corresponding upgrade file. Decompression it and copy to the root directory of the USB drive. After inserting the machine, an upgrade prompt will pop up automatically.
  • Page 14 2. Console Click the button to show/hide the console. 3. HOTEND PID calibration Click to enter the calibration page, set the hotend calibration tempera- ture, click to start calibration, and confirm that the calibration is com- pleted according to the prompts, the system will automatically save. 4.
  • Page 15 5. Measuring resonances Go to Other settings, Advanced options, and click Measuring resonances. 5.1 Enter the Measuring resonances page, connect and install the sensor as shown in the figure. 5.2 After connecting the sensor and installing it, click Next step to enter the detection page.
  • Page 16 5.3 Click Start test to start detection, the printer will reset to zero, and then perform automatic detection. 5.4 After the detection is completed, click Detection complete to exit the detection page. After saving the configuration, the Creality Sonic Pad will restart. 6. Automatic detection The self-test items can be freely selected.

  • Page 17: Time Lapse Video

    9. Time lapse video 1. Power off the Creality Sonic Pad before connecting the camera to the USB interface. Power it on then enter the Configure page and click the camera. 2. Go to the Camera page, click the camera icon, and check Connect camera.
