PRO FLO WASTEWATER TREATMENT SYSTEMS
For All Models: 500, 600, 800, 1000 &1500
IMPORTANT! It is important that you read and understand your System Owner's Manual. This
manual contains information you should know and procedures you should follow in order to help
ensure your new Pro Flo Aerobic System operates to its full potential. This manual also contains
safety precautions you should be aware of in order to help keep you, your family, and visitors safe.
SYSTEM OWNER'S MANUAL
System
Owner's
Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ProFlo 500
Summary of Contents for ProFlo 500
- Page 1 SYSTEM OWNER’S MANUAL PRO FLO WASTEWATER TREATMENT SYSTEMS For All Models: 500, 600, 800, 1000 &1500 IMPORTANT! It is important that you read and understand your System Owner’s Manual. This manual contains information you should know and procedures you should follow in order to help ensure your new Pro Flo Aerobic System operates to its full potential.
- Page 2 SYSTEM OWNER’S MANUAL...
- Page 3 SYSTEM OWNER’S MANUAL FOR ALL MODELS 500, 600, 800, 1000 & 1500 System Owner’s Manual Pro Flo Aerobic Systems, LP Street Address: Mailing Address: 20222 FM 362 P.O. Box 1425 Waller, Texas 77484 Waller, Texas 77484-1425 Telephone: 936-372-5222 Fax: 936-372-5235 www.profloaerobic.com...
- Page 4 SYSTEM OWNER’S MANUAL...
-
Page 5: Table Of Contents
Table of Contents INTRODUCTION ......................ii HOW YOUR NEW TREATMENT SYSTEM FUNCTIONS ..........1 PRO FLO TREATMENT SYSTEM DIAGRAM ..............2 PRO FLO 500 SL TREATMENT SYSTEM DIAGRAM............3 PRO FLO 500 SLPT TREATMENT SYSTEM DIAGRAM ..........4 PRO FLO 500 SLPT TREATMENT SYSTEM DIAGRAM .......... -
Page 6: Introduction
24- hour time frame. The Pro Flo Models 500, 600, 800, 1000, and 1500 were certified against the ANSI/NSF Standard No. 40, approved and listed by NSF International, and meet and/or exceed the criteria for a Class I system to treat both black and graywater. -
Page 7: How Your New Treatment System Functions
SYSTEM OWNER’S MANUAL How Your New Treatment System Functions The Pro Flo Wastewater Treatment System is similar to large municipality sewage treatment plants. It uses an extended aeration activated sludge process. This type of treatment depends primarily on the use of air. When air is introduced to the wastewater, it promotes the growth of aerobic bacteria and other microorganisms that break down the organic material found in regular household sewage. -
Page 8: Pro Flo Treatment System Diagram

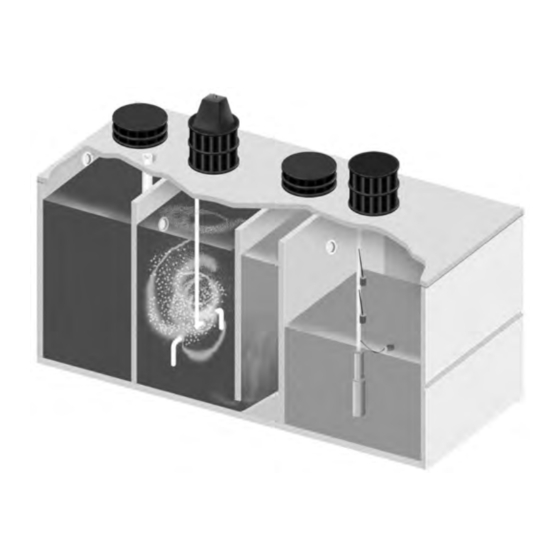

Pretreatment Access Clarifier Access Pump Tank Riser Inlet & Access Outlet Inspection Cap Pretreatment Chamber Model of: 500 SLPT 4” Pretreatment This Model has affixed Outlet Baffle 768 gallon pump tank (optional) Aeration Chamber (NOTE: SYSTEM TESTED DID NOT Air Diffuser HAVE AFFIXED PUMP TANK.) -
Page 9: Pro Flo 500 Sl
SYSTEM OWNER’S MANUAL Pro Flo 500 SL System Diagram... -
Page 10: Pro Flo 500 Slpt
SYSTEM OWNER’S MANUAL Pro Flo 500 SLPT System Diagram... -
Page 11: Pro Flo 500 Slpt
SYSTEM OWNER’S MANUAL Pro Flo 500 SLPT System Diagram... -
Page 12: Pro Flo 600 Sl Treatment System Diagram
SYSTEM OWNER’S MANUAL Pro Flo 600 SL System Diagram... -
Page 13: Pro Flo 600 Slpt Treatment System Diagram
SYSTEM OWNER’S MANUAL Pro Flo 600 SLPT System Diagram... -
Page 14: Pro Flo 800 Sl Treatment System Diagram
SYSTEM OWNER’S MANUAL Pro Flo 800 SL System Diagram... -
Page 15: Pro Flo 800 Ptsl Treatment System Diagram
SYSTEM OWNER’S MANUAL Pro Flo 800 PTSL System Diagram... -
Page 16: Pro Flo 800 Ptsl
SYSTEM OWNER’S MANUAL Pro Flo 800 PTSL System Diagram... -
Page 17: Pro Flo 1000 S Treatment System Diagram
SYSTEM OWNER’S MANUAL Pro Flo 1000 S System Diagram... -
Page 18: Pro Flo 1500 S Treatment System Diagram
SYSTEM OWNER’S MANUAL Pro Flo 1500 S System Diagram... -
Page 19: Treatment System Startup
The amount of flow the system should obtain per day is as follows: Size Safe Zone 500 Gallons Per Day 350 - 500 Gallons Per Day 600 Gallons Per Day 450 - 600 Gallons Per Day 800 Gallons Per Day... - Page 20 SYSTEM OWNER’S MANUAL Note You will need to monitor your frequency of washing clothes and dishes as this could complicate the treatment process if most of the wastewater from your house is graywater. Graywater does not contain enough organic material to help the treatment process.
-
Page 21: Items That Are Safe To Use In Your New System
SYSTEM OWNER’S MANUAL Items That Are Safe to Use in Y our New System Think of your new Pro Flo system as a way for bacteria to live. This means anything you use in your home could affect the performance of the system. - Page 22 SYSTEM OWNER’S MANUAL Do not put chemicals that have high volumes of bacteria killing agents into your system. Do not put commercial, industrial, or chemical waste into your system. Do not allow any discharge, backwash, and/or exhaust from any type of water softener to enter the system. Do not allow surface water to pond around the system.
-
Page 23: The Aerator
The aerator is located under the aerator cover on top of the system (location may vary). The amperage draw of each aerator depends on the model. A linear 500 g.p.d. & 600 g.p.d. (gallons per day) aerator draws about 1.6 amps and the linear 800 g.p.d. and 1000 g.p.d. -
Page 24: The Control Panel
SYSTEM OWNER’S MANUAL The Control Panel Each Pro Flo Wastewater Treatment System has its own control panel. This panel is located under the aerator cover on top of the system (location may vary). This control panel is equipped with a complete “Systems Malfunction”... -
Page 25: Your Responsibilities
SYSTEM OWNER’S MANUAL Your Responsibilities WARNING! It is the sole responsibility of the owner to understand, observe, and follow any and all safety rules and requirements pertaining to the entire electrical system, aerator operation, and system discharge concerning the owner, their families, friends, or guests. There are a few procedures that you will need to follow in order for your new Pro Flo Wastewater Treatment System to work to its full potential. -
Page 26: Detecting Malfunctions Or Problems
SYSTEM OWNER’S MANUAL Detecting Malfunctions or Problems If you notice the alarm sounding, call your installer or service provider for assistance. The only thing the alarm system does not detect on its own is the actual treating of the wastewater. If you experience odor problems or notice the system is not producing the normal high quality treated output (effluent), call your installer or ser vice provider. -
Page 27: Warranties
SYSTEM OWNER’S MANUAL Note In some states it is a requirement for you to have a continual service contract with a licensed service provider who is authorized to service the Pro Flo Wastewater Treatment System. If you notice that you are not receiving the proper service inspections from your installer or service provider, please do not hesitate to contact the home office of Pro Flo Aerobic Systems, LP at 936-372-5222. - Page 28 SYSTEM OWNER’S MANUAL PRO FLO AEROBIC SYSTEMS, LP LIMITED TWO YEAR WARRANTY Pro Flo Aerobic Systems, LP warrants the parts in each treatment process/system to be free from defects in material and workmanship for a period of two years from the date of installation treating residential wastewater.
-
Page 29: Sources For Obtaining Replacement Parts Or Components
P.O. Box 1425, Waller, TX 77484-1425. Telephone No. 936-372-5222. General Information You have the Pro Flo: 500 gallon per day wastewater treatment system 600 gallon per day wastewater treatment system 800 gallon per day wastewater treatment system 1000 gallon per day wastewater treatment system... -
Page 30: Notes
SYSTEM OWNER’S MANUAL NOTES ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________... - Page 31 SYSTEM OWNER’S MANUAL Cut here Please fill out and return to the following address within 60 days of installation. Pro Flo Aerobic Systems, L P Attn: Pro Flo Warranty Dept. P.O. Box 1425 Waller, TX 77484-1425 Name ________________________________________________ Address ______________________________________________ City _______________________ State _______ Zip ___________ Phone Number _________________________________________ Name of installer _______________________________________...
