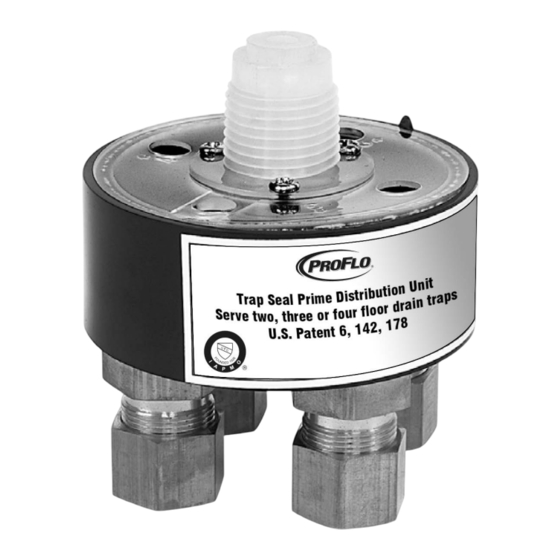

ProFlo PFTPDUU Installation Instructions

PFTPDUU
Trap Primer Distribution Unit
Installation Instructions
Installation Instructions
Thread the 1/2" male top threaded connection of the trap primer distribution unit into the
underside of the trap primer. The PROFLO trap primer distribution unit is engineered to
receive a metered amount of water from a trap seal primer and distribute the water equally
to either two, three or four floor drain traps. The lid of the distribution unit has numbers "2",
"3" and "4" marked on it. The body of the distribution unit has a guidemarker on top of the
body and is divided into four equal sections. The numbers and the guide marker are
positioned by removing the three screws in the lid of the unit and rotating the lid to match
the appropriate numbers with the guide marker to provide priming for the desired number
of drains. Do not over-torque the three lid screws when securing the lid back to the body.
It is not necessary to install the distribution unit perfectly level. The unique design will
distribute water uniformly when out of level up to 5 degrees.
Inspection Instructions
After installing the distribution unit to the underside of the trap primer, look through the
plastic top lid of the distribution unit to verify that water is in the desired sections of the
distribution unit body.
Maintenance Instructions
Must be installed with access for periodic inspection. Inspect the distribution unit through
the plastic top lid to ensure that there is no debris clogging the drain holes from each of
the four body sections selected to drain water to the floor drain traps. If there is debris
clogging the distribution unit, disconnect the unit from the trap seal primer, remove the
three screws in the lid and clean out the debris.
3.21"
Warranty and Codes
This PROFLO product carries a 1-year
limited warranty.
Assembled in U.S.A.
© 2018 Ferguson Enterprises, Inc. All Rights Reserved
CALIFORNIA PROPOSITION 65 WARNING. This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
PFTPDUU
The wetted surface contacted by
consumable water contains less than
one quarter of one percent (0.25%)
of lead by weight.
Call 1-833-334-9929 for assistance
Distributed Exclusively by Ferguson and Wolseley Canada

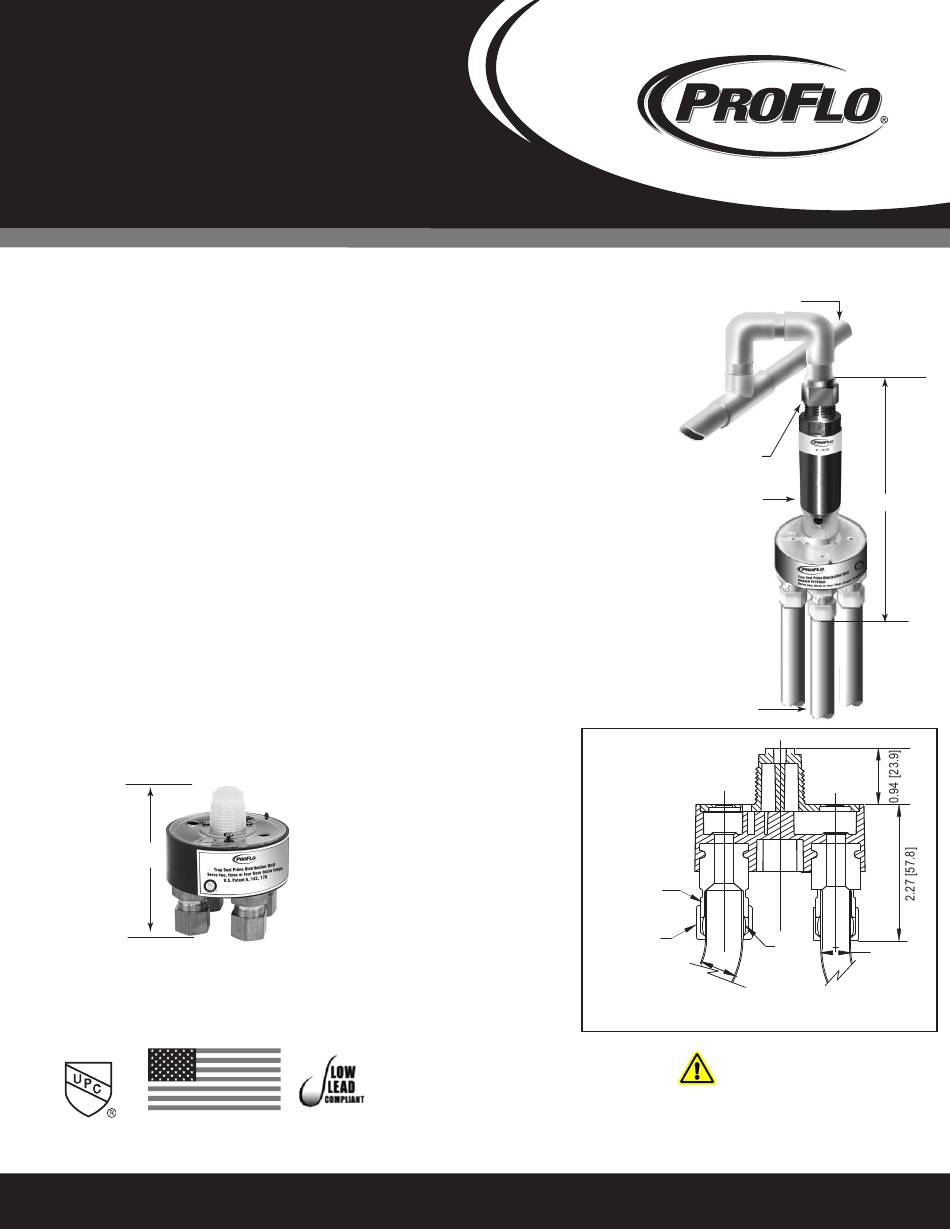

Water Supply Line and
Fittings (by others)
Union Connection
PFTPR500 Pressure
Drop Activated
Trap Seal Primer
(Specify PFTPR500,
PFTP1500, PFTP2500)
(by others)
Cross Section View
Connector
Locking Nut
Ferrule
OD 0.625 [15.9]
For 1/2" hard copper tubing - 5/8" O.D.
CALIFORNIA PROPOSITION 65 WARNING
WARNING: This product can expose you to
chemicals including Pb, Formaldehyde, Carbon Black,
TNT, Acrylonitrile, Butadiene which are known to the
State of California to cause cancer, and birth defects or
other reproductive harm. For more information go to
www. P65Warnings.ca.gov.
6-7/8"
PFTPDUU
OD 0.5 [12.77]
7968 01/18
