NuAire EcoSmart Connect Control Operation Manual

1.0 CONTROLS
The system incorporates a preconfigured BACnet MS/TP enabled
controller.

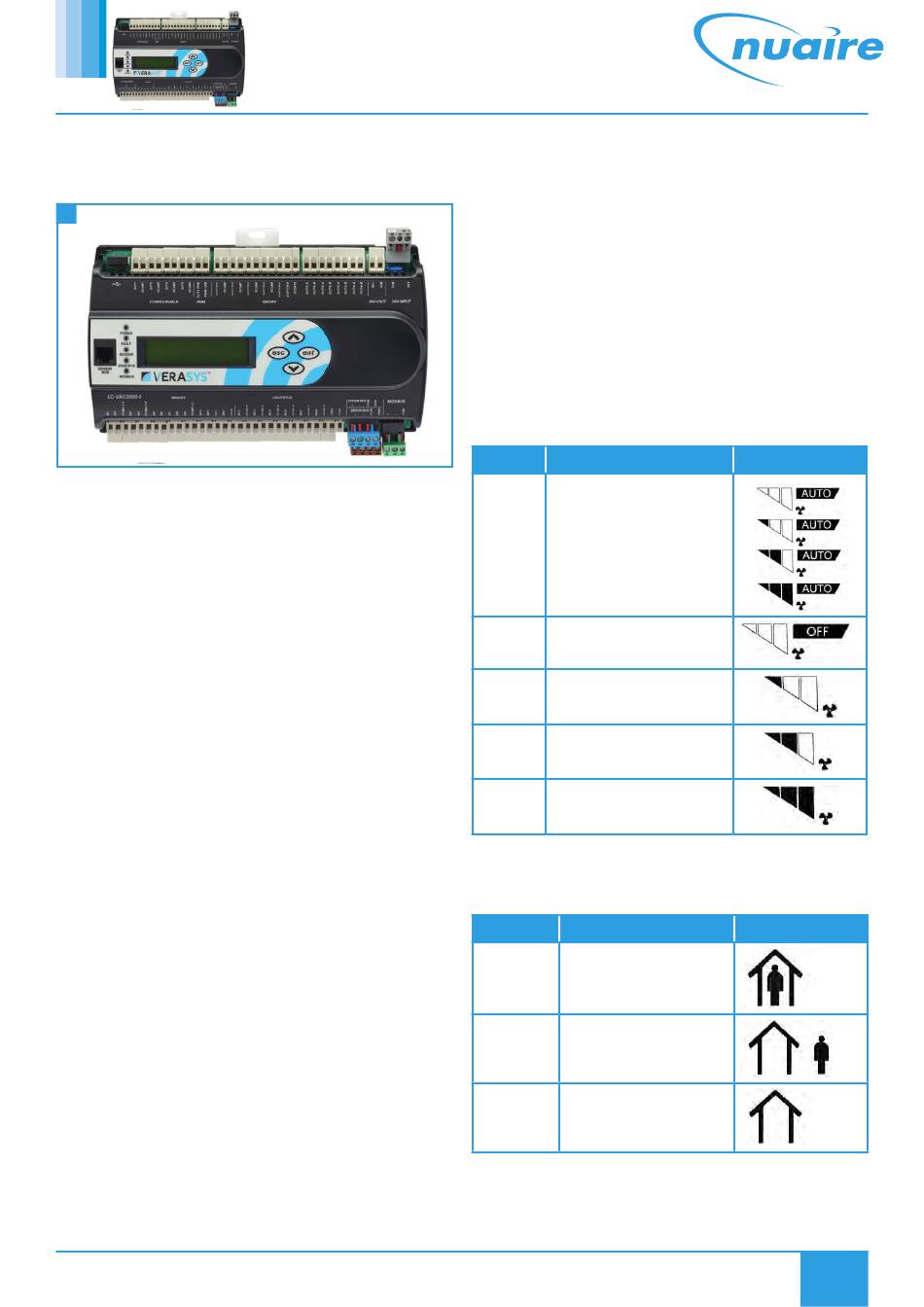

1
Connect Controller
1.1 Controllable Items
•Supply Fan
•Extract Fan
•Heat Recovery Bypass Damper (if applicable).
•Thermal Wheel (if applicable).
•Heating Coil (if fitted).
•Cooling Coil (if fitted).
•DX coil (If fitted).
•Inlet Damper (If fitted).
•Exhaust Damper (If fitted).
•Recirculation damper (If fitted).
1.2 Enable Signal
The unit can be enabled via the following methods:
•Software switch (ENABLE) via local display or network.
•Volt free input contacts.
•Night Cooling / Summer free-cooling strategy.
•Scheduled via weekly calendar (Schedules are accessed and
adjusted via the ESCO-LCD or the MAP gateway device).
•Fan speed override.
•Room module PIR sensor.
•Room module 3-fan speed button (While in low, med or high
state).
When the enable signal is removed, the unit will run on for a time
defined by the run-on setpoint.
If auto run-on is enabled, the unit will measure each enable period and
set a dynamic run-on time proportionally to this value. Auto Run-on
Scale Factor" and limited by the input "Auto Run-on Max Time.
1.3 Occupancy Control
Ecosmart Connect control allows the connection of multiple
Room Modules which are automatically detected and connect to
the controller via a SA (Sensor Actuator) MS/TP bus. See Network
Accessory section for more connection details.
Nuaire | Western Industrial Estate | Caerphilly | CF83 1NA | nuaire.co.uk
EcoSmart Connect Control
Operation Manual
1.3.1 PIR Room Sensor
When a Room Module PIR sensor is connected via the SA bus, the
control will automatically use this as an enable signal by default. There
is a non-adjustable minimum run-on time of 15mins for Room Module
PIR's. This is in addition to any software run-on times.
1.3.2 RM 3-Speed Fan Override (ESCO-TDFS Only)
When a RM fan speed override is available it will override fan speed
functions. This function overrides any run-on time (except for electric
heater heat dissipation). While in override mode, the unit will ignore
return air temperature and set the supply air to the setpoint. Multiple
fan override sensors are supported with the highest demand taking
priority. Whenever a fan-speed override Room Module is connected,
the display will automatically show the fan speed status at all times.
A timeout can be set for the fan mode to revert back to auto after a
predetermined time period. The setting Fan Override Operation and Fan
Override Timeout can be adjusted to achieve this.
Mode Operation
"Auto" The Controller will ignore the
fan speed override. Current Fan
speed will still be displayed.
"Off" The controller will override all
functions and stop the fans.
"Low" The fans run at low speed.
"Medium" The fans run at medium speed.
"High" The fans run at high speed.
1.3.3 RM Occupancy Display
If an RM sensor with occupancy display is connected, it will
automatically display the occupancy state as follows.
State Description
Occupied An enable signal is present
i.e. Fans are running.
Unoccupied No enable & no trickle
i.e. Fans are stopped.
Standby No enable signal but fans are
trickling.
15. 02. 22. Document Number 672040
Display
RM Display
